S7-300 Automation System, Hardware and Installation: CPU 31xC and CPU 31x
6-10 A5E00105492-03
,QVHUWLQJVORWQXPEHUV
1. Hold the corresponding slot number in front of the relevant module.
2. Insert the pin into the opening on the module (1).
3. Press the slot number into the module (2). The slot number breaks off from the
wheel.

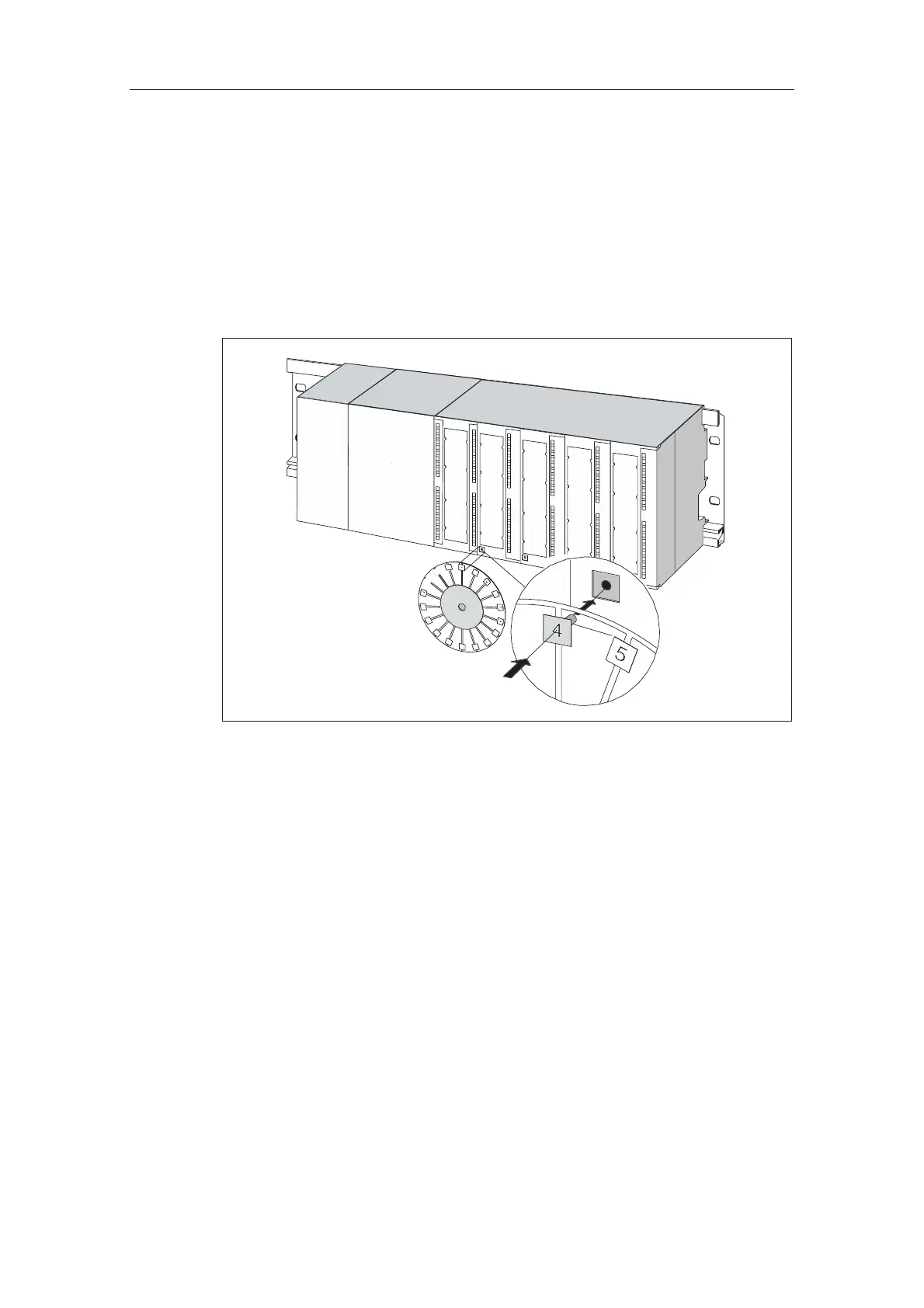

The figure below illustrates this procedure. The slot number labels are included
with the CPU.
1
2
CPU
PS
Figure 6-3 Inserting slot numbers in modules
