Installing
3.3 Terminal strips on CU240B-2 Control Units
CU240B-2 and CU240E-2 Control Units
12 Compact Operating Instructions, 04/2015, A5E35792002B AA
Control Units with PROFIBUS interface
The function of the fieldbus interface and digital inputs DI 0, DI 1 depends on DI 3.
--- No function.
DO 0: p0730
AO 0: p0771[0]
DI x: r0722.x
Speed setpoint (main setpoint): p1070[0] = 2050[1]

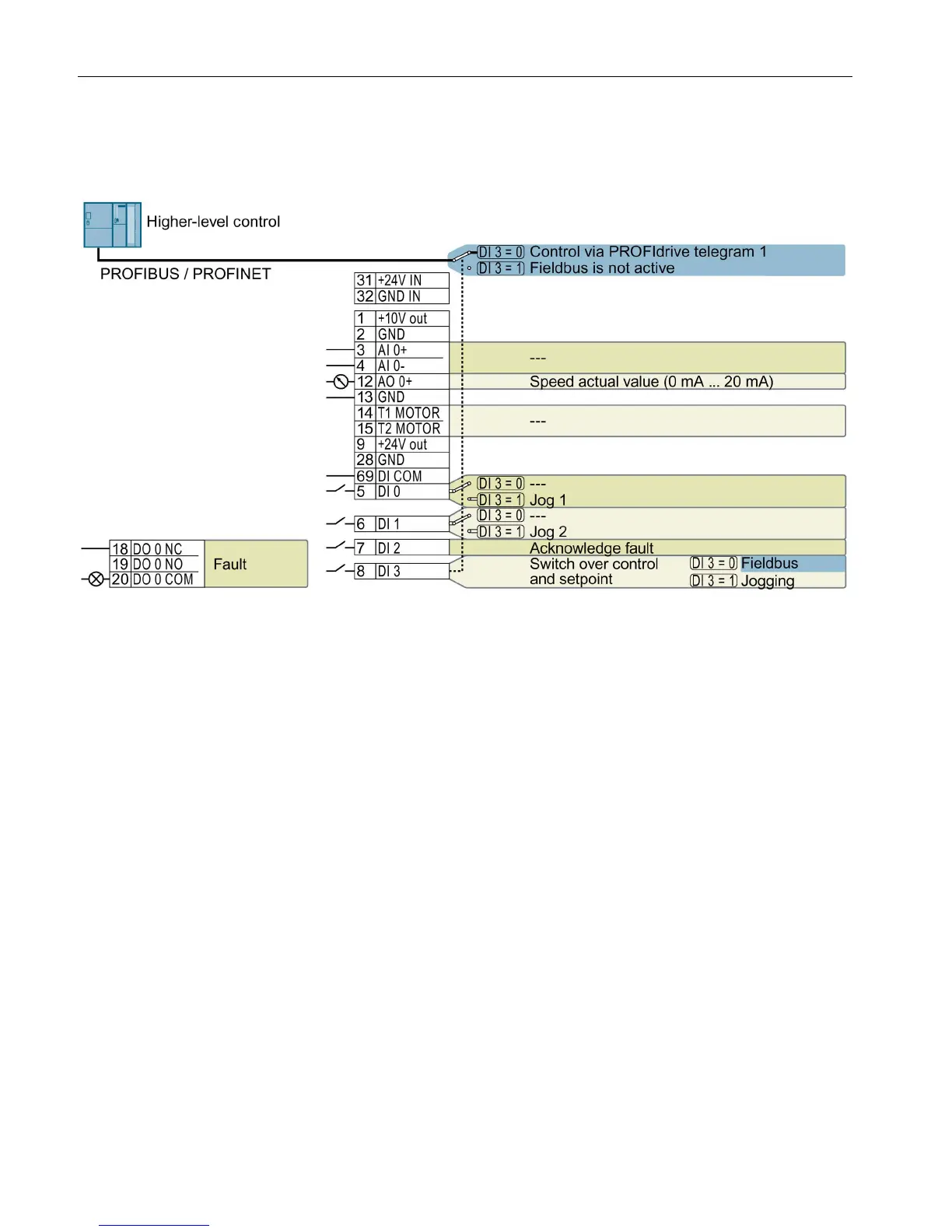

Figure 3-3 Factory setting of the CU240B-2 DP and CU240B-2 PN Control Units
Changing the function of the terminals
The function of the terminals marked in color in the two figures above, can be set.
In order that you do not have to successively change terminal for terminal, several terminals
can be jointly set using default settings ("p0015 Macro drive unit").
The terminal settings made in the factory described above correspond to the following
default settings:
● Default setting 12 (p0015 = 12): "Standard I/O with analog setpoint"
● Default setting 7 (p0015 = 7): "Fieldbus with data set switchover"
Further default settings can be found in the Operating Instructions, see also: Manuals for
your inverter (Page 31).

Siemens CU240E-2 Specifications

General

Digital Inputs	6
Digital Outputs	3
Analog Inputs	2
Protection Class	IP20
Output Frequency	0 - 650 Hz
Protection Features	Overvoltage, undervoltage, overcurrent, short circuit, overtemperature
Control Mode	Vector control, U/f control
Ambient Temperature	0 - 50 °C
