Siemens Extractor hood Instructions For Installation And Use

9

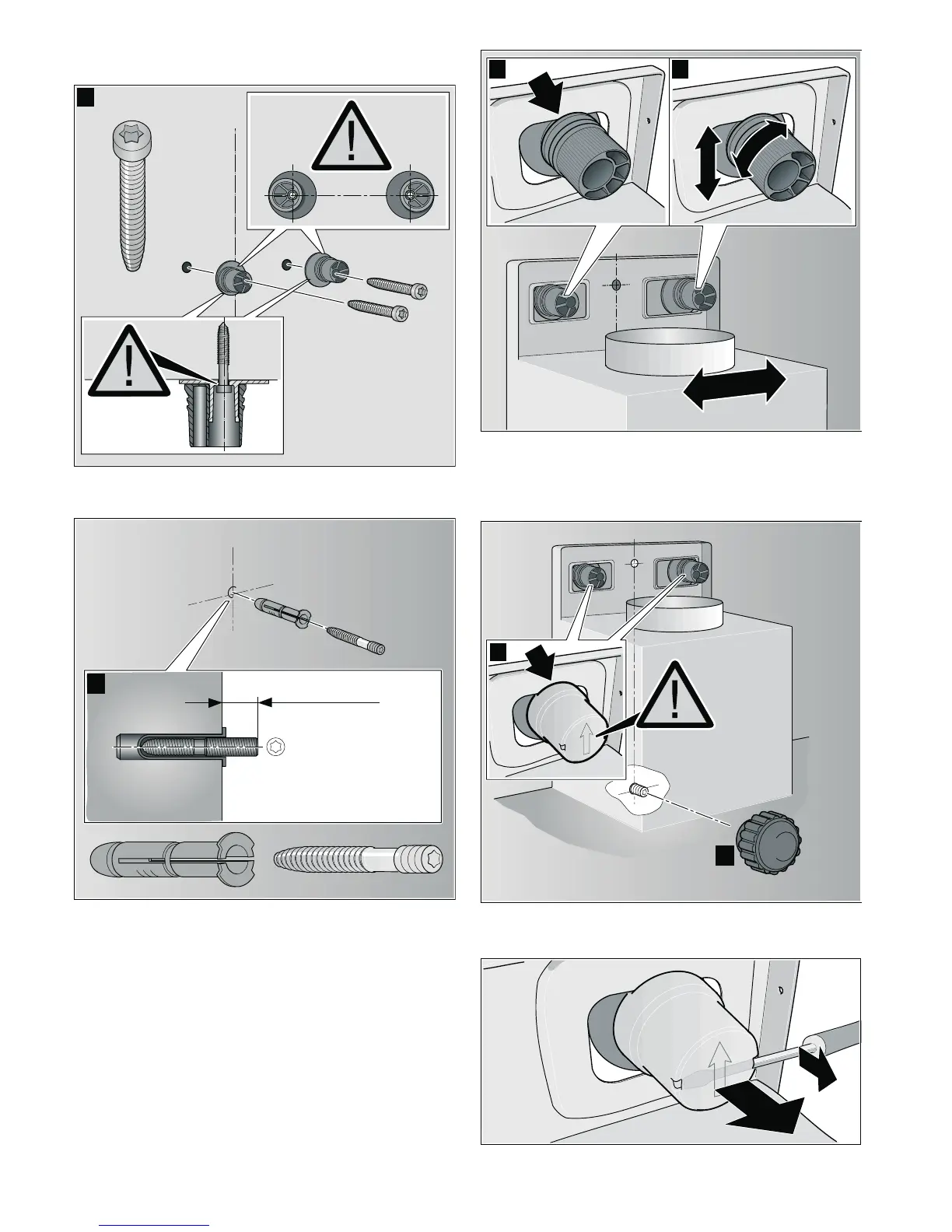

2. Screw on brackets for the extractor hood hand-tight,
max. 3Nm.
©
3. Screw in threaded pin, leaving it protruding out of the wall
by 5–9 mm.
ª
Attaching and aligning the appliance
1. Initially remove the protective foil from the back
of the appliance and, following installation, remove foil
completely.
2. When attaching the appliance, ensure that it engages firmly
with the brackets. «
3. Align the appliance horizontally by turning the brackets.
If required, the appliance can be moved to the right or left. ¬
Securing the appliance
1. Press the safety caps with the arrow upwards onto
the brackets until they engage. ®
2. Screw on knurled nut and washer firmly. ¯
Removing safety caps
If the safety caps have to be removed, use a flat screwdriver.
[
%
NJONN
NBYNN
&
'
(
)
*
