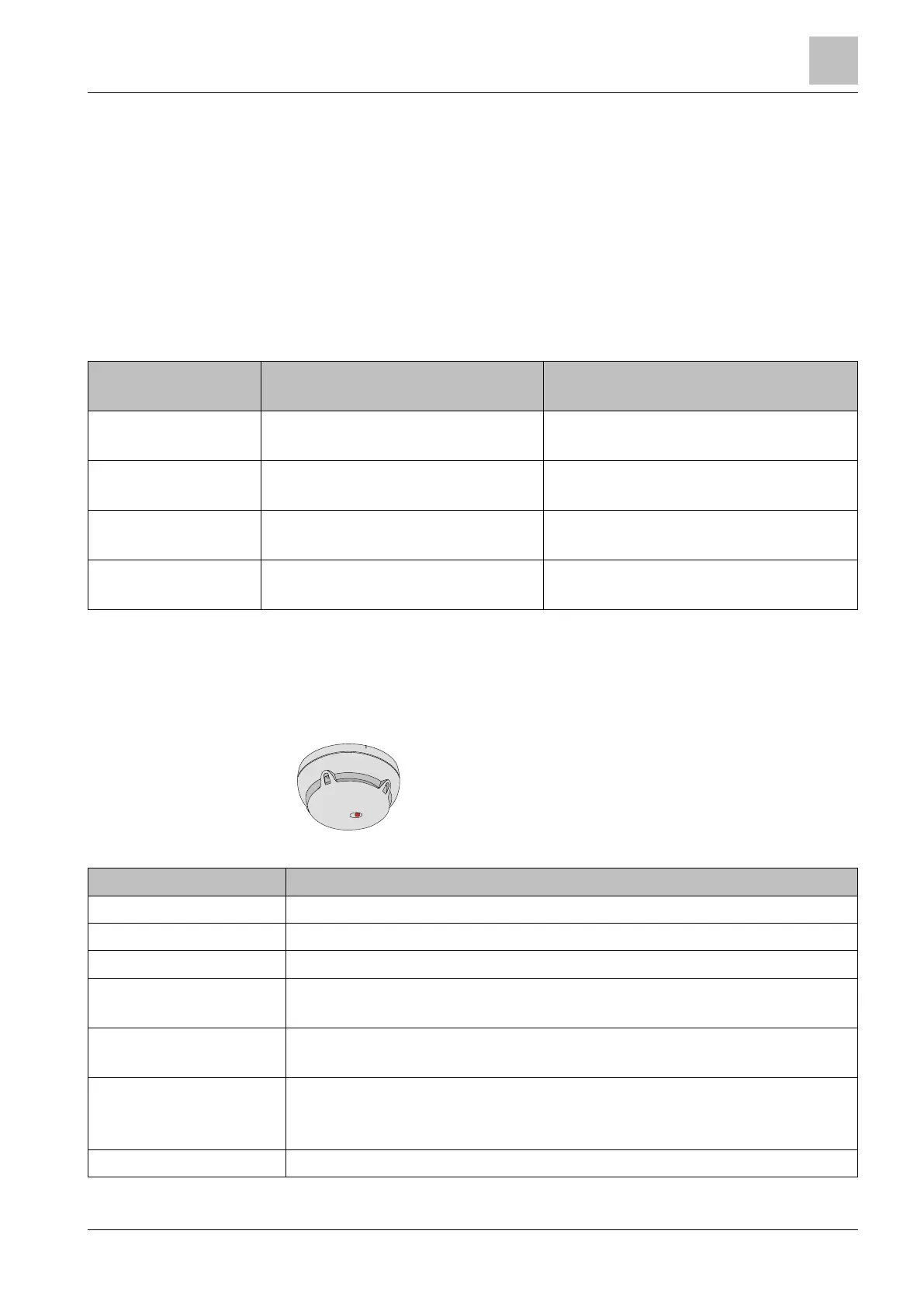

3 Structure and function
3.1 Overview
In this document the following point detectors are referred to collectively using the
term 'Automatic fire detectors':
● Neural fire detectors FDOOT221, FDOOT241-x/-Ax
● Wide-spectrum smoke detector FDO2x1
● Heat detector FDT2x1
The same detectors may have different names, depending on the document type:
Type
Designation 1
(e.g. in technical documentation etc.)
Designation 2
(e.g. in data sheets etc.)
FDOOT221
Neural fire detector Multi-sensor smoke detector
Neural DA
FDOOT241-x/-Ax
Neural fire detector Multi-sensor smoke detector
Neural ASA
FDO221
Wide-spectrum smoke detector Smoke detector
FDnet broadband DA
FDO241
Wide-spectrum smoke detector Smoke detector
FDnet broadband ASA
3.1.1 Detectors with ASAtechnology (S-LINE)
Neural fire detector
● Can be set as neural fire detector, wide-spectrum smoke detector or
heat detector on the part of the software
● Selectable detection behavior thanks to application-specific ASA
parameter sets
● The complete number of parameter sets is only available when
operating on the FDnet
Type
Use
FDOOT241-8
Can be used either addressed in MS8/PMT or in FDnet
FDOOT241-9
Can be used collectively or addressed in the FDnet
FDOOT241-A
Can be used addressed on the FDnet
FDOOT241-A3
Can be used addressed in AnalogPLUS or FDnet
Replaces existing fire detectors DO1131A/DOT1131A/DT1131A/DT1132A
FDOOT241-A4
Can be used addressed in SIGMALOOP or FDnet
Replaces existing fire detectors SDF1200/SDF2200/SDF3100/SDT2100
FDOOT241-A5
Can be used addressed in interactive FDnet
Replaces existing fire detectors
DOT1151A, DOT1152A, DO1151A, DO1152A, DO1153A, DT1152A
FDOOT241-A9
Can be used collectively or addressed in the FDnet
