4BMounting / Installation
38BBase attachment wet FDB295
5
82
| 138
Building Technologies
007004_t_en_--
Fire Safety
2015-11-04

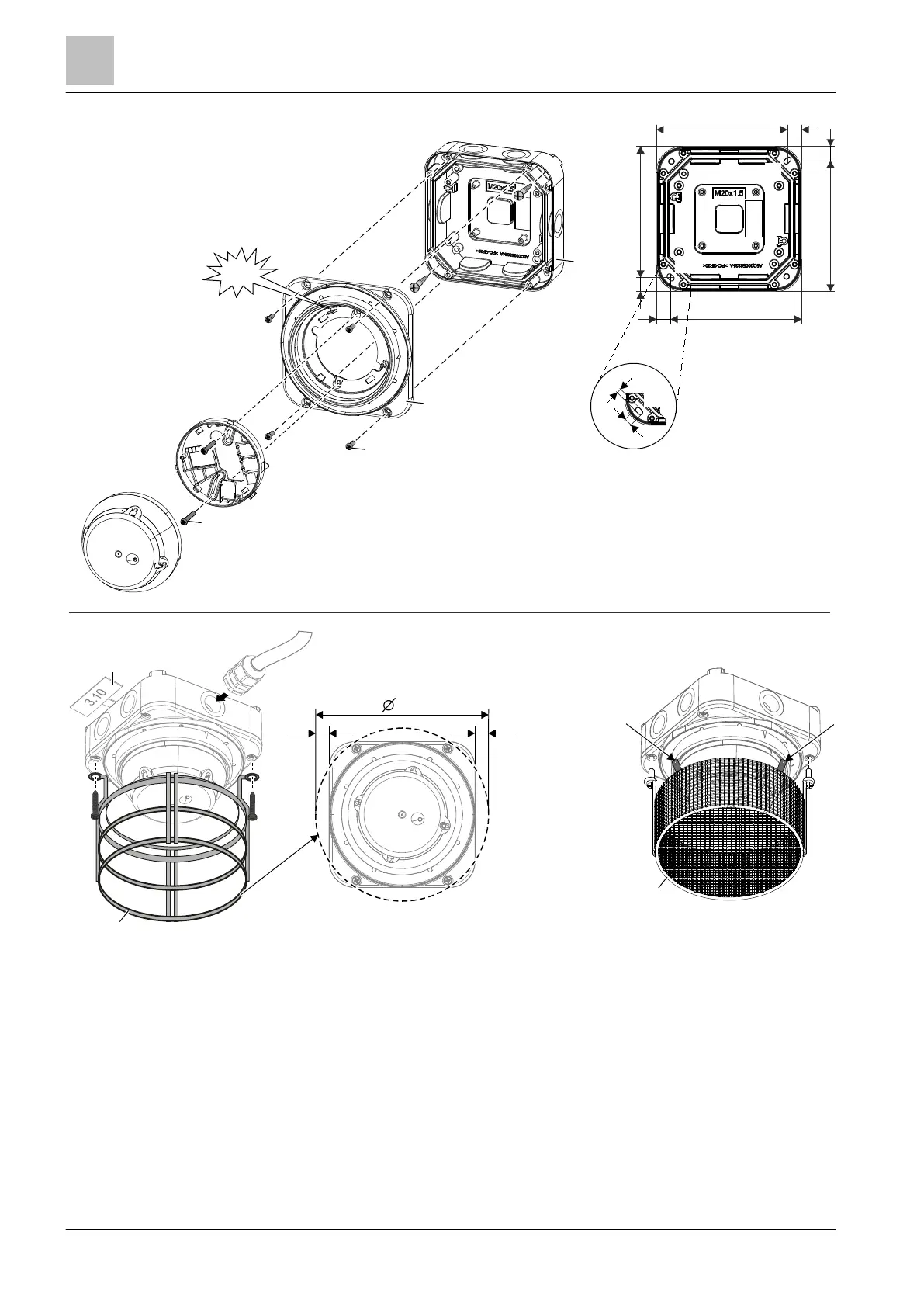

Mounting and removal of base adapter FDB241 on detector base
Fig. 1
Mounting of base attachment wet FDB295
● Mounting on substructure (2 screws)
● Mounting of cover (4 screws)
● Mounting of detector base (2 screws)
Fig. 2
Master gauge for recesses
Fig. 3
Mounting of protective cage DBZ1194, M20 x 1.5 metal cable gland, DBZ1193A
designation plate
Fig. 4
Mounting of EMC-protective cage FDBZ294
122
122 13
13
122
12213
13
160
13 13
Fig. 1
Fig. 2
Fig. 3
Fig. 4
A
A
Click
FDB221
FDB222
1x
4x
2x
1x
DBZ1193A
DBZ1194
FDBZ294
Click
4
.
5
7
.5
A
