Siemens FS720 Series User Manual

8
Building Technologies
Fire Safety
A6V10207176_h_en_--
2016-05-23

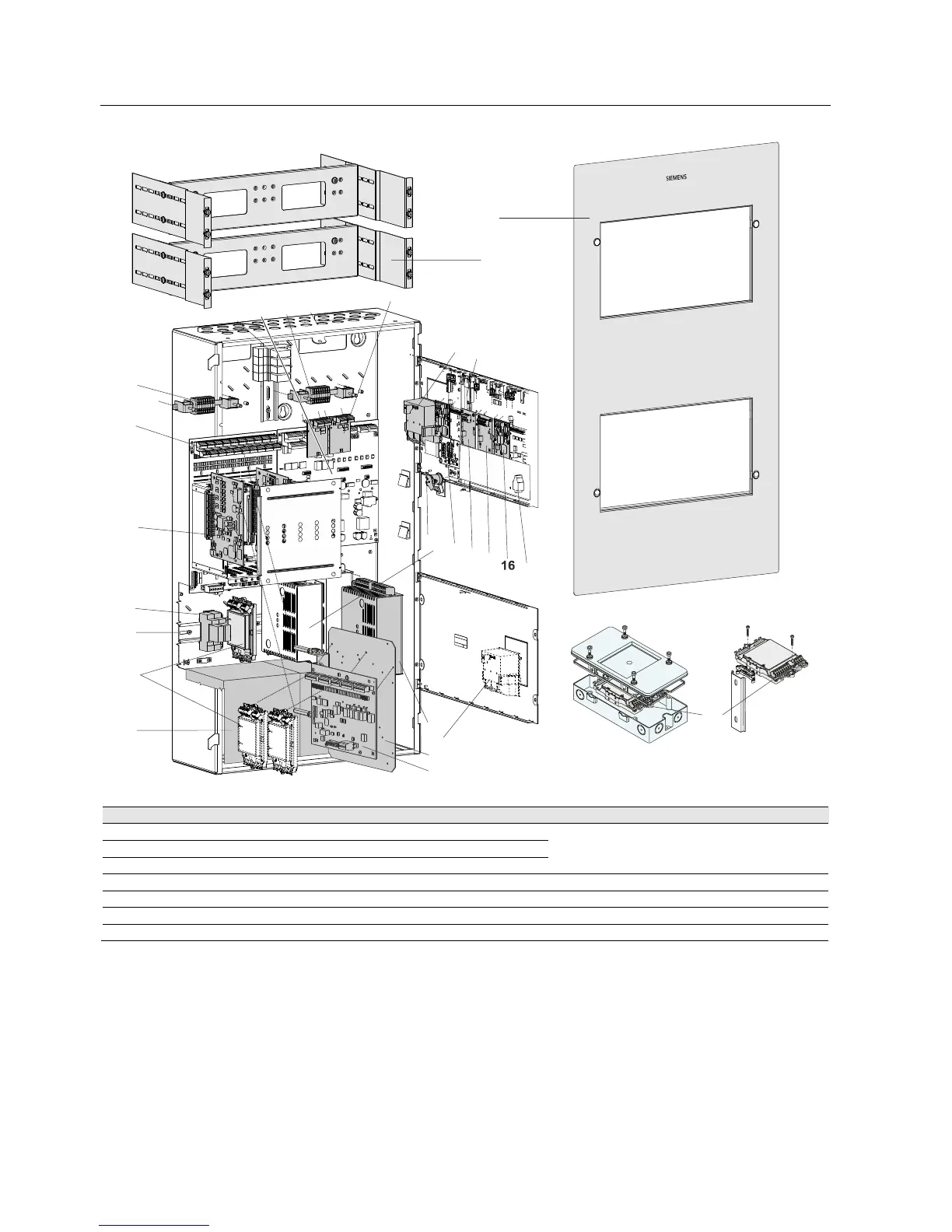

Layout of FC724 inside housing (Comfort)
9
11
24
5
9
3
10
16
14
15
22
12
1
25
23
2
4
7
19
23
18
6
17
21
8
20
13
26
Basic equipment
Designation
Comment
1
Housing (Comfort) FH7203-Z3 Items 1-6: Basic equipment
2
Periphery board (2-loop) FCI2002-A1
3
Power supply (SV 24V-150 W) V24230-Z6-A5
4
Mains terminals on TS35 DIN rail – Space for socket, relay modules
5
Operating unit FCM72xx-xx Operating unit with CPU
6
Card cage (2 slots) FCA2008-A1 For two module bus cards
7
Space for batteries – 2x 12 V / 17…26 Ah

Siemens FS720 Series Specifications

General

Brand	Siemens
Model	FS720 Series
Category	Control Panel
Language	English
