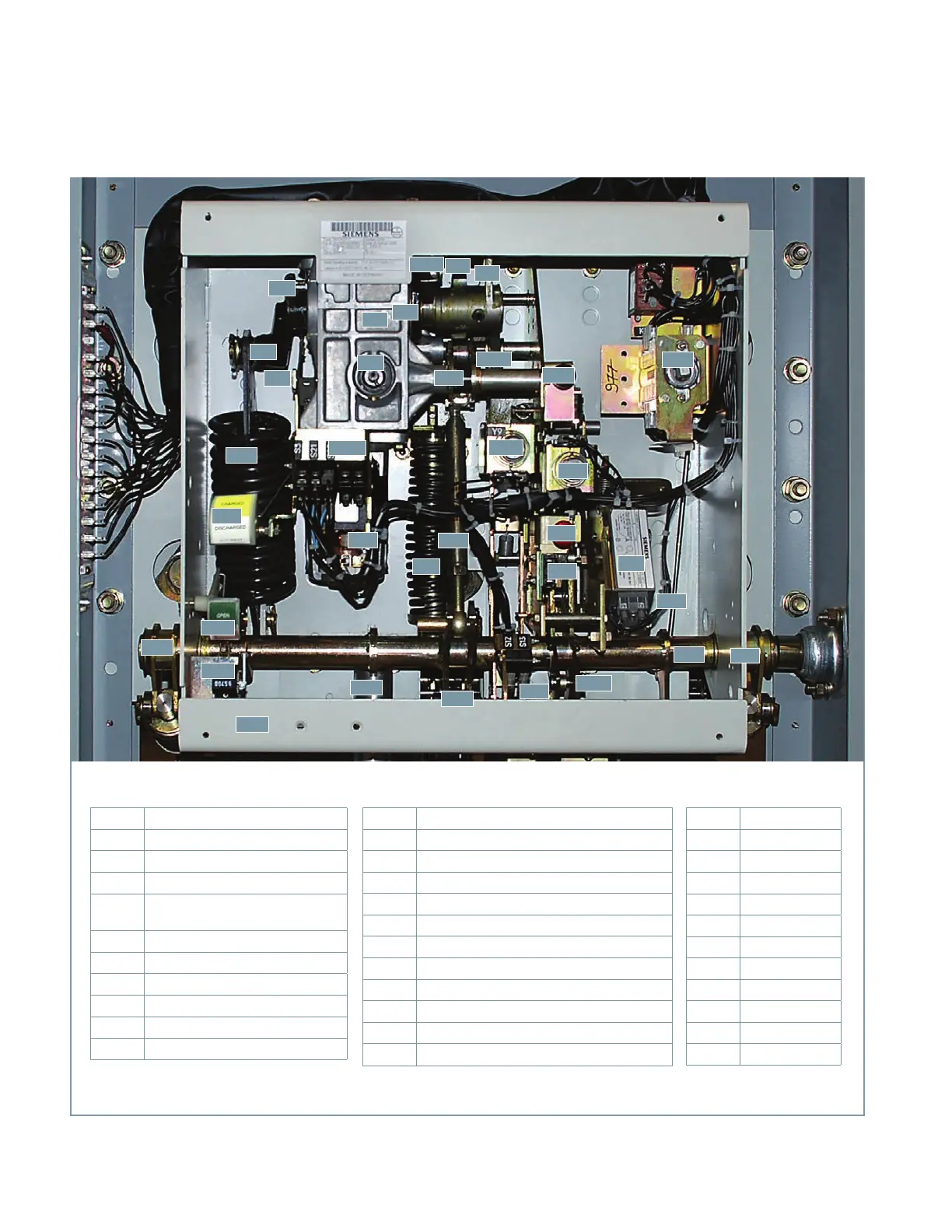

Figure 15: Stored-energy operating mechanism
50.1
Manual-spring charging port
50.2
Charging mechanism gear box
50.3
Charging flange
50.3.1
Driver
50.4
Spring-charging motor
(behind limit switches)
50.4.1
Limit switches
53.0
Close button
53.1
Close coil
54.0
Open button
54.1
Trip coil
54.2
Undervoltage (or secondary) release
55.2
55.0
Spring-charge CHARGED/DISCHARGED indicator
55.1
Linkage
55.2
Control lever
58.0
CLOSED/OPEN indicator
59.0
Operation counter
60.0
Operator housing
61.8
Shock absorber
62.0
Closing spring
62.2
Crank
62.3
Cam disc
62.5
Lever
62.5.2
Close-latch pawl
62.6
Drive lever
62.8
Coupling rod
63.0
Jack shaft
63.1
Phase C lever
63.5
Phase B lever
63.7
Phase A lever
64.0
Opening spring
64.2
Pawl
64.3
Lever
64.3.1
Pawl roller
68.0
Auxiliary switch
68.1
Linkage
