Siemens GMSG-GCB

30

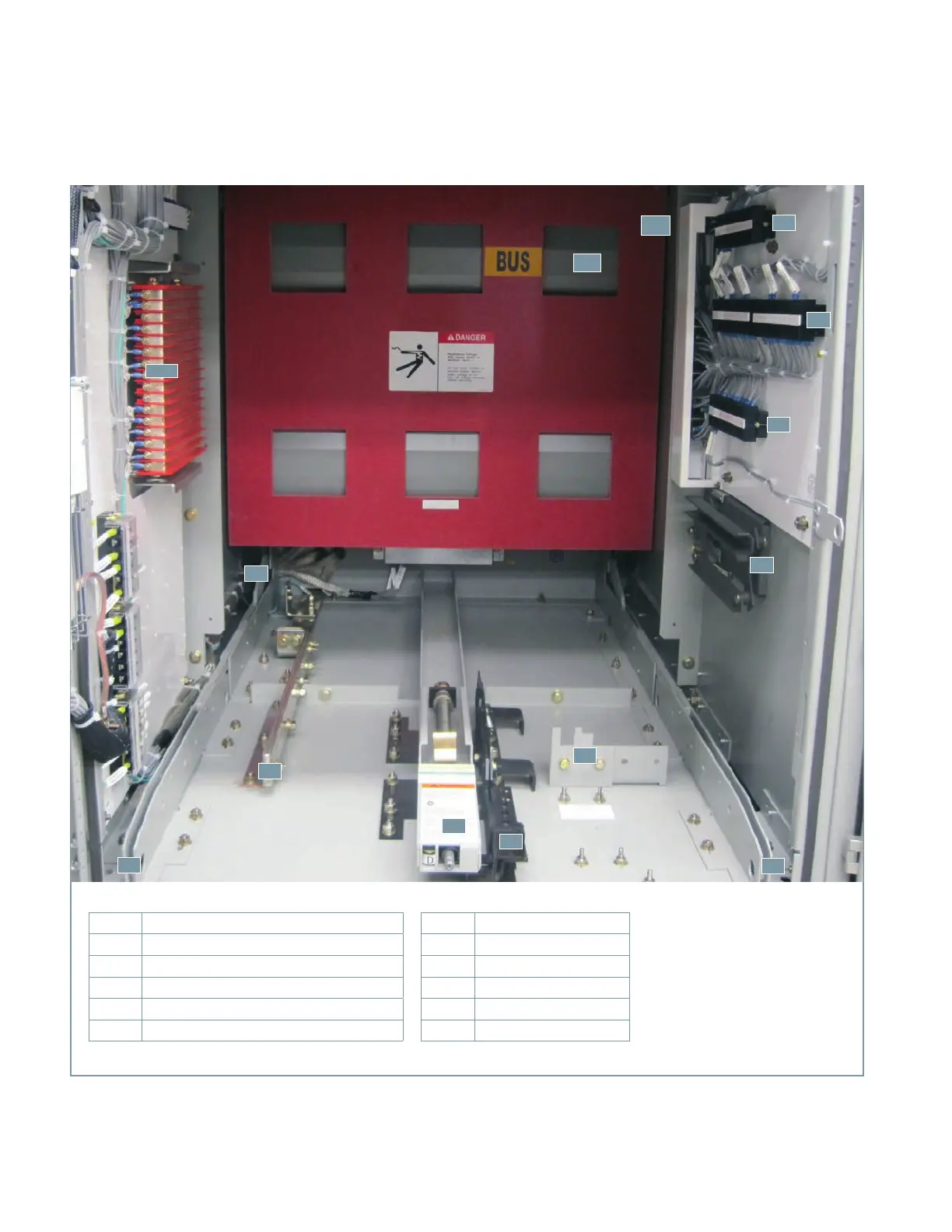

Figure 29: Circuit breaker compartment (up to 50 kA shown)
1.0
Interface blocking plate (rating interlock)
2.0
Racking mechanism
3.0
Ground bar
4.0
Guide rails
5.0
Trip-free and racking interlock padlock provisions
6.0
MOC switch operator
12.0
7.0
MOC switch terminals
8.0
TOC switch terminals
9.0
Shutter-operating linkage
10.0
Shutter (behind barrier)
11.0
CT barrier
12.0
Secondary disconnect
9.0
4.0
3.0
2.0
5.0
1.0
4.0
7.0
6.0
7.0
8.0
11.0
10.0
