en Installation
16
Attaching the flue duct
:Warning – Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
1. Separate the flue duct sections.
To do this, remove the adhesive tape.
2. Remove the pieces of protective film from both flue
duct sections.
3. Push one flue duct section into the other.
Notes
– To prevent scratches, lay paper over the edges of
the outer flue duct section to protect the surface.
– The slots of the inner flue duct section should
point downwards.

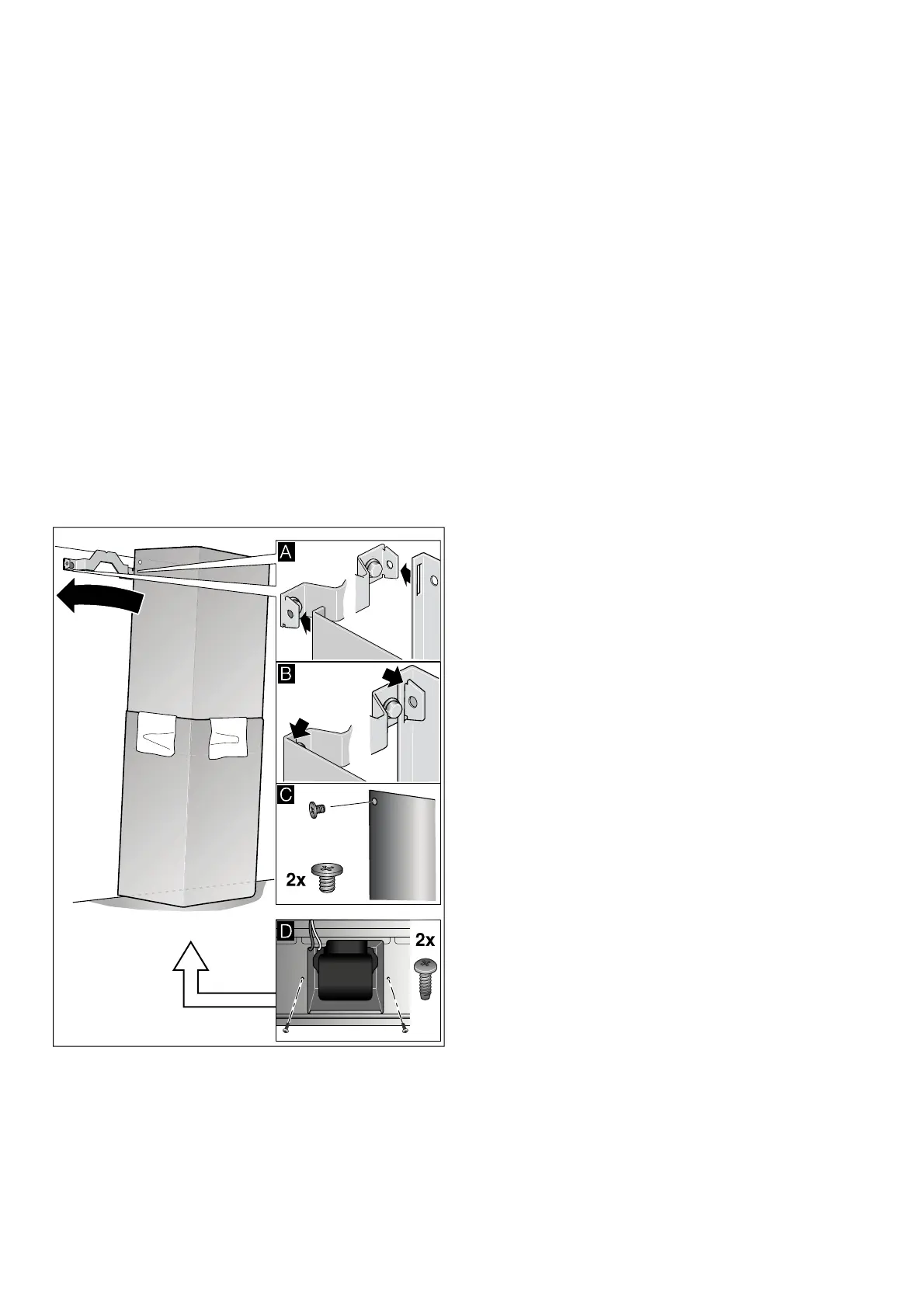

4. Place the flue ducts sections on the appliance.
5. Slide the inner flue duct section upwards, and attach
it to the left and right sides of the retaining bracket.
¨
6. Slide the flue duct section down to engage it. ©
7. Screw the flue duct section to the sides of the
retaining bracket using two screws. ª
8. Use two screws to fasten the outer flue duct section
to the appliance from below. «
