Siemens LC67KHM60 User Manual

Installation en
15
5Installation
Installation Preparing for installation
Caution!
Ensure that there are no electrical wires, gas pipes or
water pipes in the area where holes are to be drilled.
If the extractor hood is to be operated in exhaust-air
mode, a flue duct must be fitted.
If the extractor hood is to be operated in air-recirculation
mode, an optional accessory must be fitted. To do this,
refer to the installation instructions provided. The flue
duct does not need to be fitted for air-recirculation
mode.
1. Determine where the extractor hood should be
positioned and lightly mark where the lower edge of
the appliance should be on the wall. Determine
where the middle should be based on the hob.

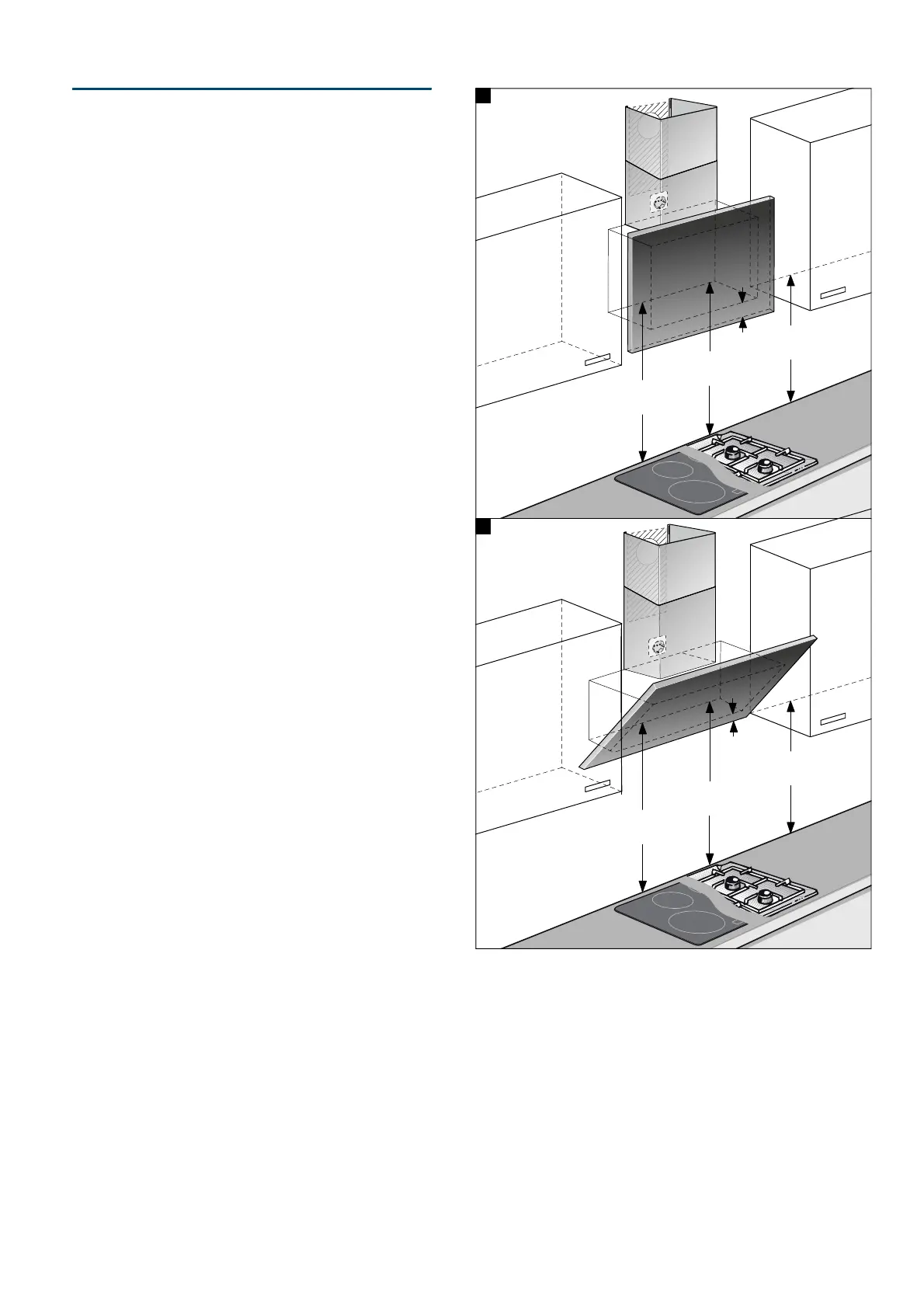

Note: We recommend fitting the extractor hood such
that the lower edge of the glass screen is in line with
the lower edges of the adjacent wall-hung cabinets.
Make sure that the specified safety clearances from
the hob are complied with.
2. Place the template against the line drawn on the wall
and fasten it in place. Mark where the screws should
be inserted.
To fit the flue duct, the template must be cut along
the marked cut line.
3. Drill 8 mm diameter holes to a depth of 80 mm for
fastening the appliance, remove the template and
press in the wall plugs flush with the wall.
$
%
]
]
[
PP
[
PP
[
PP
[
PP
\
\

Siemens LC67KHM60 Specifications

General

Noise level	67 dB
Intensive speed	Yes
Number of speeds	4
Type of extraction	Ducted/Recirculating
Noise level (low speed)	48 dB
Maximum extraction power	660 m³/h
Noise level (high speed)	68 dB
Maximum recirculating power	570 m³/h
Minimum distance from gas hob	600 mm
Noise level (intensive speed)	74 dB
Fluid dynamic efficiency class	A
Grease filtering efficiency class	C
Minimum distance from electric hob	450 mm
Type	Wall-mounted
Cord length	1.3 m
Control type	Touch
Product color	Black, Stainless steel
Built-in display	No
Compatible products	CE, VDE
Exhaust connection diameter	120 mm
Bulb type	LED
Bulb power	1.5 W
Illuminance	90 lx
Number of bulbs	2 bulb(s)
Grease filter type	Aluminum
Current	10 A
Motor power	- W
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	52.5 kWh

Weight and Dimensions

Depth	499 mm
Width	590 mm
Height	- mm
Weight	27000 g
Height (max)	1198 mm
Height (min)	928 mm
Height without chimney	323 mm
