Siemens LC67KHM60 User Manual

en Cleaning and maintenance
8
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning
Risk of fire!
Fatty deposits in the grease filter may catch fire.
Regularly clean the grease filter. Never operate the
appliance without a grease filter.
Notes
■ Do not use aggressive, acidic or alkaline cleaning
products.
■ We recommend cleaning the grease filters every 2
months.
■ When cleaning the metal grease filters, also clean
the metal grease filter holder in the appliance using
a damp cloth.
■ The metal grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special degreaser to remove
stubborn dirt. This can be ordered from the online shop.
■ Soak the metal grease filters in hot soapy water.
■ Clean the filters with a brush and then rinse them
thoroughly.
■ Leave the metal grease filters to drain on an
absorbent material.
In the dishwasher:
Note: Slight discolouration may occur if the metal
grease filters are cleaned in the dishwasher. This
discolouration has no effect on the performance of the
metal grease filters.
■ Use normal domestic dishwashing detergents.
■ Do not clean heavily soiled metal grease filters
together with cookware.
■ Place the metal grease filters in the dishwasher,
leaving plenty of space around them. Do not trap the
metal grease filters.
■ Select a temperature of no more than 50 °C.

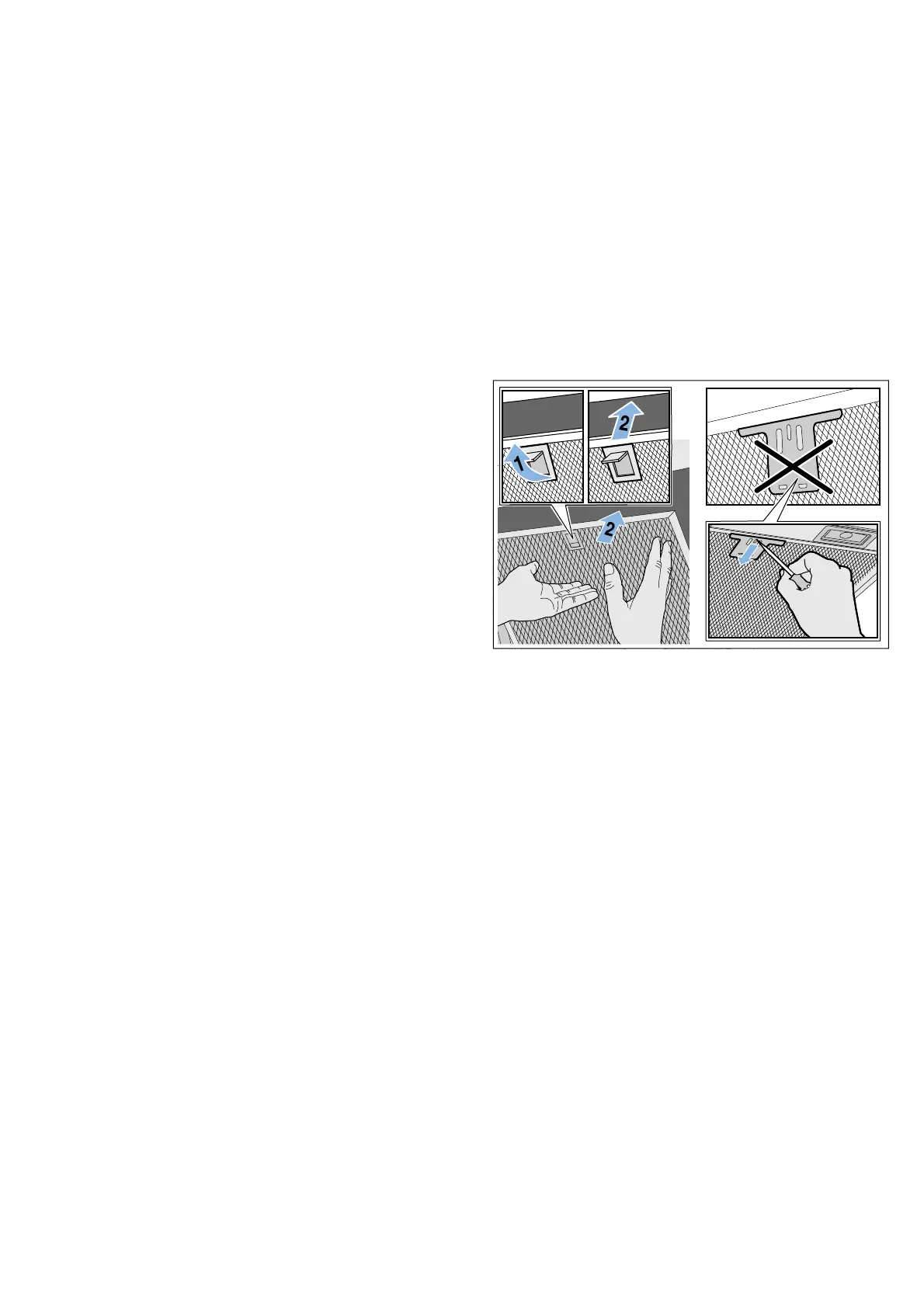

Installing the metal mesh grease filter
:Warning
Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Note: Clean all accessible parts of the housing.
1. Insert the metal grease filter and lock it in place.
When you do this, take hold of the metal grease filter
from underneath with your other hand.
Note: Make sure that the metal grease filter is
positioned correctly.
2. If the metal grease filter has not been inserted
correctly, open the lock and reinsert the metal
grease filter correctly.

Siemens LC67KHM60 Specifications

General

Noise level	67 dB
Intensive speed	Yes
Number of speeds	4
Type of extraction	Ducted/Recirculating
Noise level (low speed)	48 dB
Maximum extraction power	660 m³/h
Noise level (high speed)	68 dB
Maximum recirculating power	570 m³/h
Minimum distance from gas hob	600 mm
Noise level (intensive speed)	74 dB
Fluid dynamic efficiency class	A
Grease filtering efficiency class	C
Minimum distance from electric hob	450 mm
Type	Wall-mounted
Cord length	1.3 m
Control type	Touch
Product color	Black, Stainless steel
Built-in display	No
Compatible products	CE, VDE
Exhaust connection diameter	120 mm
Bulb type	LED
Bulb power	1.5 W
Illuminance	90 lx
Number of bulbs	2 bulb(s)
Grease filter type	Aluminum
Current	10 A
Motor power	- W
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	52.5 kWh

Weight and Dimensions

Depth	499 mm
Width	590 mm
Height	- mm
Weight	27000 g
Height (max)	1198 mm
Height (min)	928 mm
Height without chimney	323 mm
