Installation

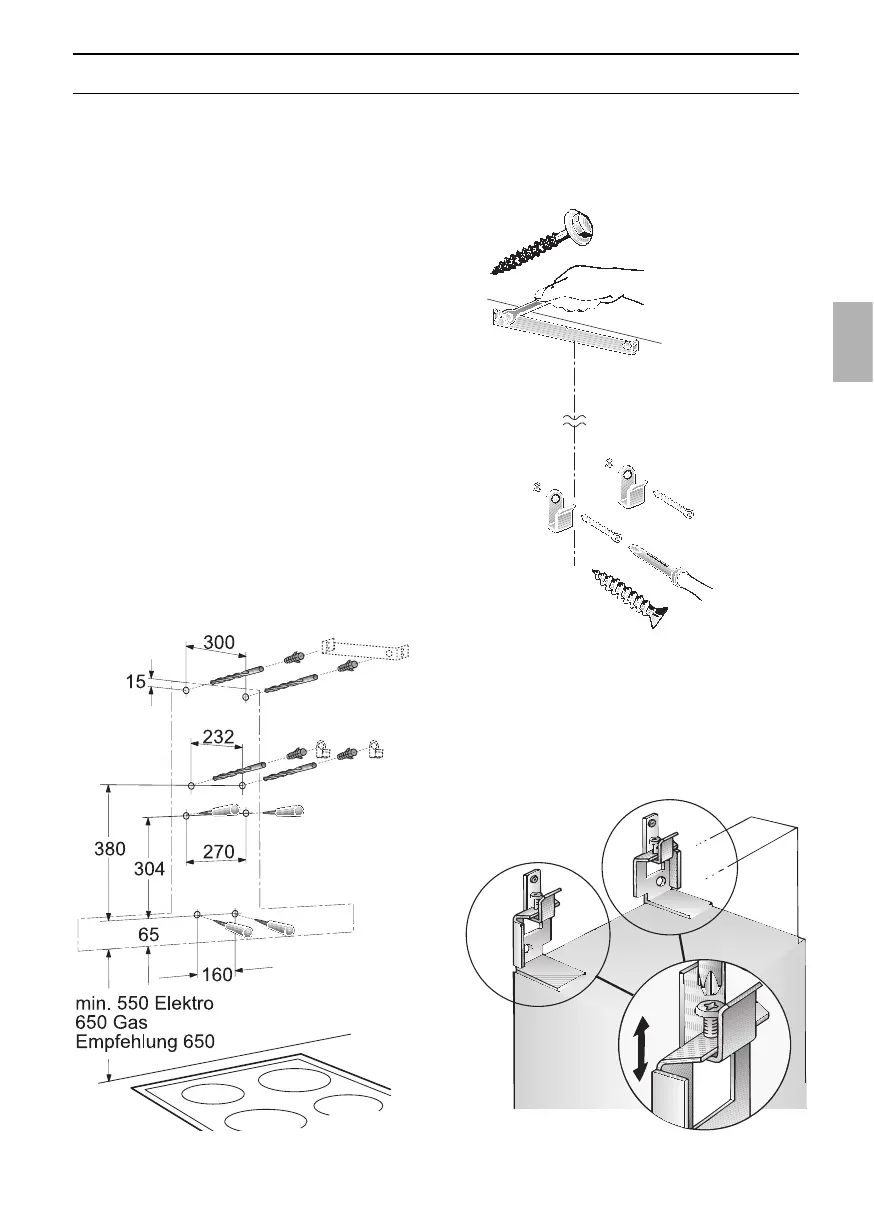

This extractor hood is intended to be
mounted onto the kitchen wall.
1. Remove the grease filter (refer to
Operating Instructions).
2. Draw a line on the wall from the ceiling
to the lower edge of the hood at the
centre of the location where the hood is
going to be mounted.
3. Use the template to mark the points on
the wall where the screws will be moun-
ted. In order to make it easier to hook
the hood onto the screws, draw the out-
line of the area where the hood will be
attached.
Ensure that the minimum distance
between the hob and the extractor hood is
maintained – 550 mm for an electric hob
and 650 mm for a gas hob. The bottom
edge of the template equates to the lower
edge of the extractor hood.
4. Drill 2x 8 mm ø holes for the upper fixing
bracket and 2x 8 mm ø holes for the
lower fixing bracket and press in wall
plugs flush with the wall.
Note: Take into account any special
accessories that are going to be fitted.
5. Screw on the upper and the two lower
fixing brackets.
6. Attach the extractor hood.
Adjust the height and align horizontally
with the adjusting screws.
Remove air conduction plate
(see Activated-carbon filter).
Check that the 4 lower fixing holes
have been correctly marked. If required,
mark again.
