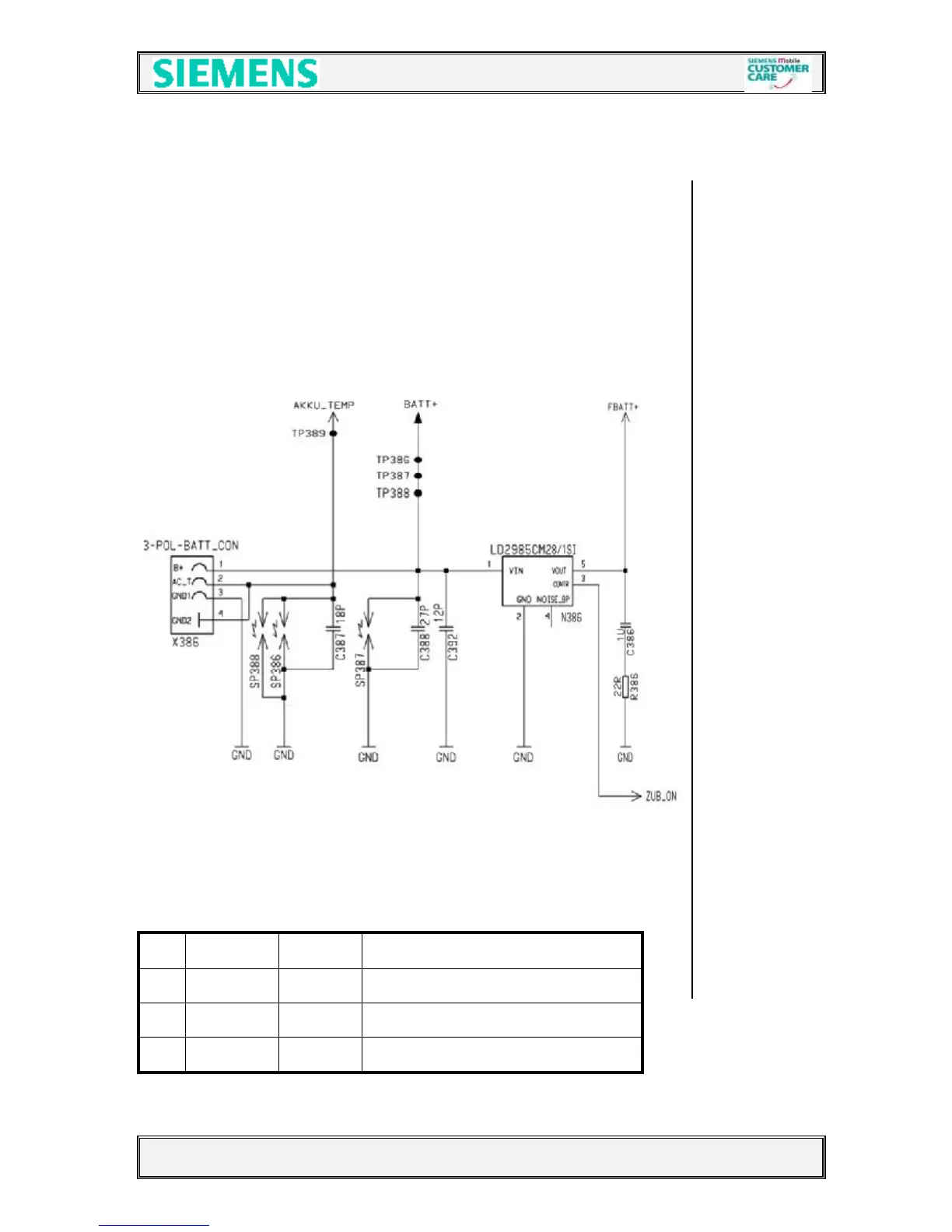

9.4 Battery Connector
The battery is connected via the battery connector (X386) to the battery contacts
on the RF-Board.
Directly connected to battery, there is a voltage regulator (N386). This regulator
Is used to provide the external accessories with the required voltage.
To extend STAND-BY time, the regulator is switched on with the signal ZUB_On
only if accessories are recognised.
Responsible for the ZUB_ON signal is the ASIC (D361).
Pin
Name IN/OUT Notes
1 Batt+ I/O Battery voltage
2 Akku_Temp O Temperature control of the battery pack.
3 GND
