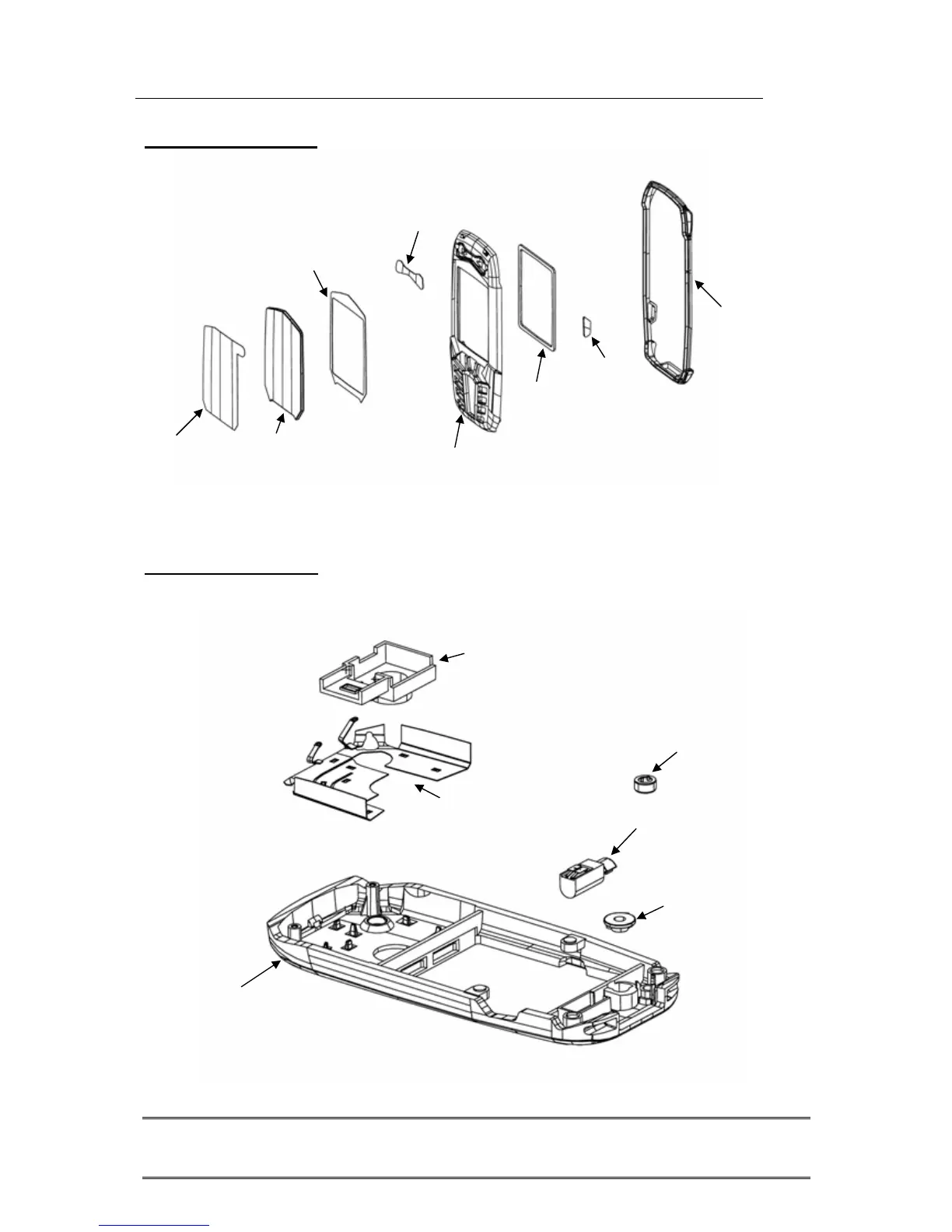

Upper case assembly
Lower case assembly
Mesh
us-welded / hot
stamped onto upper
case
Case Gasket
Mounted into
Upper Case
IRDA Lens
Display Cushion
Glued on upper case
One side adhesive
Upper Case
Display lens
Glued on upper case
with Adhesive Ta
p
e
Protective
Tape DPL
Adhesive Tape DPL
double side adhesive
Support frame
Mounted into lower case
Micro R65
Mounted into
lower case
Vibra Motor
Mounted into
lower case
Sealing Plug for
Screw Hole
Mounted into
lower case
Lower Case
Antenna
Pressed into
lower case
