Siemens M65 Service Manual

SIEMENS PTE LTD
M65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved May 2004
ICM MP CCQ SLI RHQ Page 11 of 37 Company Confidential
6 Unit Description of M65
The M65 is designed as a two-PCB phone, water repellent with a design metal clip.
The cases are effect plastic-parts (1-shot-molding; 1 colour with effect granulate).

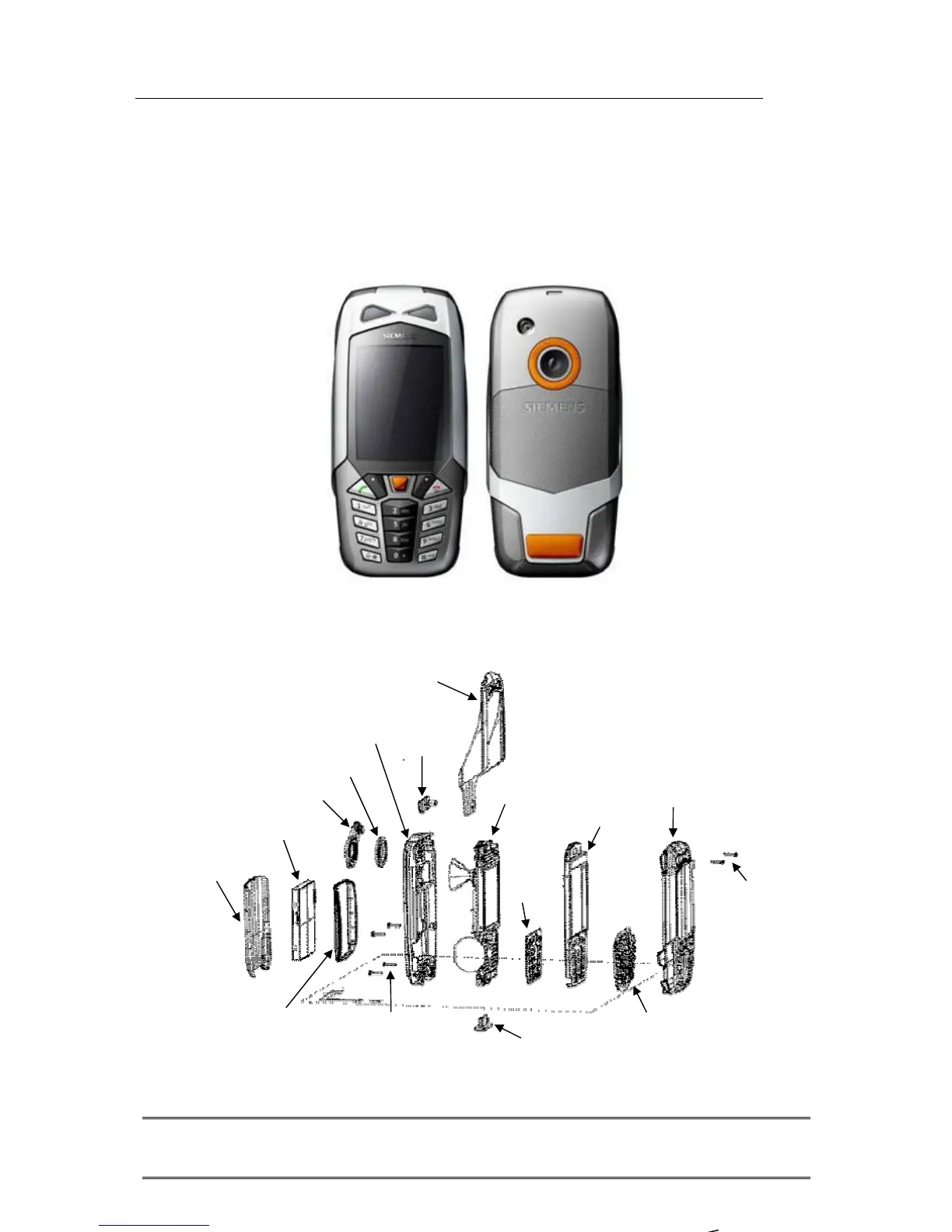

6.1 Exploded View of M65
Metal Clip
PCB-Assembly
MMI-
A
ssembl
y
SAR-Frame
Upper-Case-
Assembly
Housing Screws 2x
top side
Keypad + joystick Cap
Sticked into upper case
I/O Sealing Plug
Housing Screws 4x
bottom side
Sealing Battery
Cover
Battery
Cover
Battery R65 /LI-ION
/
750mAh
RF / Camera Plug
Rubber ring
Lower Case
A
ssembl
y
Bayonet Latch
