Ordering
When ordering, please give name and type reference: Room temperature controller
RDE10.1DHW.
Valve actuators are to be ordered as separate items.
Equipment combinations
Type of unit Type reference Data sheet
Electromotoric ON / OFF actuator
SFA21...
4863
Thermal actuator (for radiator valve)
STA21...
4893
Thermal actuator (for small valve 2.5 mm)
STP21...
4878
Accessories
Description Type reference
Adapter plate 120 x 120 mm for 4“ x 4“ conduit boxes ARG70
Adapter plate 96 x 120 mm for 2“ x 4“ conduit boxes ARG70.1
Adapter plate for surface wiring 112 x 130 mm ARG70.2

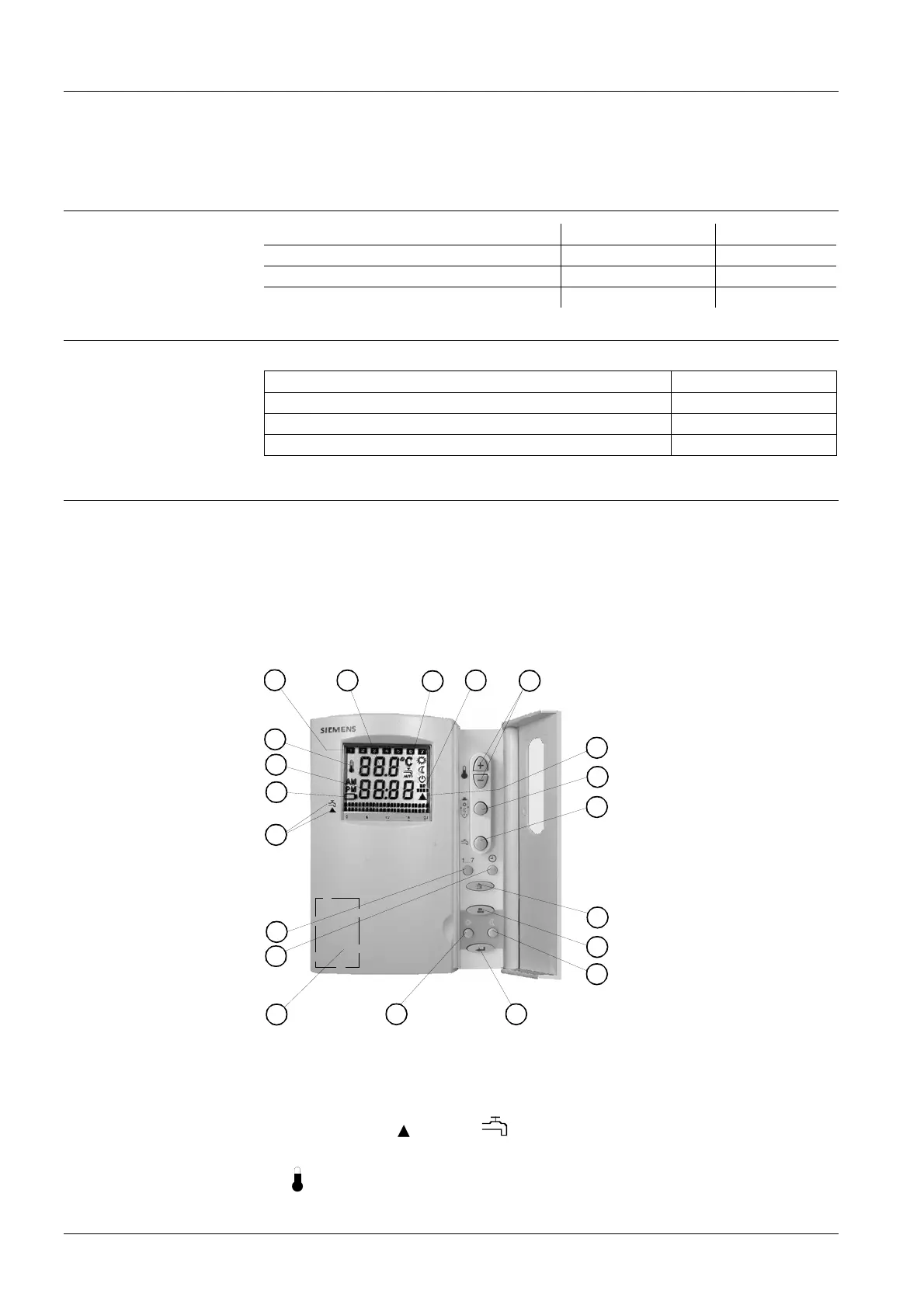

Mechanical design
The controller consists of 2 parts:
• Plastic housing with digital display, which accommodates the electronics, the oper-
ating elements and the built-in room temperature sensor
• Mounting base
The housing engages in the mounting base and snaps on.
The base carries the screw terminals.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
19
17
18
16
20
3038Z05
1 Display of the room temperature in °C, or setpoints
Legend
2 Current time of day using the 00:00... 23:59 format
3 Current weekday from 1 (Monday) to 7 (Sunday)
4 Current heating
and DHW switching pattern
with flashing time pointer
5
Symbol when the actual room temperature is displayed
4/8
Building Technologies Room temperature controller RDE10.1DHW CE1N3038en
HVAC Products 20.10.2005
