Siemens RDF301. / RDF301.50 / RDF600KN CE1N3171en
Building Technologies Semi flush-mount room thermostats with KNX communications 2012.10-04
General Connection terminals Solid wires or prepared
stranded wires
1 x 0.4…1.5 mm
2
Housing front color RAL 9003 white
Weight without / with packaging RDF301..
RDF600KN
0.246 kg / 0.316 kg
0.150 kg / 0.220 kg
Reference documentation
Handbook for Home and Building Control - Basic Principles
(www.knx.org/uk/news-press/publications/publications/
)
Synco CE1P3127 Communication via the KNX bus for Synco 700, 900 and RXB/RXL
Basic documentation
Desigo CM1Y9775 Desigo RXB integration – S-mode
CM1Y9776 Desigo RXB / RXL integration – individual addressing
CM1Y9777 Third-party integration
CM1Y9778 Synco integration
CM1Y9779 Working with ETS
Apogee Installation Instruction: KNX Driver for PXC Modular; Document No. 565-132
Technical Spec Sheet: KNX Driver for PXC Modular; Document No. 127-1676
Technical Reference for KNX Driver; Document No. 140-0804
Application 6205 Point Map for RDF (RDF301 only)

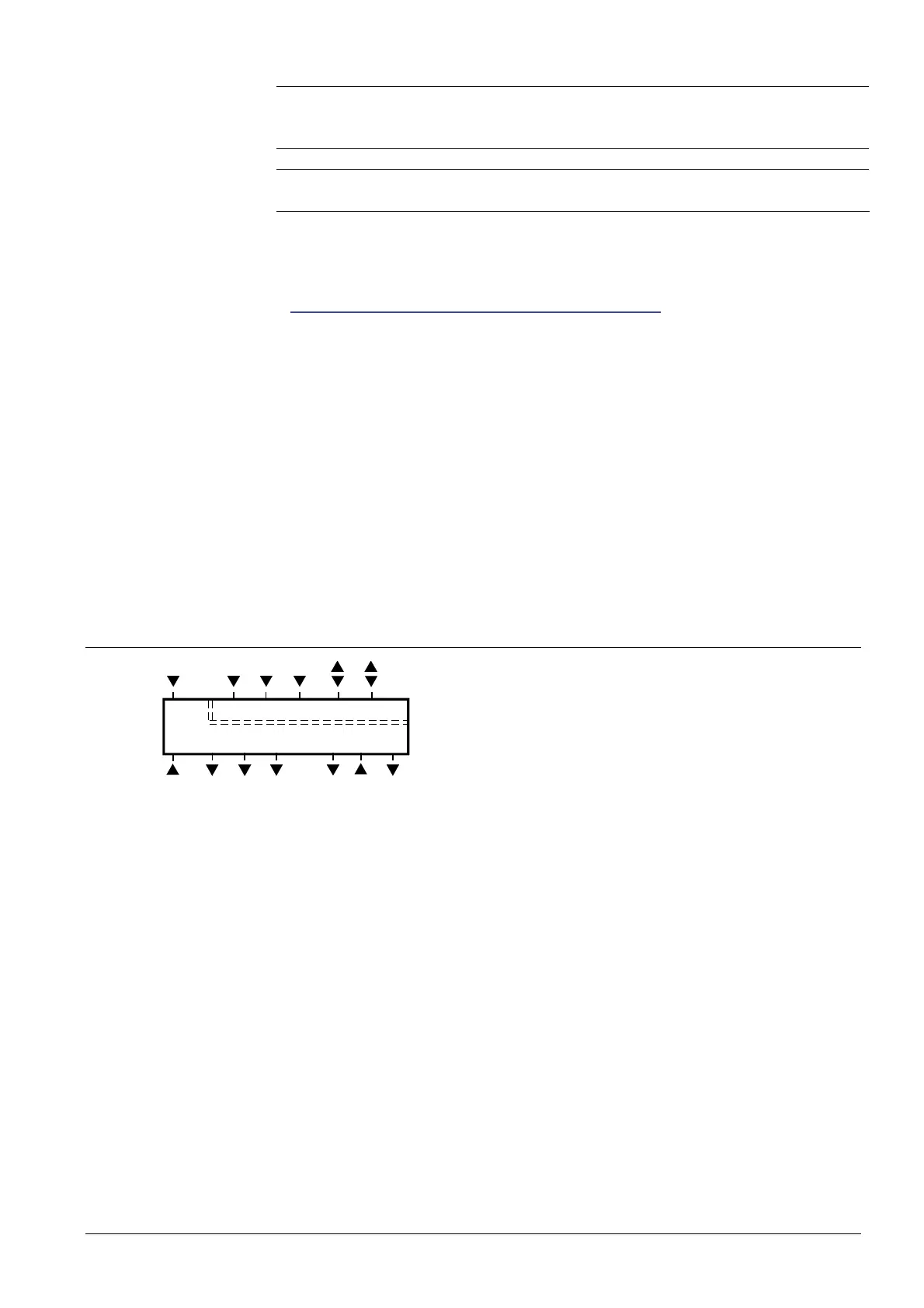

Connection terminals
LX1M
N
Q1 Q2 Q3
Y11 N
SELV
Y21
X2
3171A01
CE+ CE
-
L, N Operating voltage AC 230 V
Q1 Control output “Fan speed 1 AC 230 V”
Q2 Control output “Fan speed 2 AC 230 V”
Q3 Control output “Fan speed 3 AC 230 V”
Y11,Y21 Control output “Valve” AC 230 V (N.O., for
normally closed valves), output for compressor
or output for electrical heater
X1, X2 Multifunctional input for temperature sensor
(e.g. QAH11.1) or potential-free switch
Factory setting:
– X1 = Operating mode switchover contact
– X2 = External sensor
(function can be selected via parameter P38 /
P40).
M Measuring neutral for sensor and switch
CE+ KNX data +
CE- KNX data -
