Siemens RDF301 Quick Start Guide

4 / 14
Siemens RDF301. / RDF301.50 / RDF600KN CE1N3171en
Building Technologies Semi flush-mount room thermostats with KNX communications 2012.10-04
Type summary
Product
number
Stock
number
Operating
voltage
Control outputs
3-pos on/off DC 0...10 V
KNX switching
groups
Suitable conduit box
1)
RDF301 S55770-T104 AC 230 V
 
--
rectangular
RDF301.50 S55770-T105 AC 230 V
 
--

rectangular
RDF600KN S55770-T293 AC 230 V
 
--
round
1) Rectangular conduit box e.g. ARG71.
Round conduit box min 60 mm diameter and min 40 mm depth
Ordering
 When ordering, indicate both product number / SSN number and name:
E.g. RDF301 / S55770-T104 room thermostat
 Order valve actuators separately.

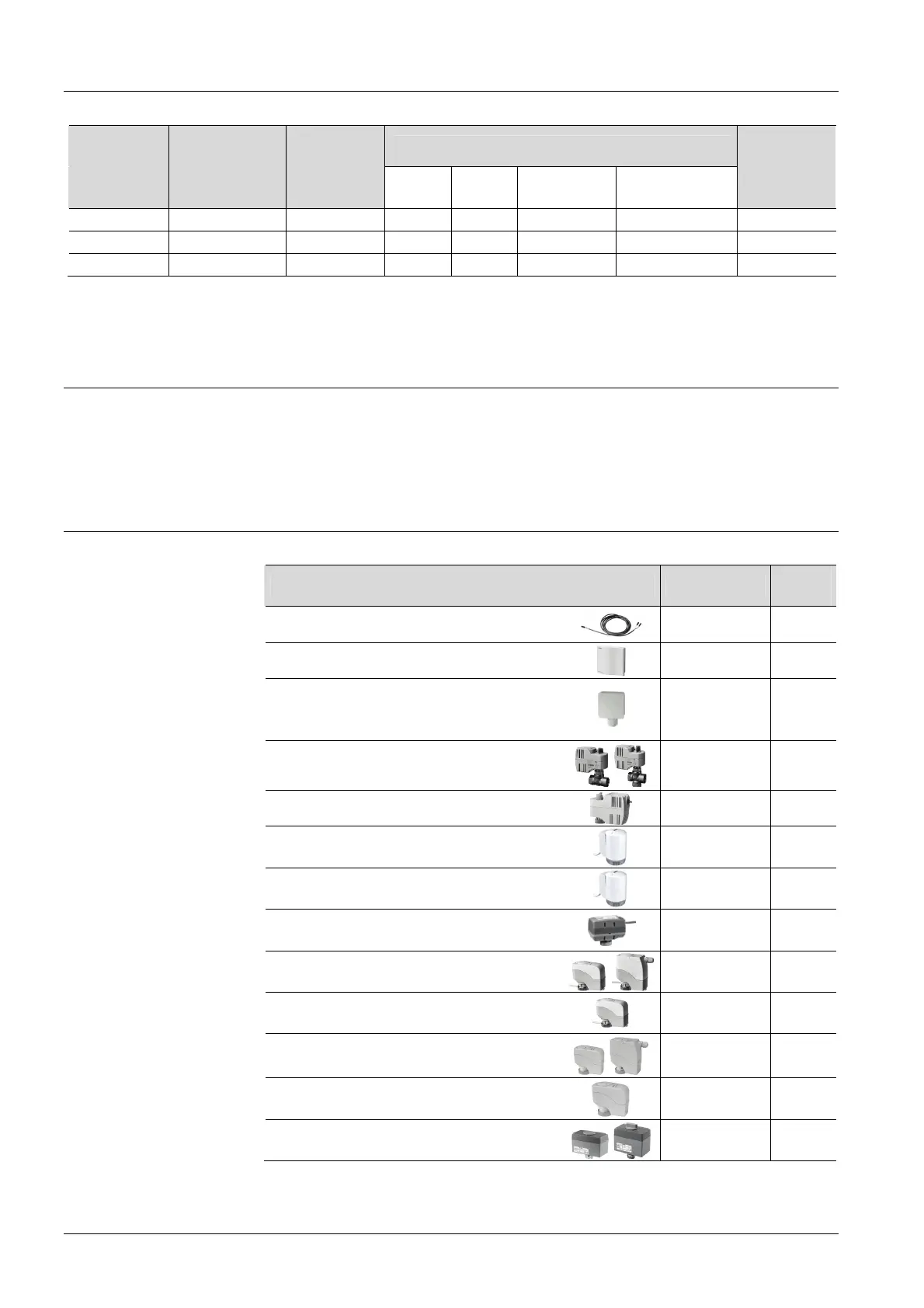

Equipment combinations
Type of unit Product no.
Data
sheet
Cable temperature sensor
QAH11.1
1840
Room temperature sensor
QAA32
1747
Condensation detector / Supply unit
QXA2000 /
QXA2001 /
AQX2000
1542
Electromotoric on / off valve and actuator
(only available in AP, UAE, SA and IN)
MVI…/MXI…
4867
Electromotoric on / off actuator
SFA21...
4863
Thermal actuator (for radiator valve)
STA23...
STA21... *)
4884
4893 *)
Thermal actuator
(for small valves 2.5 mm)
STP23...
STP21... *)
4884
4893 *)
Zone valve actuators
(only available in AP, UAE, SA and IN)
SUA…
4832
Electrical actuator, 3-position
(for radiator valve)
SSA31...
4893
Electrical actuator, 3-position
(for small valve 2,5 mm)
SSP31…
4864
Electrical actuator, 3-position
(for small valve 5,5 mm)
SSB31...
4891
Electrical actuator, 3-position
(for small valve 5,5 mm)
SSD31...
4861
Electromotoric actuator, 3-position
(for valves 5.5 mm)
SQS35…
4573
*) Not available any more
On / off actuators
3-position actuators
