Siemens RDF301. / RDF301.50 / RDF600KN CE1N3171en
Building Technologies Semi flush-mount room thermostats with KNX communications 2012.10-04
Accessories
Designation Product no / SSN
Data
sheet
Changeover mounting kit
(50 pcs/package)
ARG86.3
N3009
Plastic mounting bracket for semi-
flush-mount thermostats RDF301... for
increasing the headroom in the conduit
box by 10mm
ARG70.3
N3009
Conduit box for semi-flush mounted
thermostat RDF301...
ARG71 /
S55770-T137
N3009
KNX Power supply 160 mA (Siemens BT LV)
5WG1 125-1AB02
--
KNX Power supply 320 mA (Siemens BT LV)
5WG1 125-1AB12
--
KNX Power supply 640 mA (Siemens BT LV)
5WG1 125-1AB22
--
Mechanical design
The thermostats consist of 2 parts:
 Front panel with electronics, operating elements and built-in room temperature
sensor.
 Mounting base with power electronics.
The rear of the mounting base contains the screw terminals.
Slide the front panel in the mounting base and snap on.

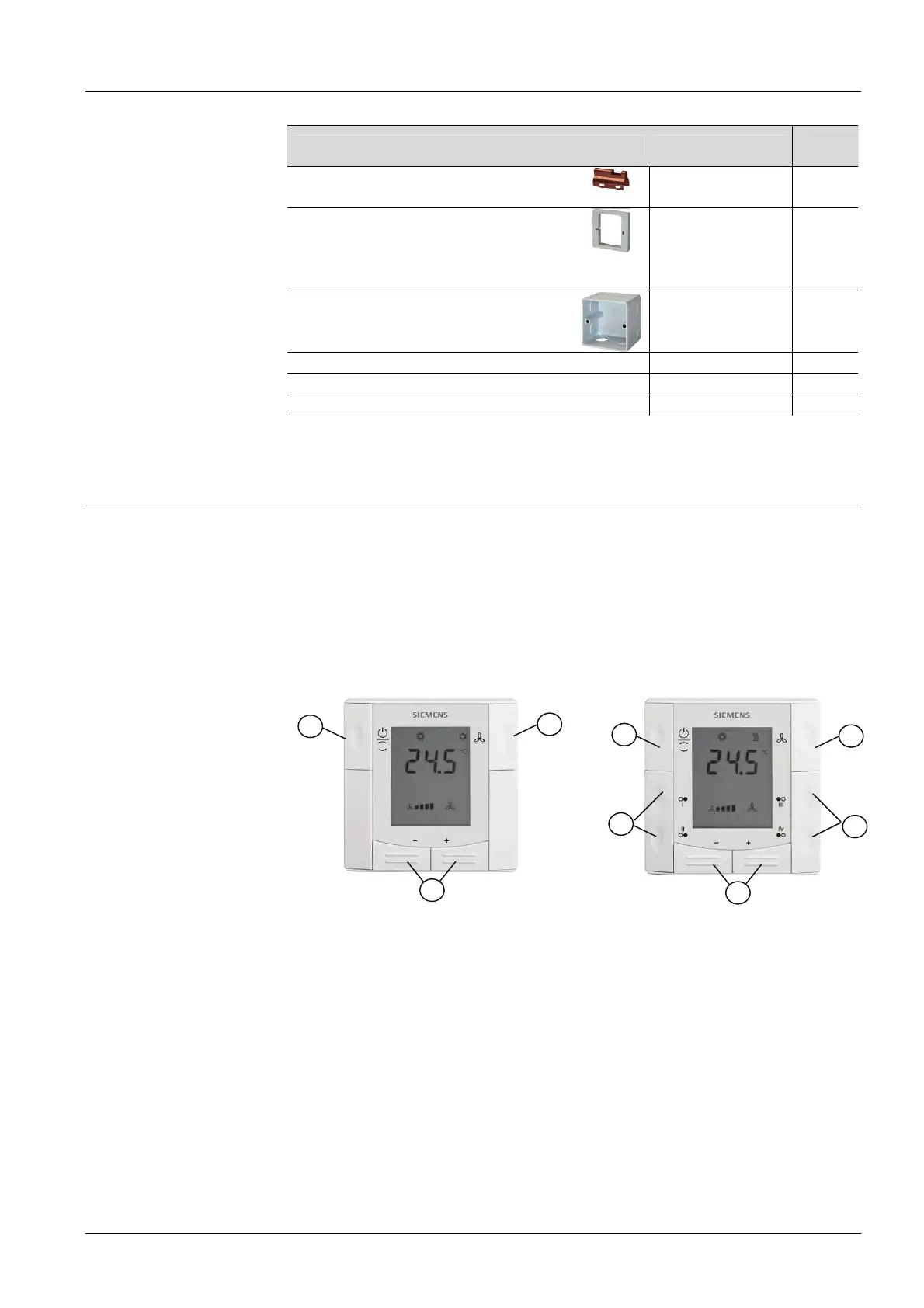

Operation and settings
RDF301, RDF600KN RDF301.50
1 Operating mode selector
2 Change fan operation
3 Adjust setpoint and control parameters
4 Four buttons to control KNX actuators via KNX S-mode
(functions: switching, dimming, blinds control, 8-bit scene)
2
1
3
2
1
3
4
4
