Siemens RDG100T Operating

10/12
Siemens RDG1... room thermostats N3181en
Building Technologies May 28. 2009
Electromagnetic compatibility
Emissions
Immunity
As per IEC/EN 61000-6-3
As per IEC/EN 61000-6-2
Safety class
RDG100… / RDG110, RDG140
RDG160
II as per EN 60730
III as per EN 60730
Pollution class Normal
Degree of protection of housing IP30 to EN 60529
Connection terminals Solid wires or prepared
stranded wires
1 x 0.4…2.5 mm
2
or 2 x 0.4…1.5 mm
2
Housing front color RAL 9003 white
Weight RDG100… / RDG110 / RDG140
RDG160
0.30 kg
0.25 kg

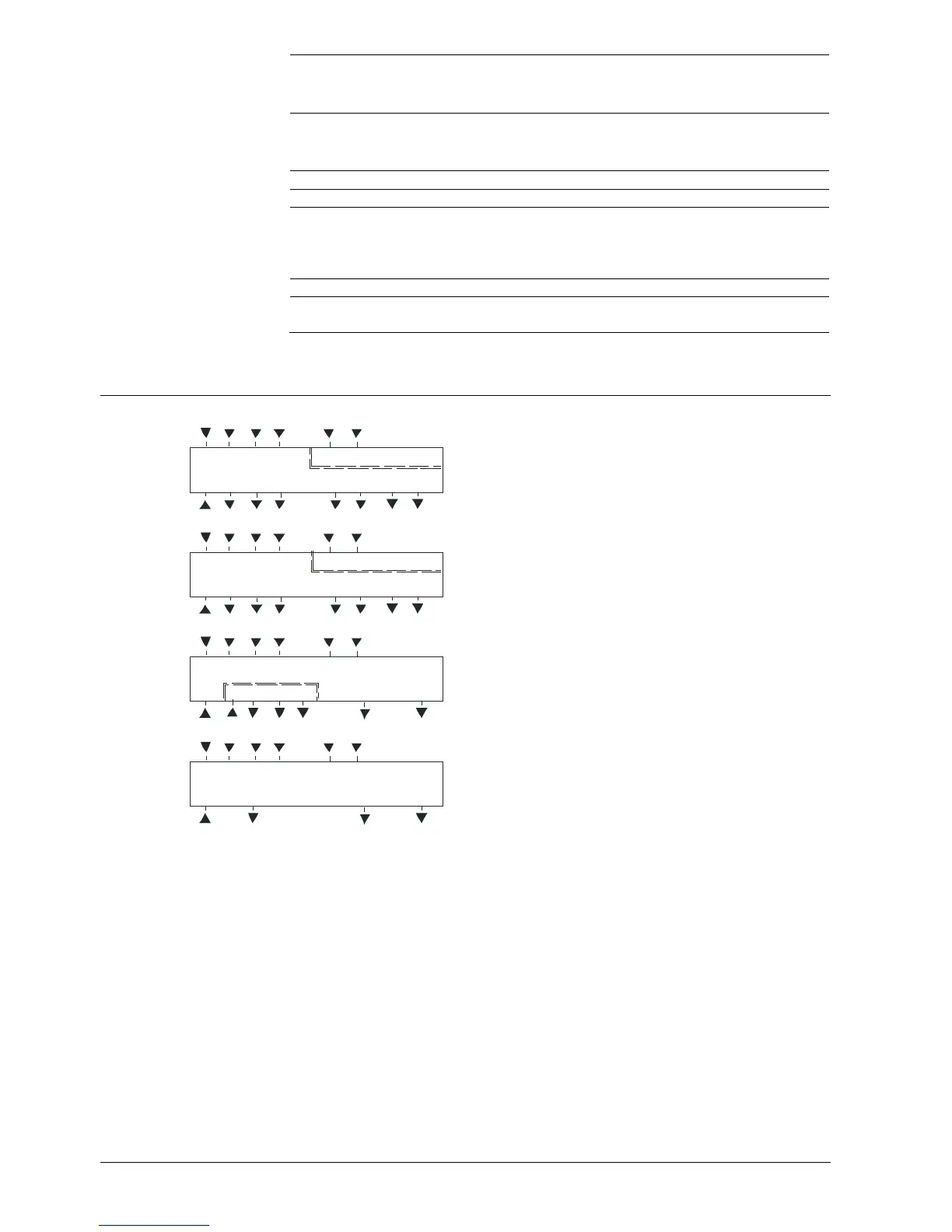

Connection terminals
RDG100..
L X1 M X2 D1 GND
N Q1 Q2 Q3 Y1 Y2 Y3 Y4
3181G01
SELV
RDG110
SELV
L X1 M X2 D1 GND
N Q1 Q2 Q3 Y11 Y12 Y21 Y22
3181G01
RDG140
G X1 M X2 D1 GND
G0 L Q1 Q2 Q3
Y10
Y20
3181G01
SELV
RDG160
G X1 M X2 D1 GND
G0 Y50
Y10
Y20
3181G01
SELV
L, N Operating voltage AC 230 V
G, G0 Operating voltage AC 24 V
X1, X2 Multifunctional input for temperature sensor
(e.g. QAH11.1) or potential-free switch
Factory setting:
- X1 = external room temperature sensor
- X2 = sensor or switch for automatic heating / cooling
changeover.
M Measuring neutral for sensor and switch
D1, GND Multifunctional input for potential-free switch
Factory setting: Operating mode switchover contact
Q1 Control output fan speed “low” AC 230 V
Q2 Control output fan speed “medium” AC 230 V
Q3 Control output fan speed “high” AC 230 V
Y50 Control output fan speed DC 0…10 V
Y1…Y4 Control output “Valve” AC 230 V (NO, for normally
closed valves), output for electrical heater via external
relay
Y11, Y21 Control output “Valve” AC 230 V (NO, for normally
closed valves), output for compressor or electrical
heater
Y12, Y22 Control output “Valve” AC 230 V (NC, for normally
open valves)
Y10, Y20 Control output for DC 0…10 V actuator
General
