Siemens RDG1... Wall-mounted room thermostats with LCD CE1N3181en
Building Technologies 2017-11-20
Display
1
2
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
3
22
24

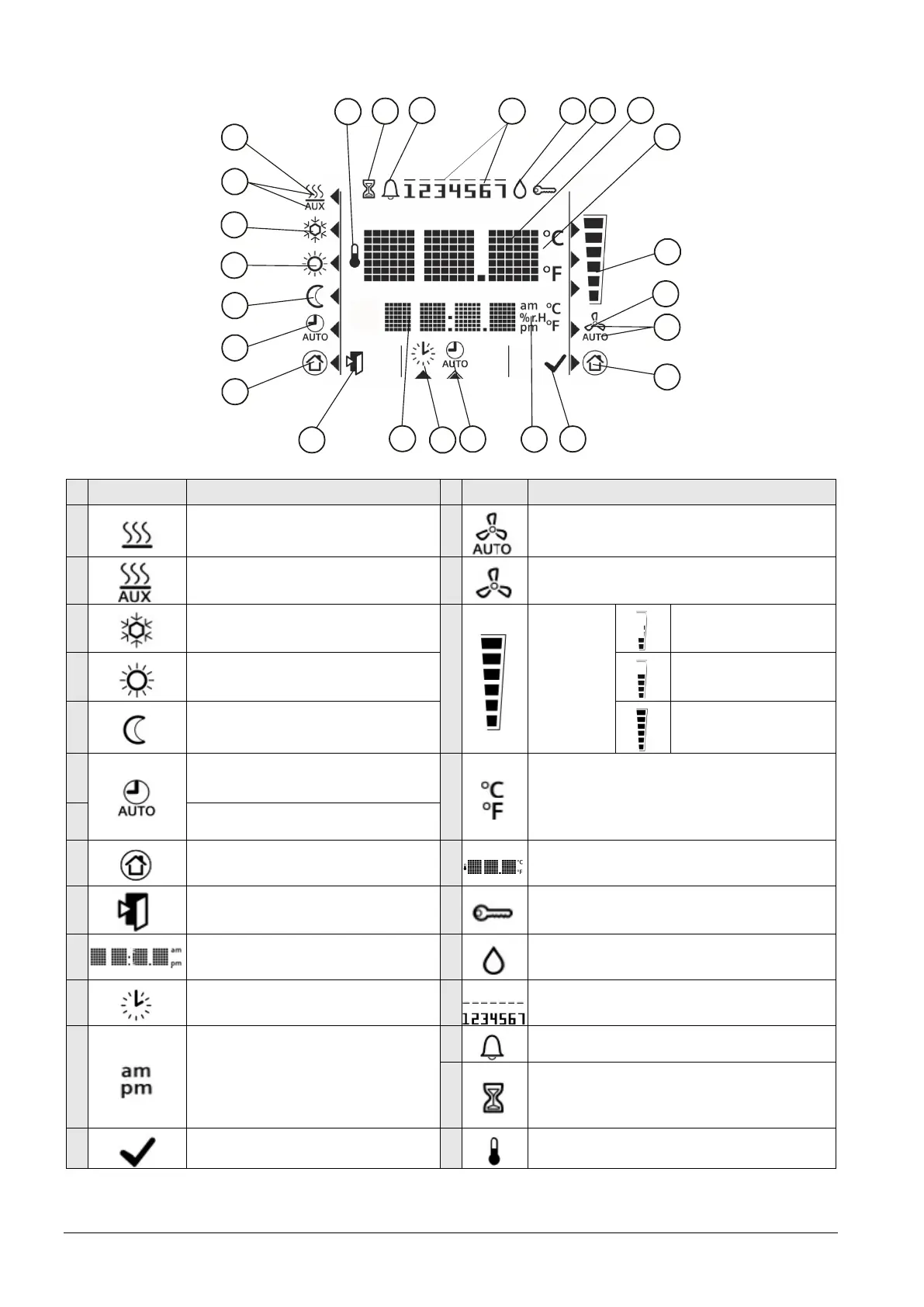

# Symbol Description # Symbol Description
1 Heating mode 14 Automatic fan
2
Heating mode
auxiliary heater on (2nd stage)
15 Manual fan
3 Cooling mode
16 Fan speed
Fan speed 1
4 Comfort mode Fan speed 2
5 Economy mode Fan speed 3
6 Auto Timer mode
17
Degrees Celsius
Degrees Fahrenheit
7 View and set Auto Timer program
8 Protection 18
Digits for room temperature and setpoint
display
9 Escape 19 Button lock
10
Digits for time, room temperature,
setpoint, etc.
20
Condensation in room (dewpoint sensor
active)
11
Setting the time of day and the
weekday
21 Weekday 1…7: 1 = Monday/7 = Sunday
12
Morning: 12-hour format
Afternoon: 12-hour format
22 Fault
23
Temporary timer function (visible when
operating mode is temporarily extended due
to prolonged presence or absence)
13 Confirmation of parameters 24 Indicates that room temperature is displayed
