Siemens RDG100T User Manual

19/23
Siemens RDG1... Wall-mounted room thermostats with LCD CE1N3181en
Building Technologies 2017-11-20

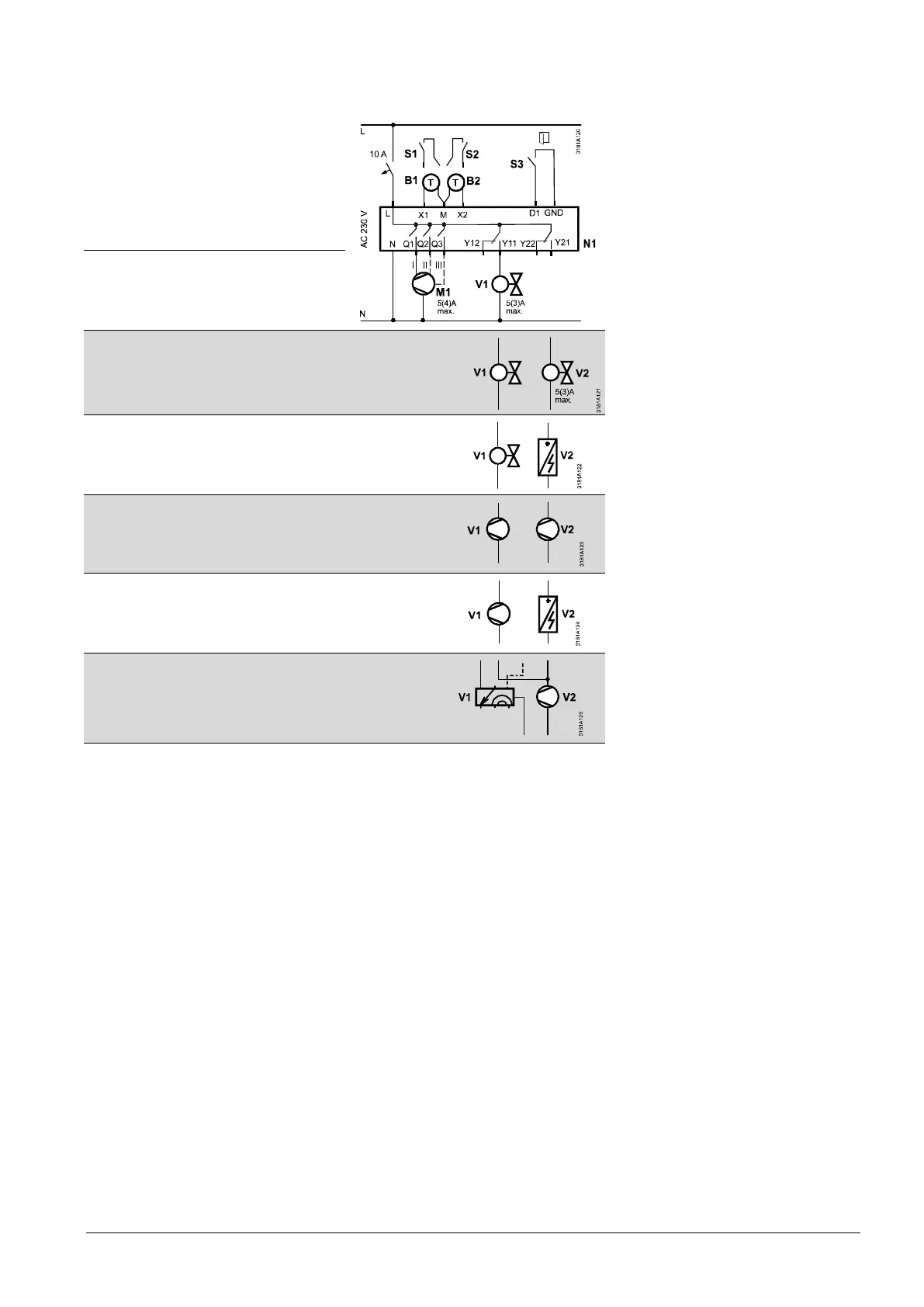

RDG110
N1 Room thermostat RDG110
M1 1-speed or 3-speed fan
V Valve actuators:
On/Off, heating, cooling, radiator,
heating/cooling, 1
st
or 2
nd
stage
S1, S2 Switch (keycard, window contact,
etc.)
S3 Switch at SELV input (keycard,
window contact)
B1, B2 Temperature sensor (return air
temperature, external room
temperature, changeover sensor,
floor temperature limit, etc.)
Q Relay outputs
Y11…Y22 Relay outputs
YH Heating valve actuator
YC Cooling valve actuator
YHC Heating/cooling valve actuator
YR Radiator valve actuator
YE Electric heater max. 5 A
YHC1/YHC2 1
st
/2
nd
stage
C1/C2 Compressor 1
st
and 2
nd
stage
RV Reversing valve
1-speed or 3-speed fan
Application
V1

V2

∂ 2-pipe
YHC
∂ 2-pipe & radiator
∂ 4-pipe
∂ 2-stage
YHC
YH
YHC1
YR
YC
YHC2
∂ 2-pipe & el. heater
YHC YE
∂ 1 and 2-stage
compressor
C1 C2
∂ Compressor & el.
heater
C1 YE
∂ Compressor &
reversing valve
RV C1
