Siemens RDG100, RDG100T, RDG110, RDG140, RDG160 Basic Documentation CE1P3181en
Building Technologies Engineering 14 Dec 2011
RDG110…
1- or 3-speed fan
Application
V1

V2

 2-pipe YHC
 2-pipe & radiator
 4-pipe
 2-stage
YHC
YH
1st
YR
YC
2nd
 2-pipe & el. heater YHC E1
 1 and 2-stage
compressor
C1 C2
 Compressor & el.
heater
C1 E1
 Compressor &
reversing valve
RV C1

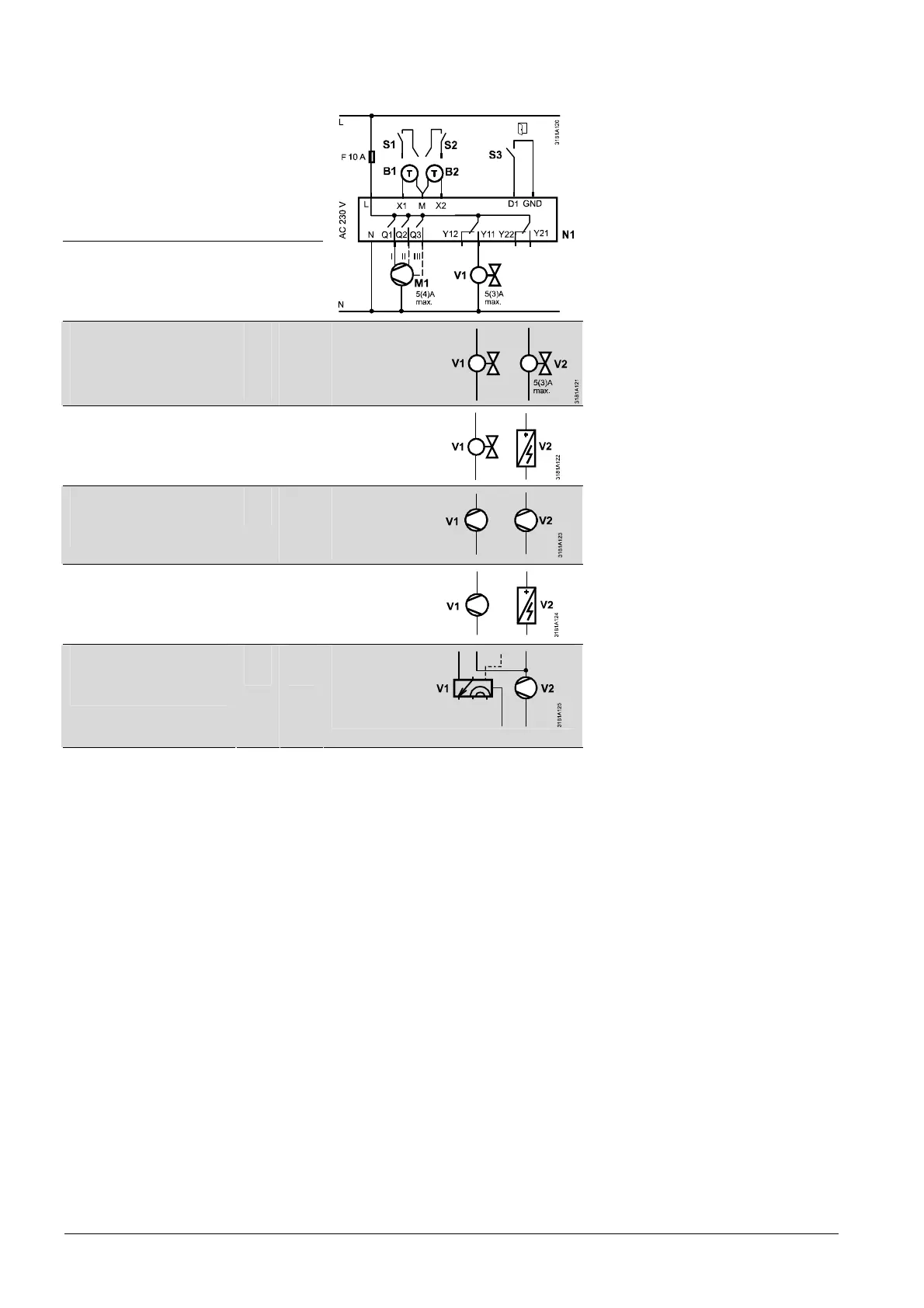

N1 Room thermostat RDG110..
M1 1- or 3-speed fan
V Valve actuators:
ON/OFF or PWM, 3-position,
heating, cooling, radiator,
heating / cooling, 1st or 2nd
stage
E1 Electric heater
C1, C2 Compressor
S1, S2 Switch (keycard, window contact,
etc.)
S3 Switch at SELV input (keycard,
window contact)
B1, B2 Temperature sensor (return air
temperature, external room
temperature, changeover
sensor, floor temperature limit,
etc.)
RV Reversing valve
Q Relay outputs
Y11…Y22 Relay outputs
YH Heating valve actuator
YC Cooling valve actuator
YHC Heating / cooling valve actuator
YR Radiator valve actuator
E1 Electric heater max. 5 A
1
st
/ 2
nd
1
st
/ 2
nd
stage
C1 / C2 Compressor 1
st
and 2
nd
stage
RV Reversing valve
