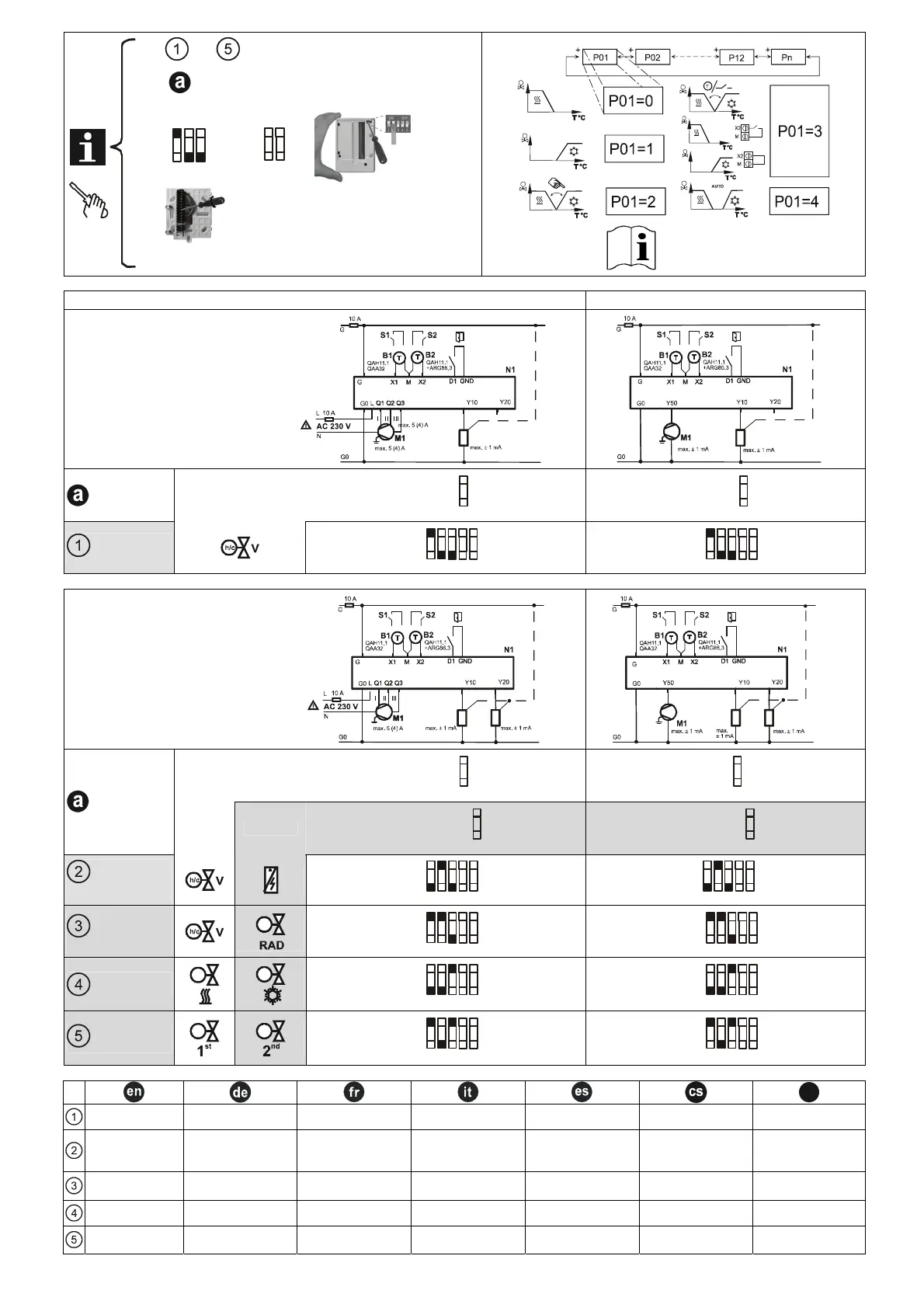

Siemens RDG140 Quick Start Guide

2/2 25.11.2011 RDG140 / 160 M3181.3 Siemens Building Technologies
1) …..
2) Outputs →DC 0…10 V / DC 10…0 V
3)
1 2 3
ON
OFF
and
ON
OFF
4 5
4)
5)
G,G0 / 24 VAC: → P01…Pn
-
-
-
-
→ P3181
RDG140… RDG160…
V
1
S3
S3
V
1
V1 / Y10
DC 10..0 V DIP 4 ON
DC 0..10 V DIP 4 OFF
4
DC 10..0 V DIP 4 ON
DC 0..10 V DIP 4 OFF
4
2-pipe
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
OFF
V
2
V
1
S3
V
2
V
1
S3
V1 / Y10
DC 10..0 V DIP 4 ON
DC 0..10 V DIP 4 OFF
4
DC 10..0 V DIP 4 ON
DC 0..10 V DIP 4 OFF
4
V2 / Y20
5
DC 10..0 V DIP 5 ON
DC 0..10 V DIP 5 OFF
5
DC 10..0 V DIP 5 ON
DC 0..10 V DIP 5 OFF
2-pipe &
el. heater
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
OFF
2-pipe
& radiator
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
OFF
4-pipe
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
OFF
2-stage
1 2 3 4 5
ON
OFF
1 2 3 4 5
ON
OFF
tr
2-pipe fan coil
2-Rohr Ventilator-
konvektor
Ventiloconvecteur 2
tubes
Fan coil 2 tubi Fancoil a dos tubos 2-trubkový fan-coil 2 borulu fan coil
2-pipe & el. heater
2-Rohranwendung &
Elektroheizer
Application 2 tubes &
batterie électrique
Fan coil 2 tubi con
batteria elettrica di
riscaldamento
2 tubos & batería
eléctrica
2-trubkový fan-coil
& el. ohřev
2 borulu& elk. Isıtıcı
2-pipe & radiator
2-Rohranwendung &
Radiatorventil
Application 2 tubes &
vanne thermostatique
Fan coil 2 tubi e
radiatore
2 tubos & rad
2-trubkový fan-coil
& radiátor
2 borulu& radyatör
4-pipe fan coil
4-Rohr Ventilator-
konvektor
Ventiloconvecteur 4
tubes
Fan coil 4 tubi Fancoil a 4 tubos 4-trubkový fan-coil 4 borulu fan coil
2-stage 2-Stufen-Anwendung Application à 2 étages 2 stadi 2 etapas 2-stupňový 2 kademe
