Mechanical design

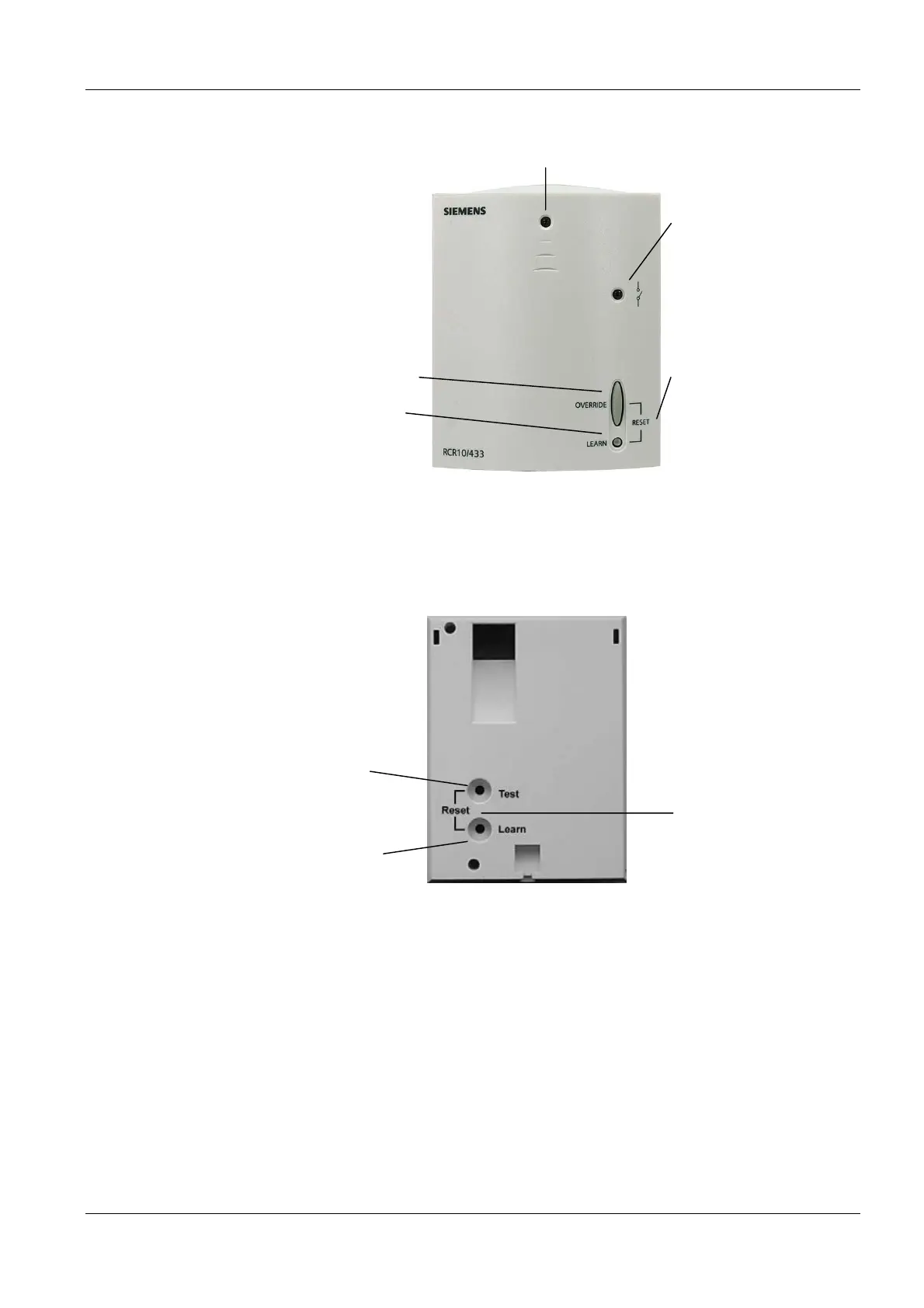

The RCR10/433 is in a plastic housing with LEDs and buttons.
Signal display LED
OVERRIDE button
LEARN button
Relay display LED
OVERRIDE & LEARN
buttons together = RESET
function
RCR10/433
The RDJ10RF is located in a plastic housing. The buttons are visible on the rear when
you remove the baseplate.
Test button
Learn button
Test & Learn button
together = RESET-
function
RDJ10RF
