Siemens RUGGEDCOM RX1510 User Manual

Installing the Device
2.5.2Connecting Low DC Power
5. Using a #10 ring lug and #10-32 screw, secure the ground terminal on the pow-
er source to the ground connection on the device. Make sure the lug is tight-
ened to 1.1 N·m (9.5 lbf·in).
3
2
1
4
1
#10 Ring Lug
2
#10-32 Screw
3
Connection from External Power Source
4
Ground Connection

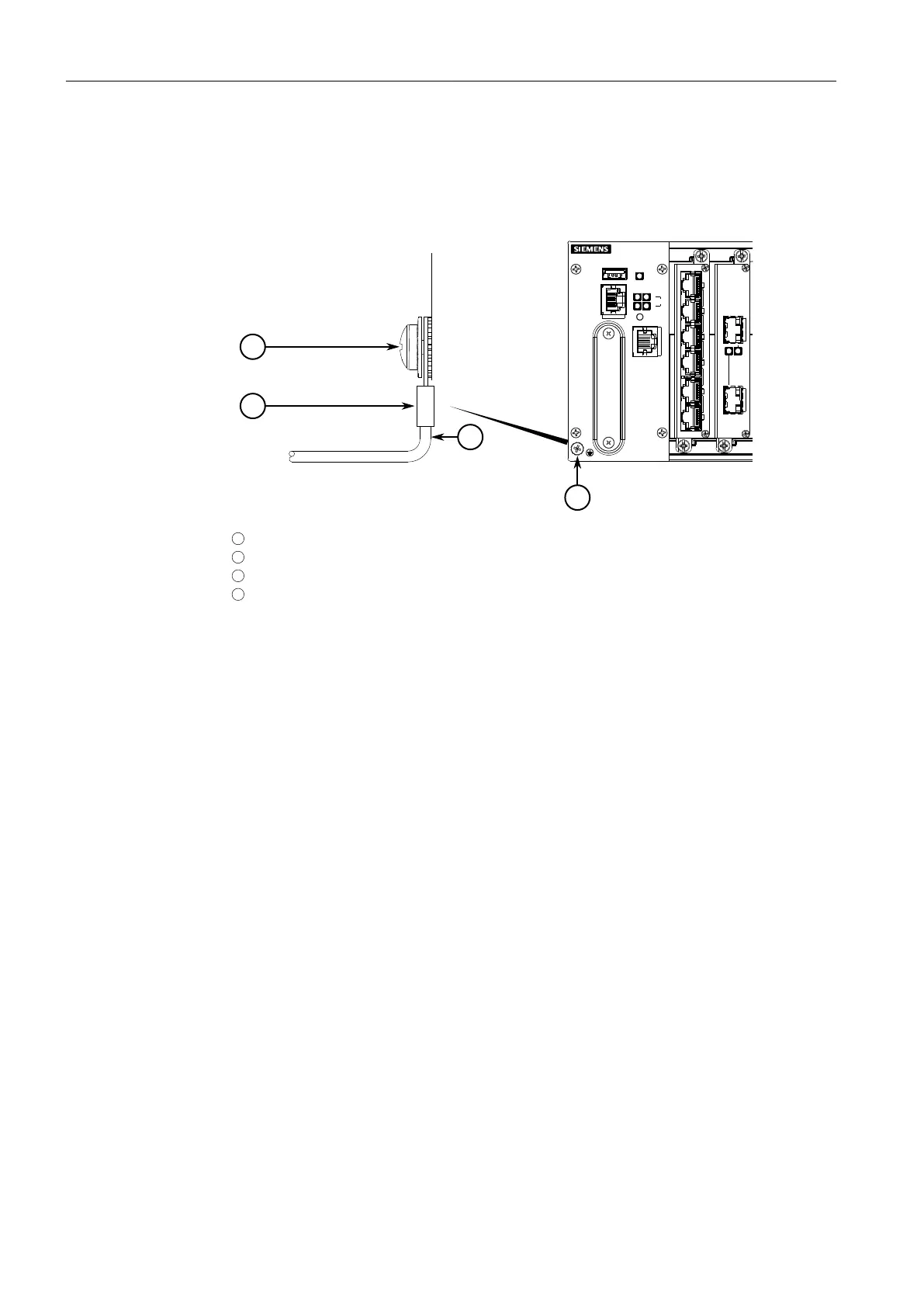

Figure2.13 Ground Connection
6. Install the safety cover over the terminal block. This is mandatory for 48 VDC
and -48 VDC power supplies.
RUGGEDCOM RX1510
Installation Manual, 12/2019, C79000-G8976-1055-16
17
