Installing the Device
2.5.2Connecting Low DC Power
6
Ground Terminal

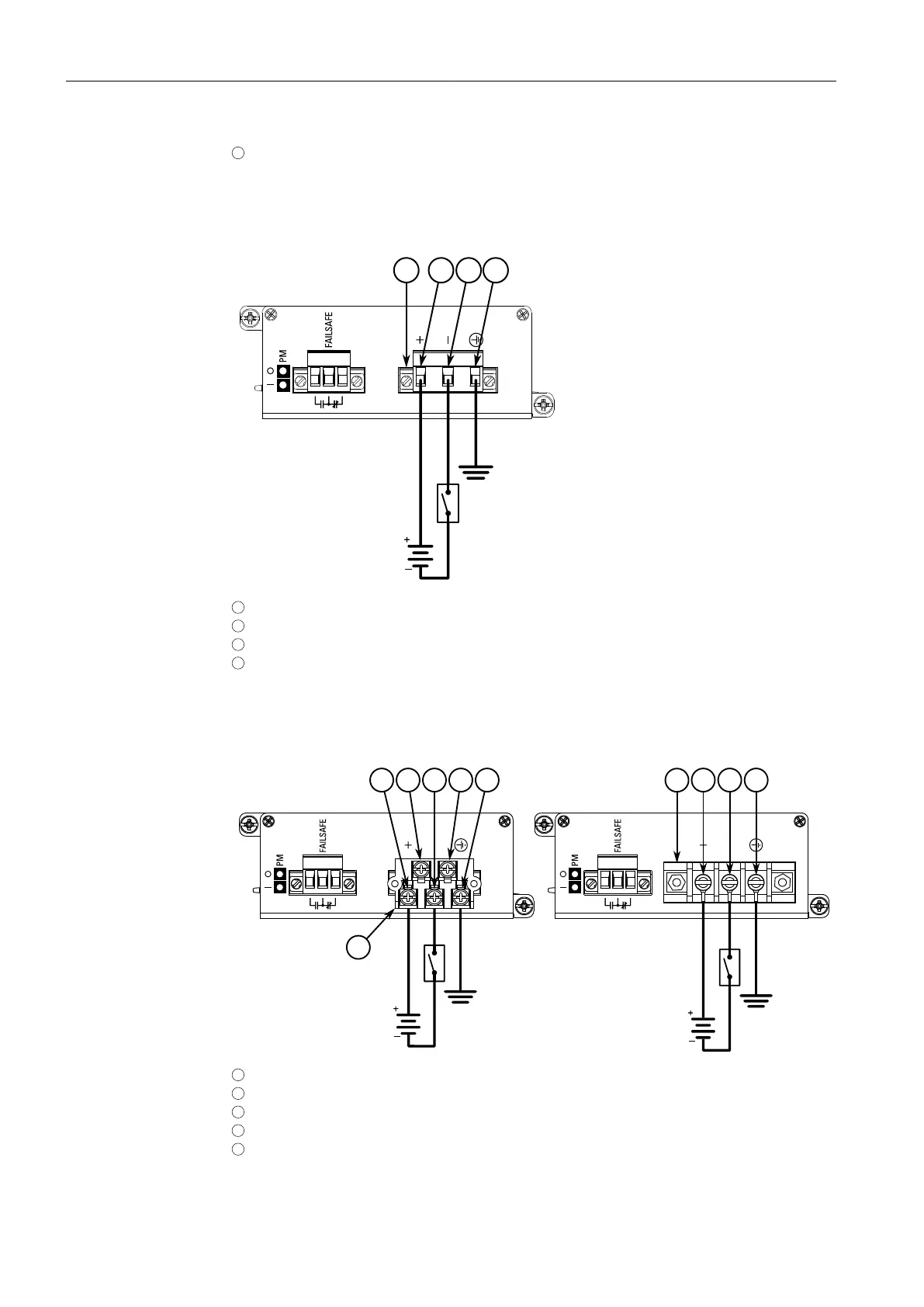

Figure2.10 DC Terminal Block Wiring – Screw Terminal Block for 12P, 24P and 48P Power
Supplies
4
1
3
2
1
European-style (Euroblock) Terminal Block
2
Positive (+) Terminal
3
Negative (-) Terminal
4
Ground Terminal
Figure2.11 DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for
-12P, -24P and -48P Power Supplies
3
4
5
6
2
5
1
4
1 6
1
Not Connected
2
Removable Screw Terminal Block
3
Non-removable Screw Terminal Block
4
Positive (+) Terminal
5
Negative (-) Terminal
RUGGEDCOM RX1524
Installation Manual, 04/2021, C79000-G8976-1487-02
17
