Siemens Actuators SAS.., SAT.. for valves CE1P4041en
Smart Infrastructure Functions and control 2019-04-09

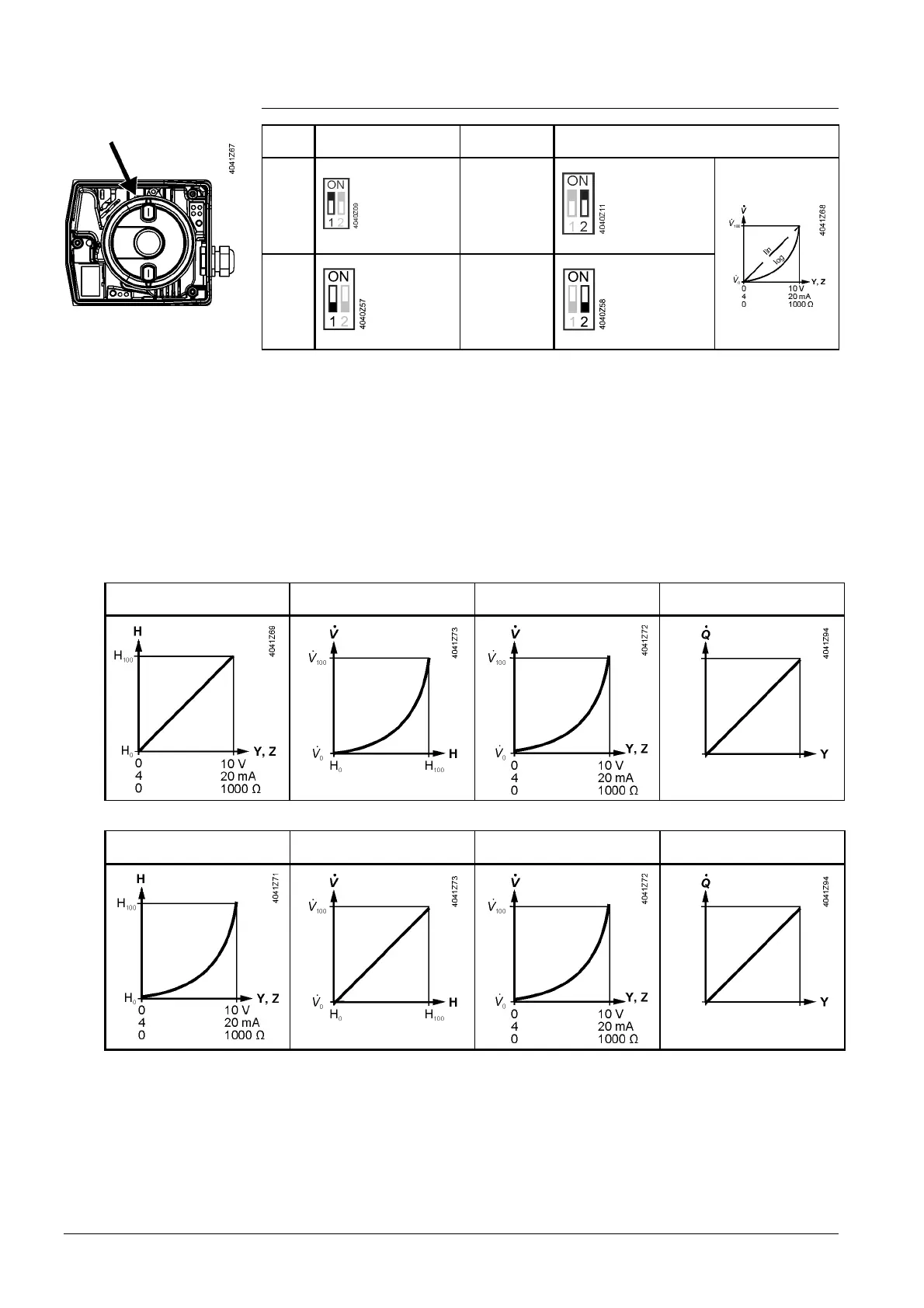

4.2.1 Positioning signal and flow characteristic selection
1)
Factory setting: All DIL switches set to OFF
Factory setting SAS..:
· Characteristic curve : log = Equal percentage (switch at "OFF")
· Positioning signal: DC 0...10 V (switch at "OFF")
Factory setting SAT..:
· Characteristic curve: lin = linear (switch at "ON")
· Positioning signal: DC 0...10 V (switch at "OFF")
Flow characteristic
Actuator SAS.. Valve VVG44.. / VXG44.. Valve & actuator combined
Valve & actuator & heat
exchanger combined
Y, Z Positioning signal
H Stroke
V˙ Volumetric flow
Q˙ Heat transfer capacity
Positioning signal
"Y"
Position
feedback "U"
Flow characteristic
ON
DC 4…20 mA DC 0…10 V
lin =
linear
OFF
ON
DC 0…10 V DC 0…10 V
log =
equal-
percentage
OFF
DIL switches
Note
Actuator SAT.. Valve VVG55.. / VVG549.. Valve & actuator combined
Valve & actuator & heat
exchanger combined
