SCALANCE M874, M876
Operating Instructions, 08/2018, C79000-G8976-C331-08
59
Dimension drawings
5
5.1
SCALANCE M874-2, M874-3
Dimensions are specified in mm.

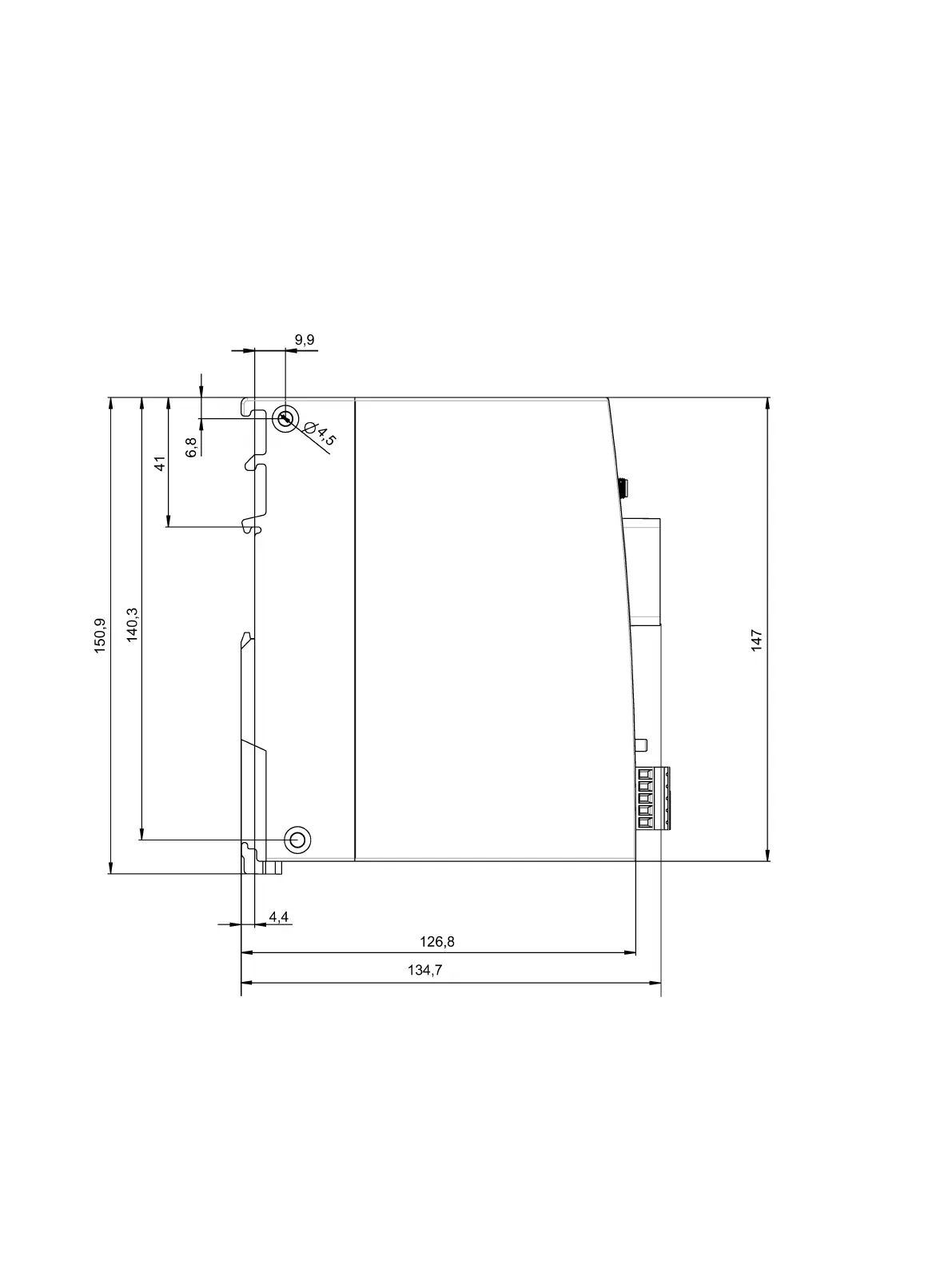

Figure 5-1 Side view M874-2 and M874-3
