SCALANCE M874, M876
Operating Instructions, 06/2015, C79000-G8976-C331-05
45
Dimension drawing
4
4.1
SCALANCE M874-2, M874-3
Dimensions are specified in mm.

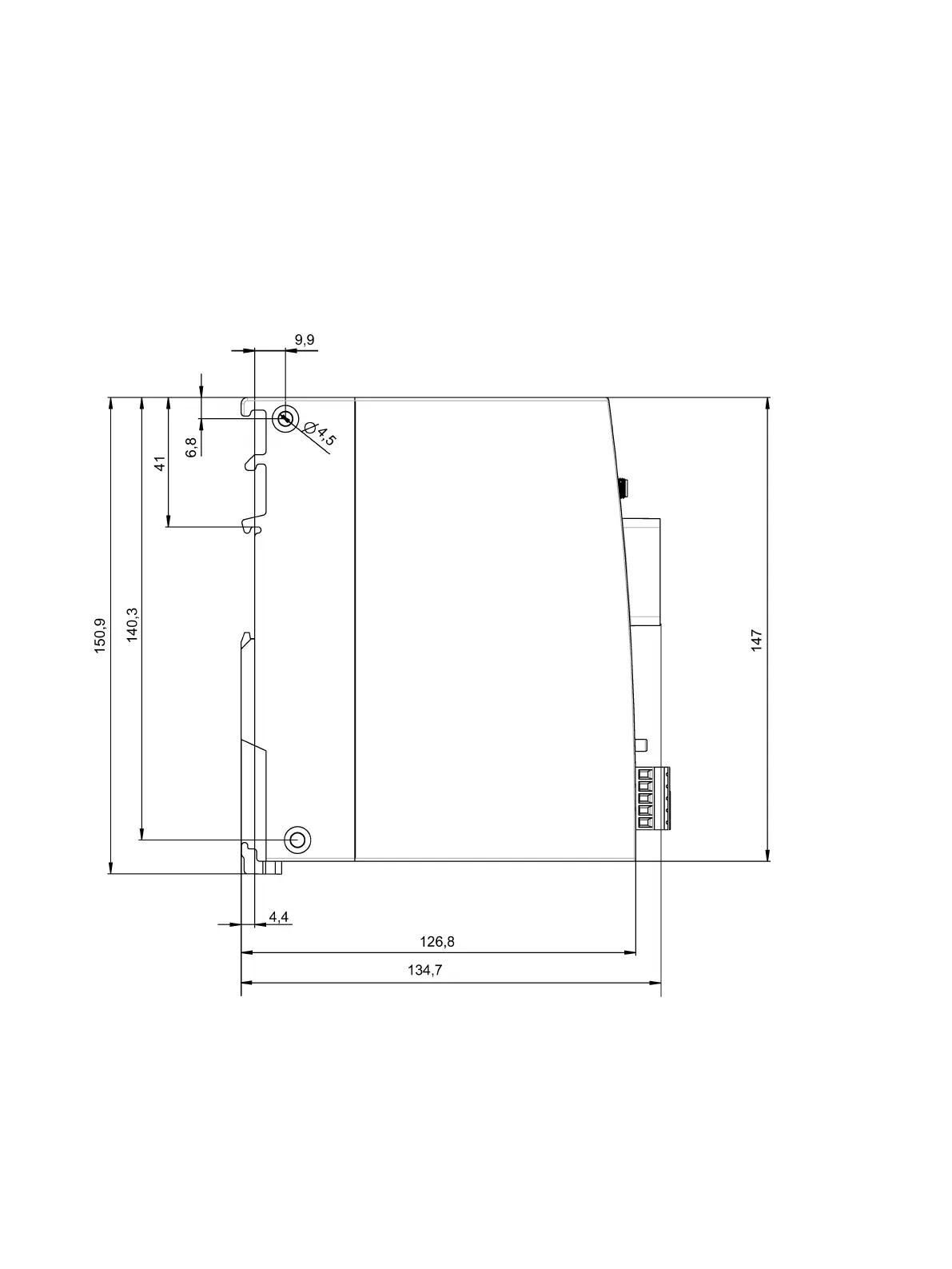

Figure 4-1 Side view M874-2 and M874-3
