Installation
4.2 Installation on a DIN rail
SCALANCE X-100 media converter
Operating Instructions, 04/2016, C79000-G8976-C346-02
29
Removal
To remove the device from the DIN rail, follow the steps below:
1. Disconnect all connected cables.
2. Pull out the terminal blocks for the power supply and the signaling contact.
3. Release the DIN rail catch on the bottom of the device using a screwdriver.
4. Pull the lower part of the device away from the DIN rail.

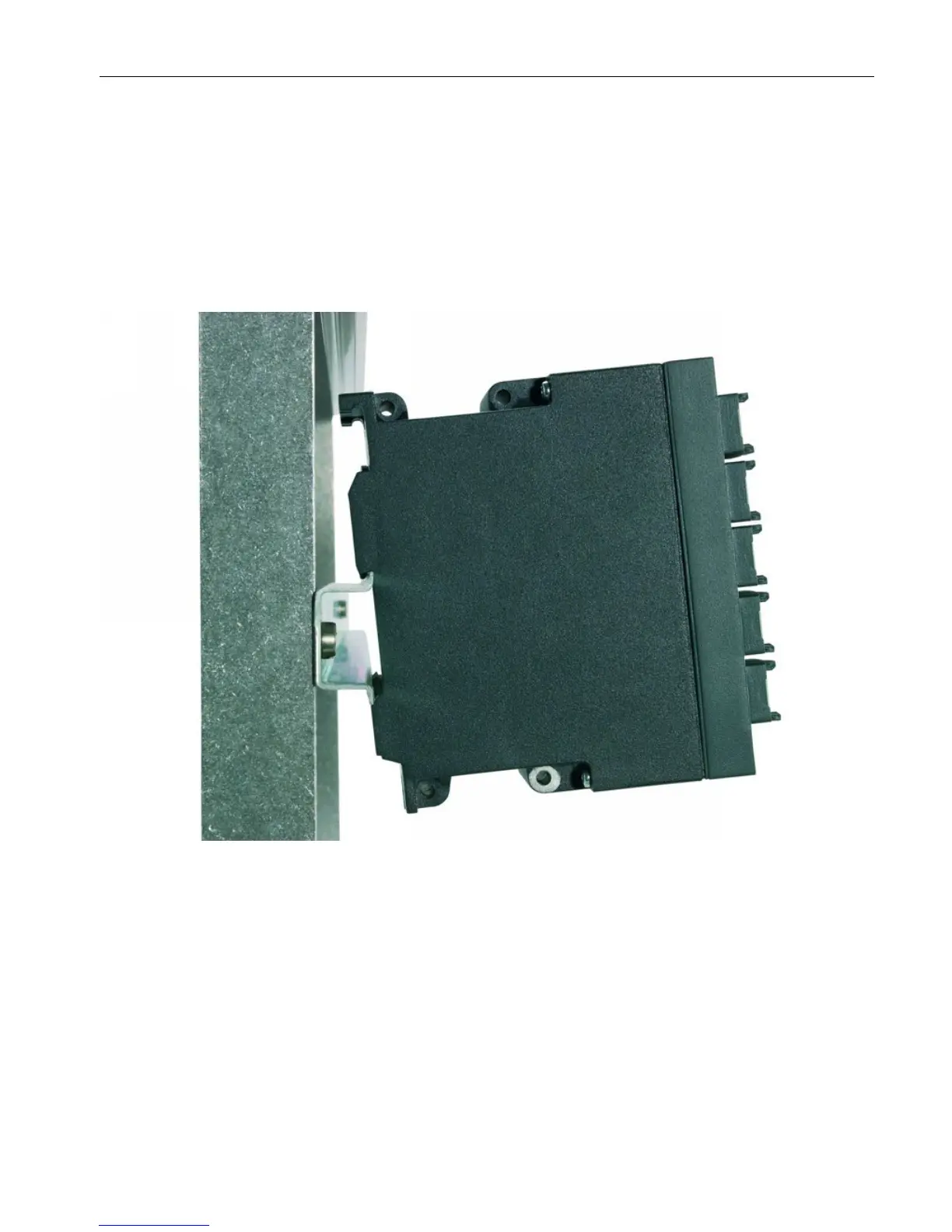

Figure 4-2 Removal from a 35 mm DIN rail
