Siemens SED2-3/32B User Manual

47/126
Siemens Building Technologies SED2 variable speed drives CM1U5192en
HVAC Products Commissioning 01.2002

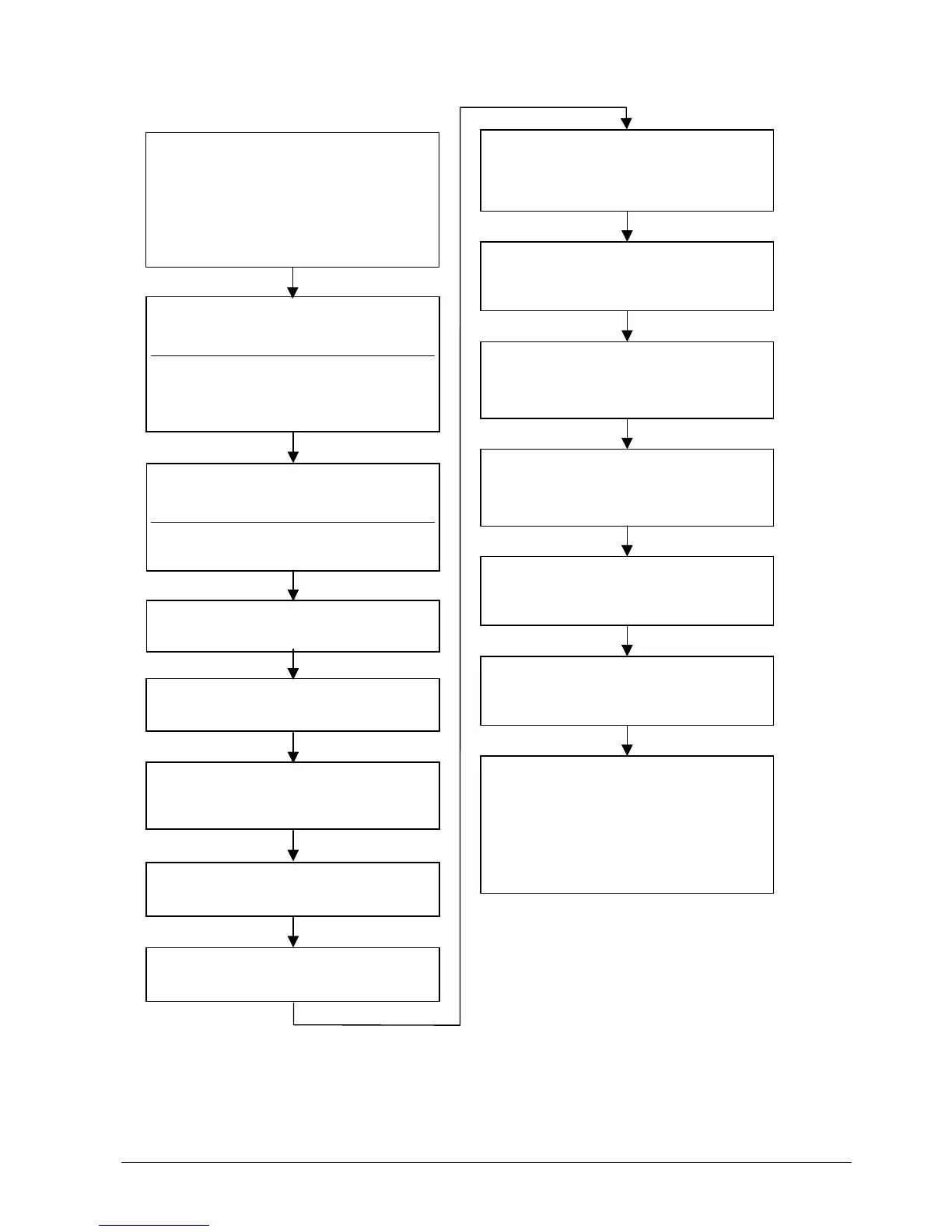

Quick commissioning flow chart
1
)
Motor-specific parameters – see drawing of motor rating plate below.
2
)
Indicates parameters incorporating detailed lists of possible settings for use in special site applications.
Refer to the engineering manual and operating instructions.
P0010 Start quick commissioning
0 Ready for operation
1 Quick commissioning
30 Factory setting
Note
Always reset P0010 to "0" before operating the motor.
If, after commissioning, P3900 = 1 is set, this is done
automatically.
P0100 Operation for Europe/North America
0 Power in kW; f default 50 Hz
1 Power in hp; f default 60 Hz
2 Power in PS; f default 60 Hz
Note
Use the DIP switch for settings 0 & 1 to allow for a
permanent setting.
P0305 Rated motor current
1
)
0–2xVSDratedcurrent(A)
Rated motor current (A) from rating plate
P0307 Rated motor power
1
)
0 kW – 2000 kW
Rated motor power (kW) of rating plate.
If P0100 = 1, the values are output in hp
P0310 Rated motor frequency
1
)
12 Hz – 650 Hz
Rated motor frequency (Hz) from rating plate
P0700 Selection of command source
2
)
(on / off / reverse)
0Factorysetting
1 Basic operator panel
2 Terminal / digital inputs
P1000 Selection of frequency setpoint
2
)
0 No frequency setpoint
1 BOP frequency control ↑↓
2 Analog setpoint
P
1080
M
in. motor frequency
Sets the minimum motor frequency (0 – 650 Hz) at
w
hich the motor runs irrespective of the frequency
setpoint. The value set here applies to both directions
of rotation.
P
1082
M
ax. motor frequency
Sets the maximum motor frequency (0 – 150Hz) at
w
hich the motor runs irrespective of the frequency
setpoint. The value set here applies to both directions
of rotation.
P
1120
R
amp-up time
0s–650s
Time taken for the motor to accelerate from standstill
to maximum motor frequency.
P
1121
R
amp-down time
0s–650s
Time taken for the motor to decelarate from maximum
motor frequency to standstill.
P
3900
E
nd quick commissioning
0 No quick commissioning (factory setting)
1 End quick commissioning with motor calculation
and resetting all other parameters to the factory
setting (recommended)
2 End quick commissioning with motor calculation
and I/O reset (recommended)
3 End quick commissioning with motor calculation
but without I/O reset
P0304 Rated motor voltage
1
)
10 V – 2000 V
Rated motor voltage (V) from rating plate
P0311 Rated motor speed
1
)
0 – 40.000 U/min
Rated motor speed (U/min) from rating plate
P0003 Parameter access level
0 Customized Parameter List; see P0013
1 Standard: Access to most commonly used
parameters (factory setting)
2 Extended: Extended access, e.g., to VSD
I/O functions
3 Expert: For experienced users only
4 Service: For authorized service personnel only
(password protected)
