Dimension drawing
SCALANCE WxM766
Operating Instructions, 03/2022, C79000-G8976-C617-03
77

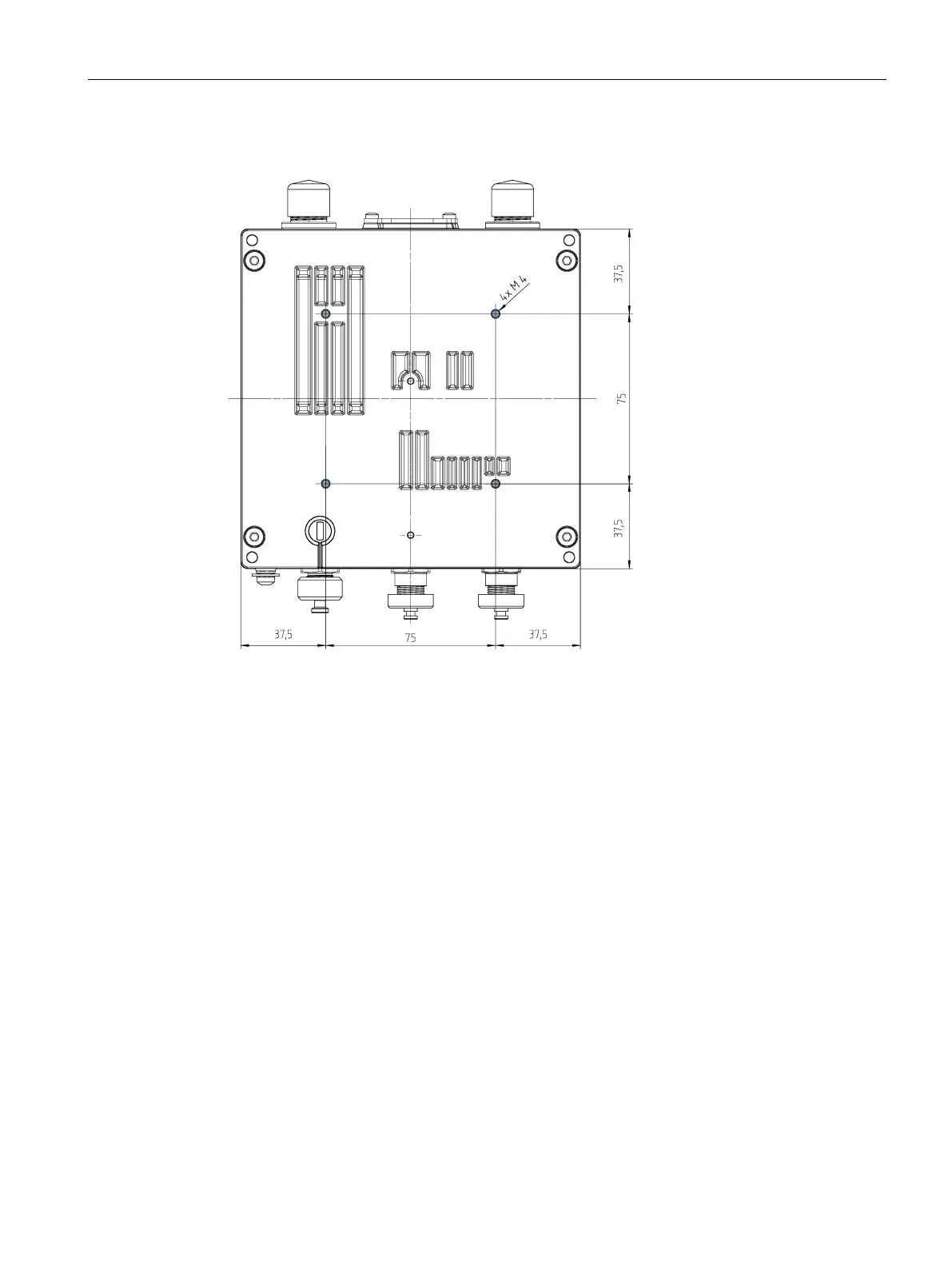

Rear view
Rear view with bore holes for VESA bracket 75 x 75, 4x M4, thread depth 8.5 mm
