Siemens SIMATIC Rack PC IL 40

Commissioning
SIMATIC Rack PC IL 40, Getting Started
A5E00171493-02
2-9

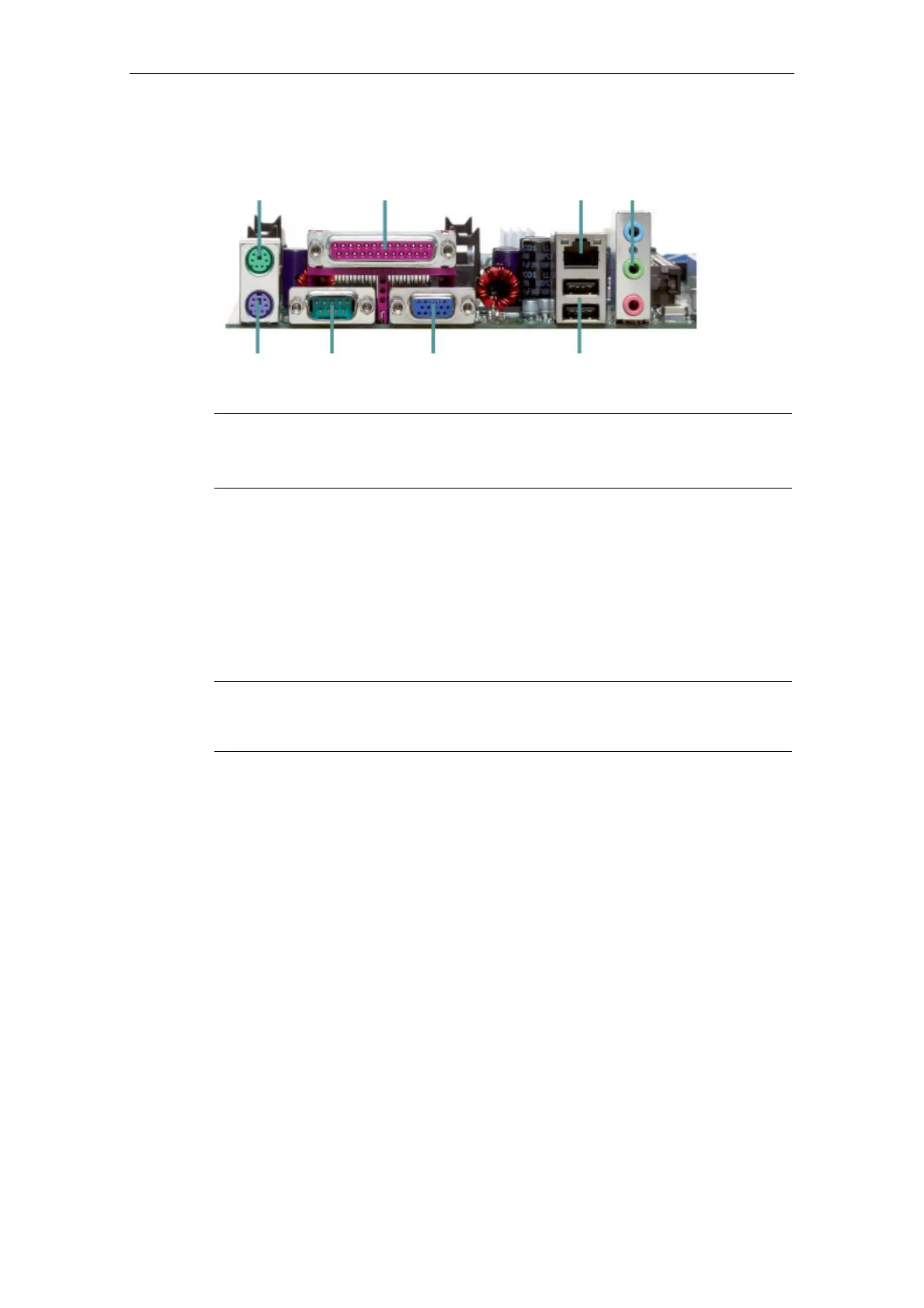

2.6 Connecting Peripheral Units
PS/2 Mouse LAN
Parallel
Audio
PS/2
Keyboard
VGA
Serial
USB A&B
Notice
When connecting peripheral units, ensure that the components have industrial
capability according to EN 50082-2.
Connecting a PS/2 Keyboard
A PS/2 keyboard of your choice can be connected to the Rack PC IL.
1. Separate the PC from the mains.
2. Insert the plug of the PS/2 keyboard.
3. Reconnect the PC to the mains.
Caution
It is recommended that a keyboard with straight keyboard connector is used, so
that the connector does not obscure adjacent ports.
Connecting a USB Keyboard
You can find out how to connect a USB keyboard in Connecting USB devices.
Using a Mouse
You can connect a PS/2 mouse as well as a USB mouse to the Rack PC IL. The
USB port is only supported by Windows 2000 and Windows XP.
