Introduction to the example
1.2 Structure and task of the example
S7-1500R/H redundant system
Getting Started, 10/2018, A5E44910930-AA
7

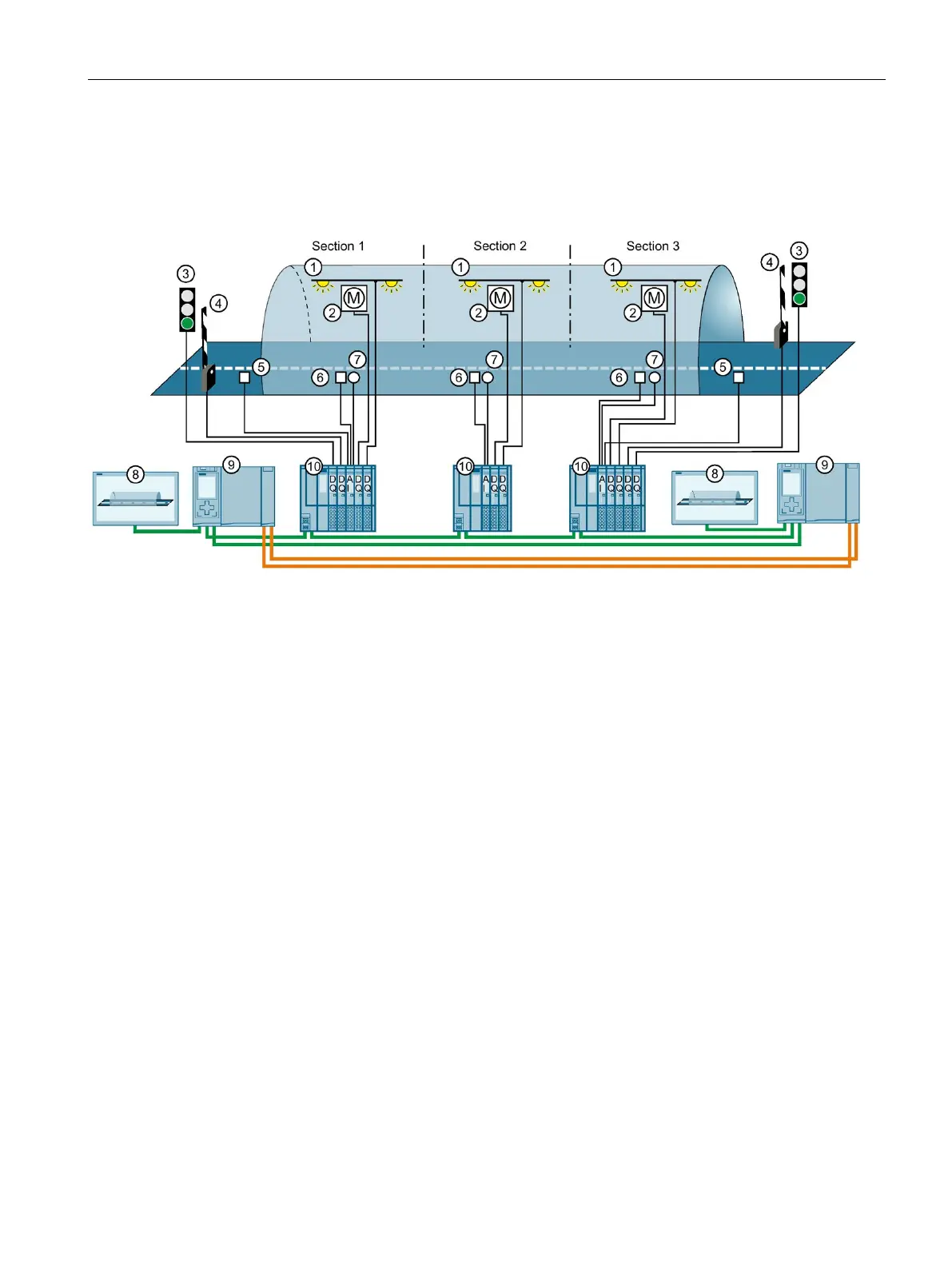

Technology diagram
The technology diagram below shows the structure of the automation solution.
①
Tunnel lighting
②
Fan
③
Traffic lights
④
Barriers
⑤
Outdoor light sensors
⑥
Turbidity sensors
⑦
Air-quality sensors
⑧
HMI devices
⑨
H-CPUs
⑩
IO devices for tunnel sections 1 to 3
Figure 1-2 Technology diagram
