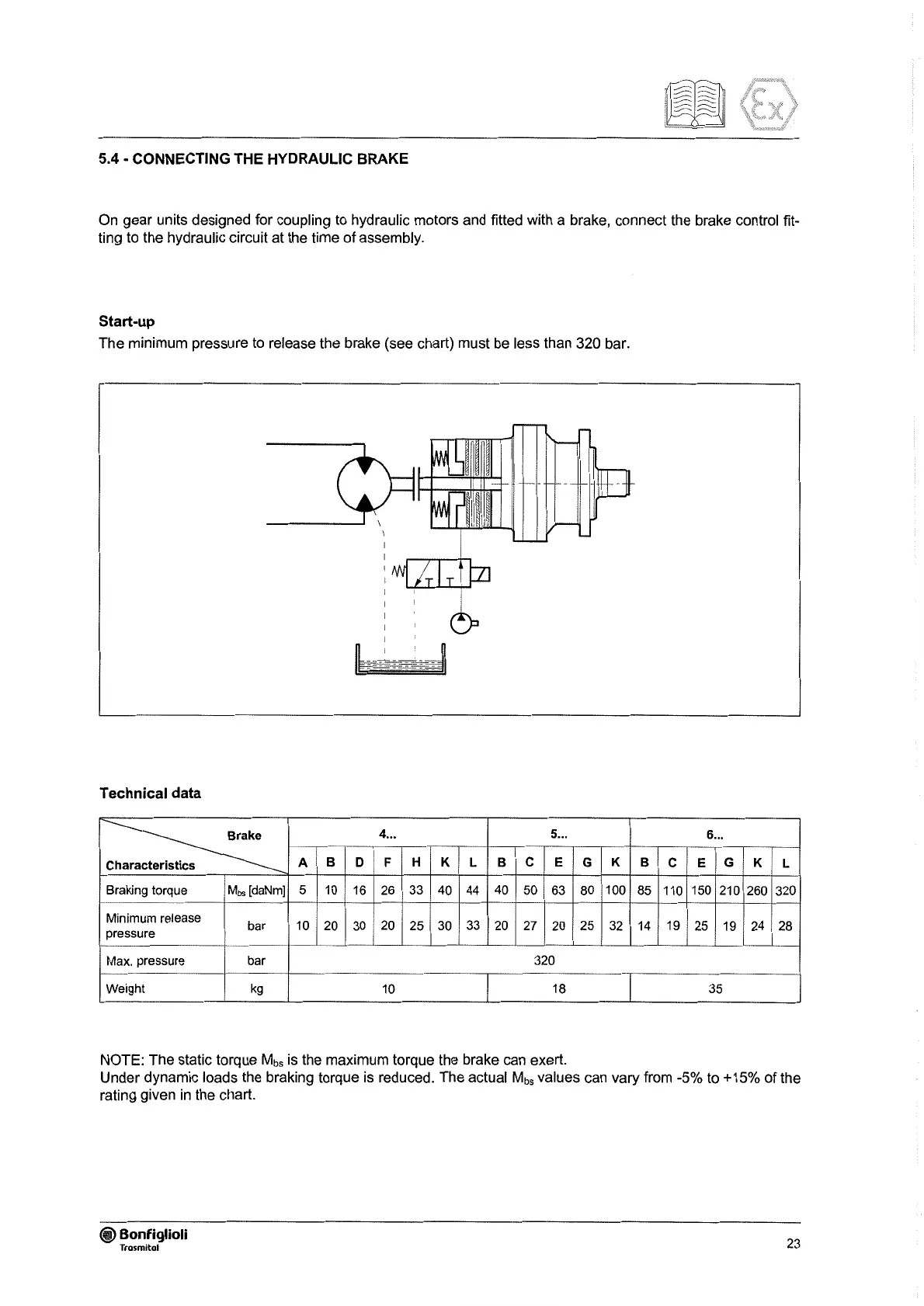

5.4 - CONNECTING THE HYDRAULIC BRAKE
On gear units designed for coupling to hydraulic motors and fitted with a brake, connect the brake control fit-
ting to the hydraulic circuit at the time
of
assembly.
Start-up
The minimum pressure to release the brake (see chart) must be less than 320 bar.
Technical data
~
4 ...
5 ...
6
...
A
B
D F H K
L
B c E
G
K B
c E G
K L
c
Braking torque
Mbs
[daNm] 5
10
16
26
33
40 44
40
50
63
80
100
85
110
150
210 260
320
Minimum release
bar
10
20
30
pressure
20
25
30
33
20
27
20 25
32
14 19
25
19
24
28
Max. pressure bar
320
Weight kg
10 18
35
NOTE: The static torque Mbs is the maximum torque the brake can exert.
Under dynamic loads the braking torque is reduced. The actual
Mbs values can vary from -5% to +15% of the
rating given
in
the chart.
