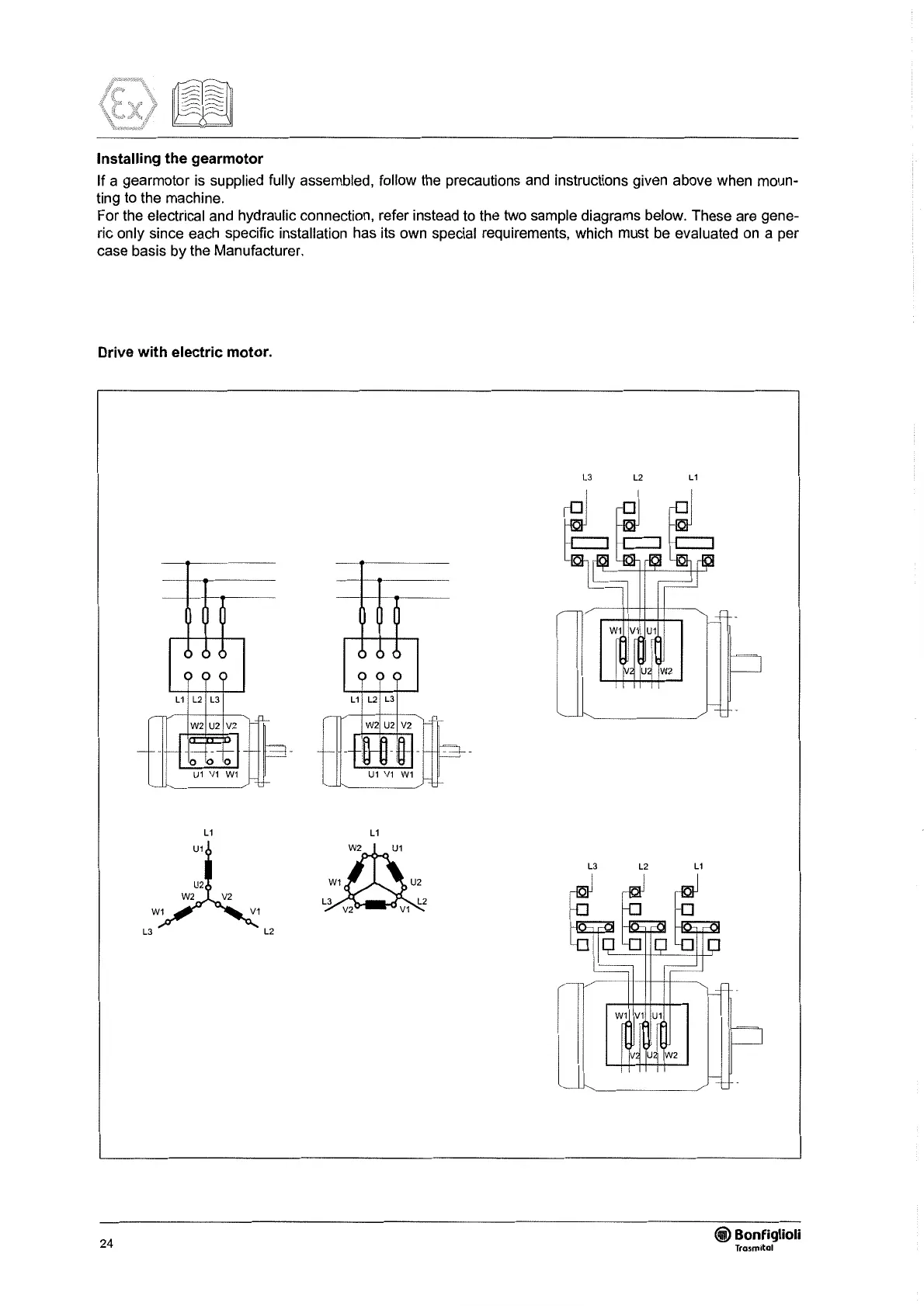

lnstalling the gearmotor
lf
a gearmotor is supplied fully assembled, follow the precautions and instructions given above when moun-
ting to the machine.
For the electrical and hydraulic connection, refer instead to the two sample diagrams below. These are gene-
ric only since each specific installation has its own special requirements, which must
be
evaluated
on
a per
case basis by the Manufacturer.
Drive with electric motor.
L3
L2
L1
W1
V1
U1
U2
W2
L1
L1
U1
L3 L2
L1
U2
L2
24
