Position of connectors

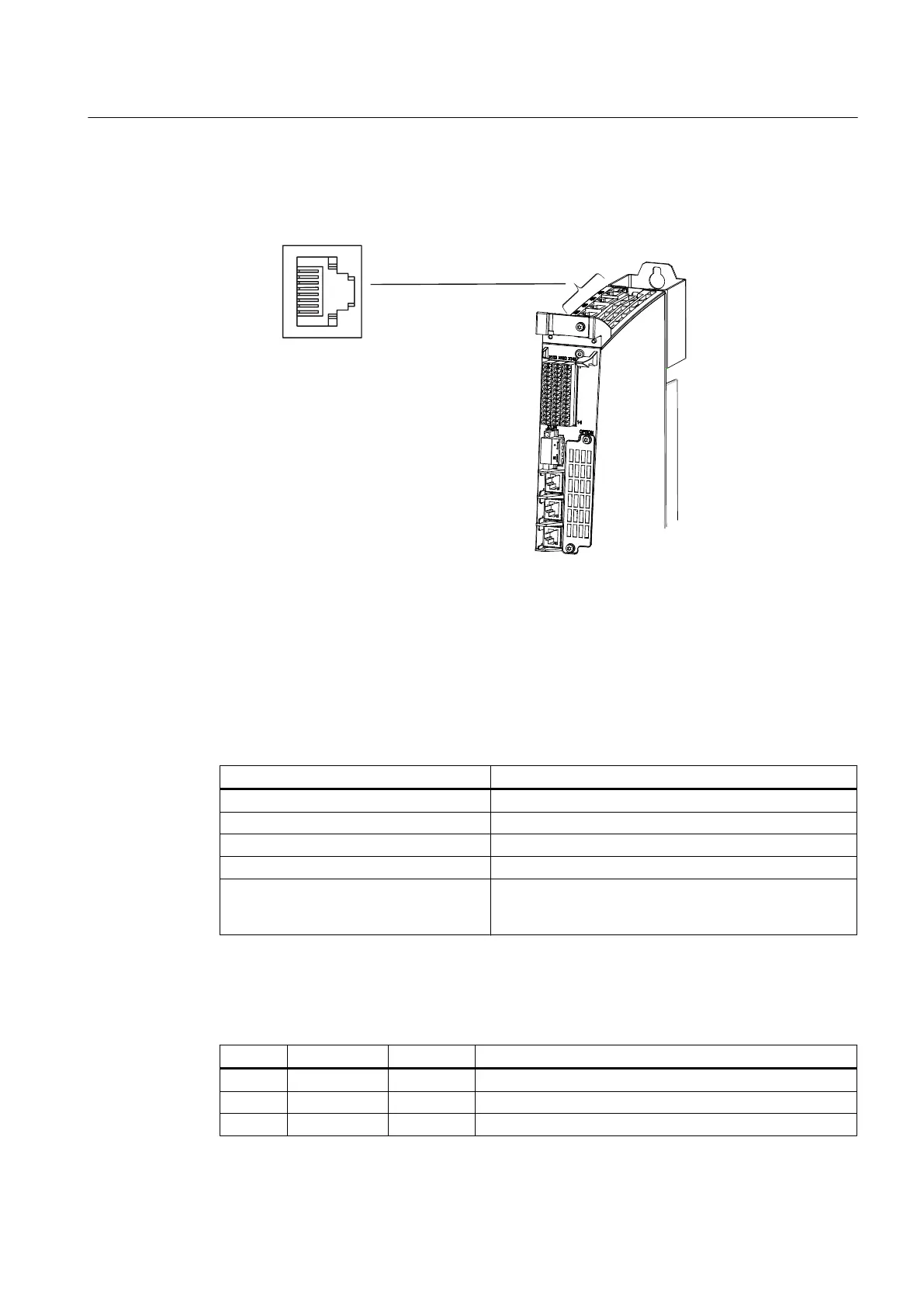

Figure 4-1 The position of the DRIVE‑CLiQ interfaces on the D4x5-2 (example of D445-2 DP/PN)
Characteristics
Table 4-3 DRIVE-CLiQ interface X100 – X105 (D425-2: Only X100 - X103)
Characteristic Type
Connector type DRIVE-CLiQ connector (RJ45 socket)
Cable type DRIVE-CLiQ standard (inside the control cabinet)
Cable type MOTION CONNECT (outside the control cabinet)
Max. cable length 100 m
Dust protection filler plugs for sealing
unused DRIVE-CLiQ ports
5 filler plugs contained in the D4x5-2 scope of delivery
Filler plugs (50 pcs) order number:
6SL3066-4CA00-0AA0
DRIVE-CLiQ pin assignment
Table 4-4
DRIVE-CLiQ interface X100 – X105 (D425-2: Only X100 - X103)
PIN Signal name Signal type Meaning
1 TXP O Transmit data +
2 TXN O Transmit data -
3 RXP I Receive data +
Interfaces
4.2 DRIVE-CLiQ interfaces
SIMOTION D4x5-2
Manual, 04/2014 53
