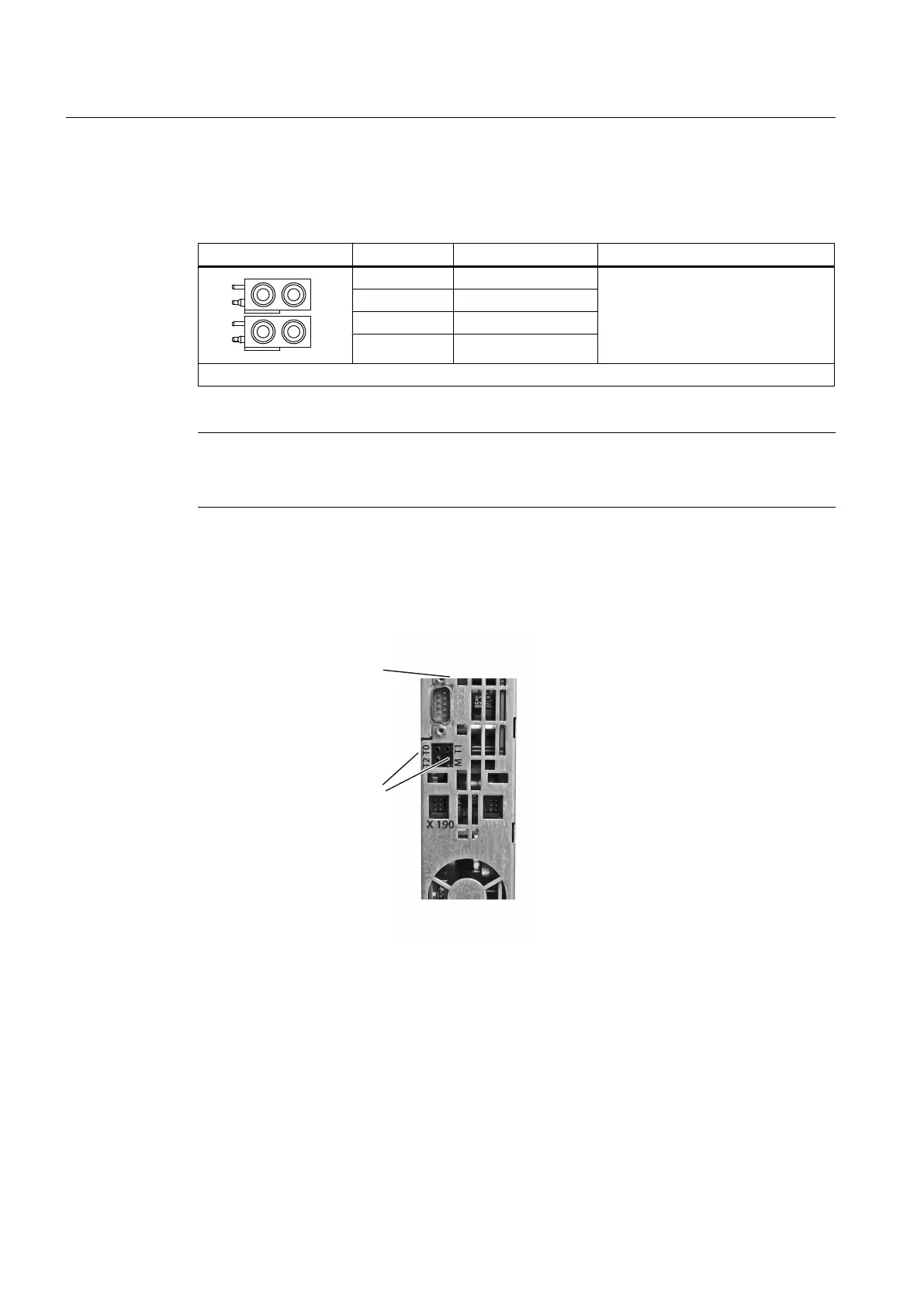

Interface assignment
Table 4-19
Measuring sockets T0, T1, T2
Socket Function Technical specifications
T0 Measuring socket 0 Voltage: 0 V to 5 V
Resolution: 8 bits
Load current: Max. 3 mA
Continuous short-circuit-proof
Reference potential is G terminal
T1 Measuring socket 1
T2 Measuring socket 2
M Ground
The measuring sockets are suited for multiple-spring wire connectors with a diameter of 2 mm.
Note
The measuring sockets support commissioning and diagnostic functions. Connection for
normal operation is not permitted.
Measuring socket position
)URQWRIWKHFRQWUROXQLW
0HDVXULQJVRFNHWV
x 191
Figure 4-10 Measuring socket position
Interfaces
4.9 Measuring sockets
SIMOTION D4x5-2
74 Manual, 04/2014
