● Directly on the SIMOTION D module (fan/battery module)
●
Via the option slot (TB30, CBE30-2)
● Via the DRIVE‑CLiQ interfaces (Terminal Modules, Control Unit adapter, ...).
7%RU&%(
RSWLRQDO
'RXEOHIDQ
EDWWHU\PRGXOH
'5,9(&/L4LQWHUIDFHV
IRUWKHFRQQHFWLRQRIV\VWHP
FRPSRQHQWV
2SWLRQVORWZLWKFRYHU
IRUWKHDFFHSWDQFHRI
7%RU&%(

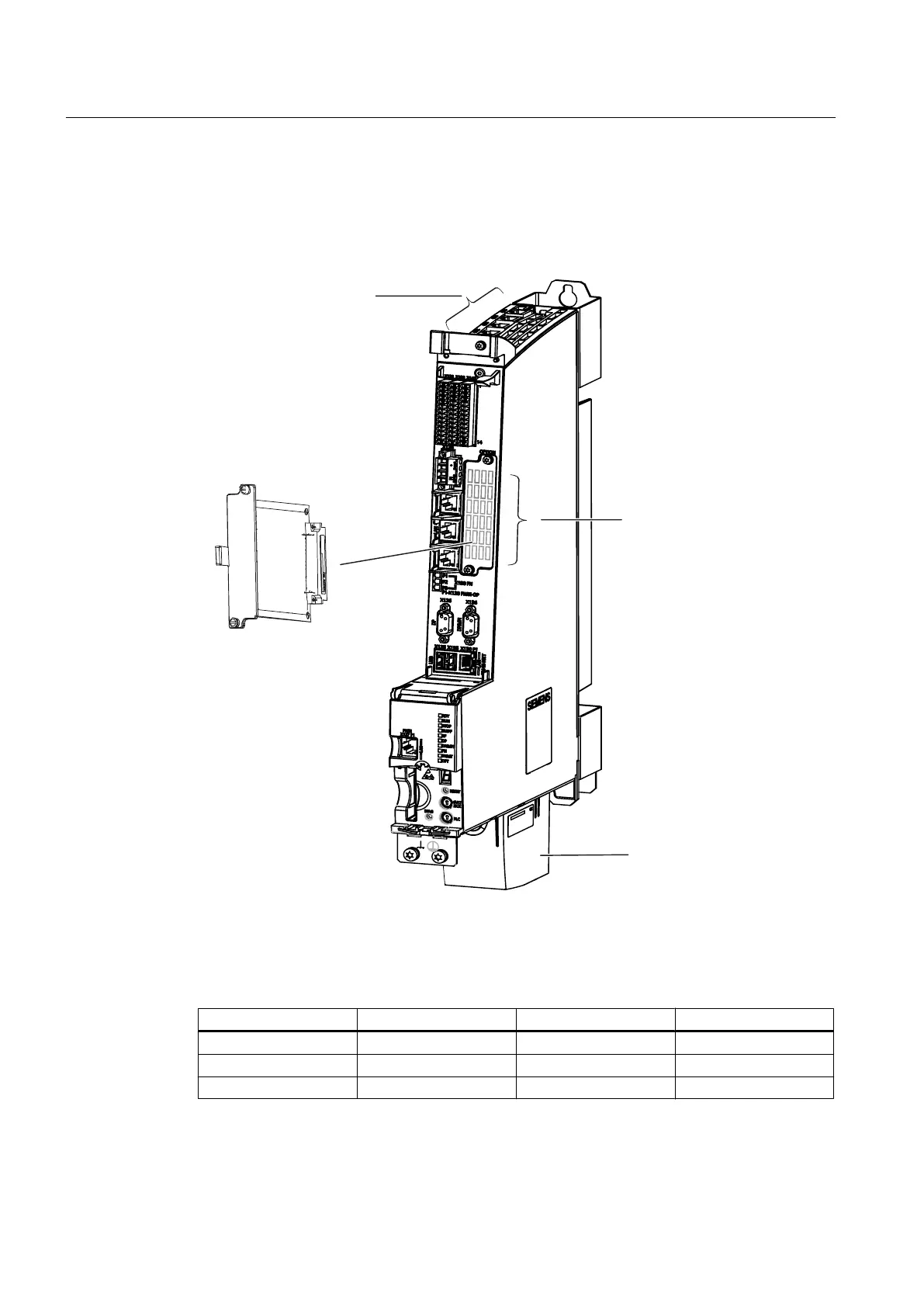

Figure 7-1 Connection of supplementary system components on the D4x5-2
Table 7-1 Applicable option modules
Module Order No. D4x5-2 DP D4x5-2 DP/PN
TB30 6SL3055-0AA00-2TA0 Yes Yes
CBE30-2 6FC5312-0FA00-2AA0 No Yes (as of V4.3)
CBE30 6FC5312-0FA00-0AA0 No No
Supplementary system components
7.1 Connection options overview
SIMOTION D4x5-2
96 Manual, 04/2014
