Commissioning (software)
6.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
162 Commissioning and Hardware Installation Manual, 02/2012
Procedure
While executing the wizard you will be prompted to perform, for example, the following
configuration steps:
1. In the "Option Module" dialog box, select whether you want to use a TB30 as option
module.

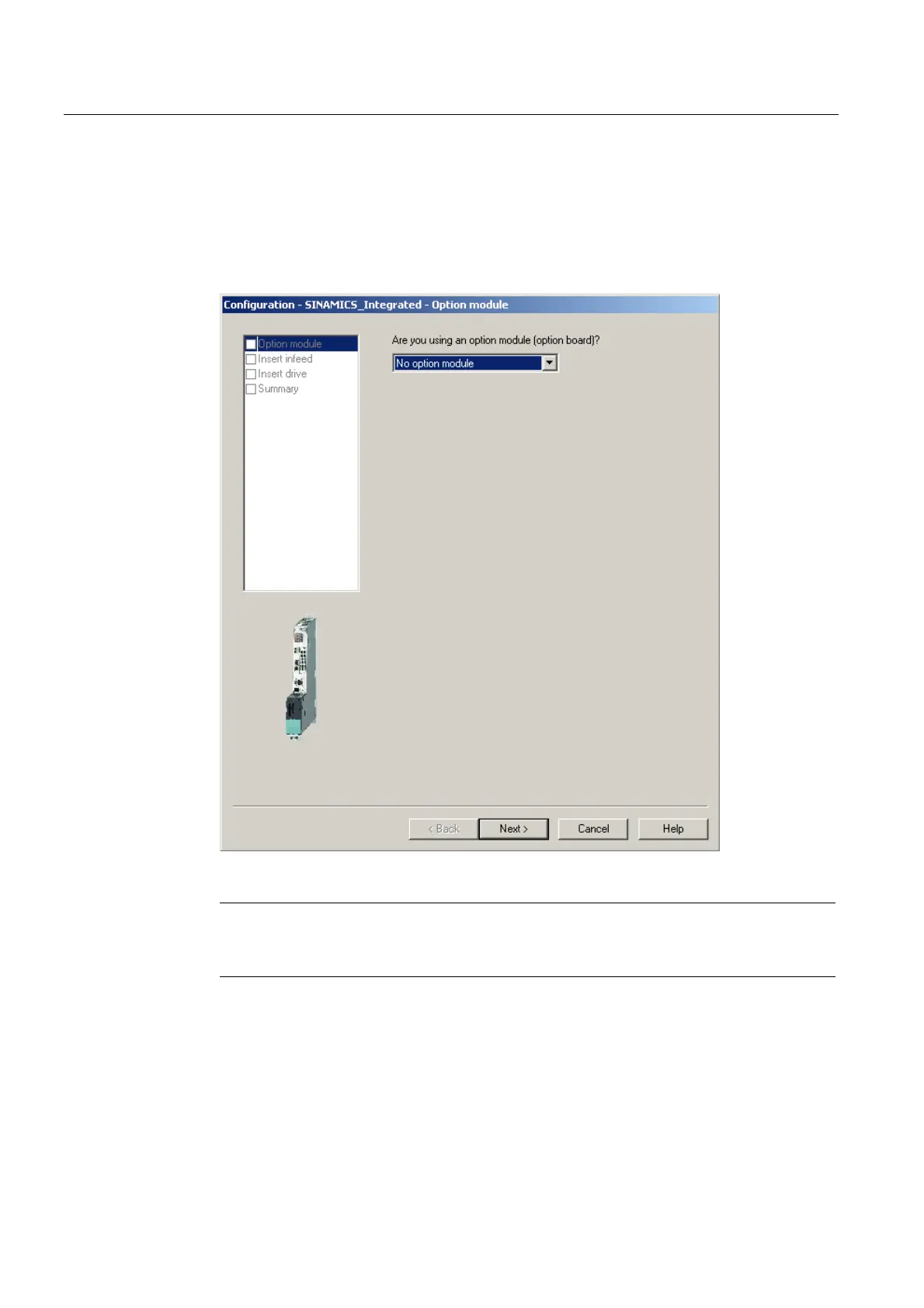

Figure 6-1 Selecting an option module
Note
The TB30 is displayed as drive object below the control unit in the project navigator and
can be configured there.
