Commissioning (software)

6.2 Performing the configuration for the D4x5-2 offline

SIMOTION D4x5-2

166 Commissioning and Hardware Installation Manual, 02/2012

5. You can make additional settings for the infeed in the "Infeed Drive Object - Additional

Data" dialog box.

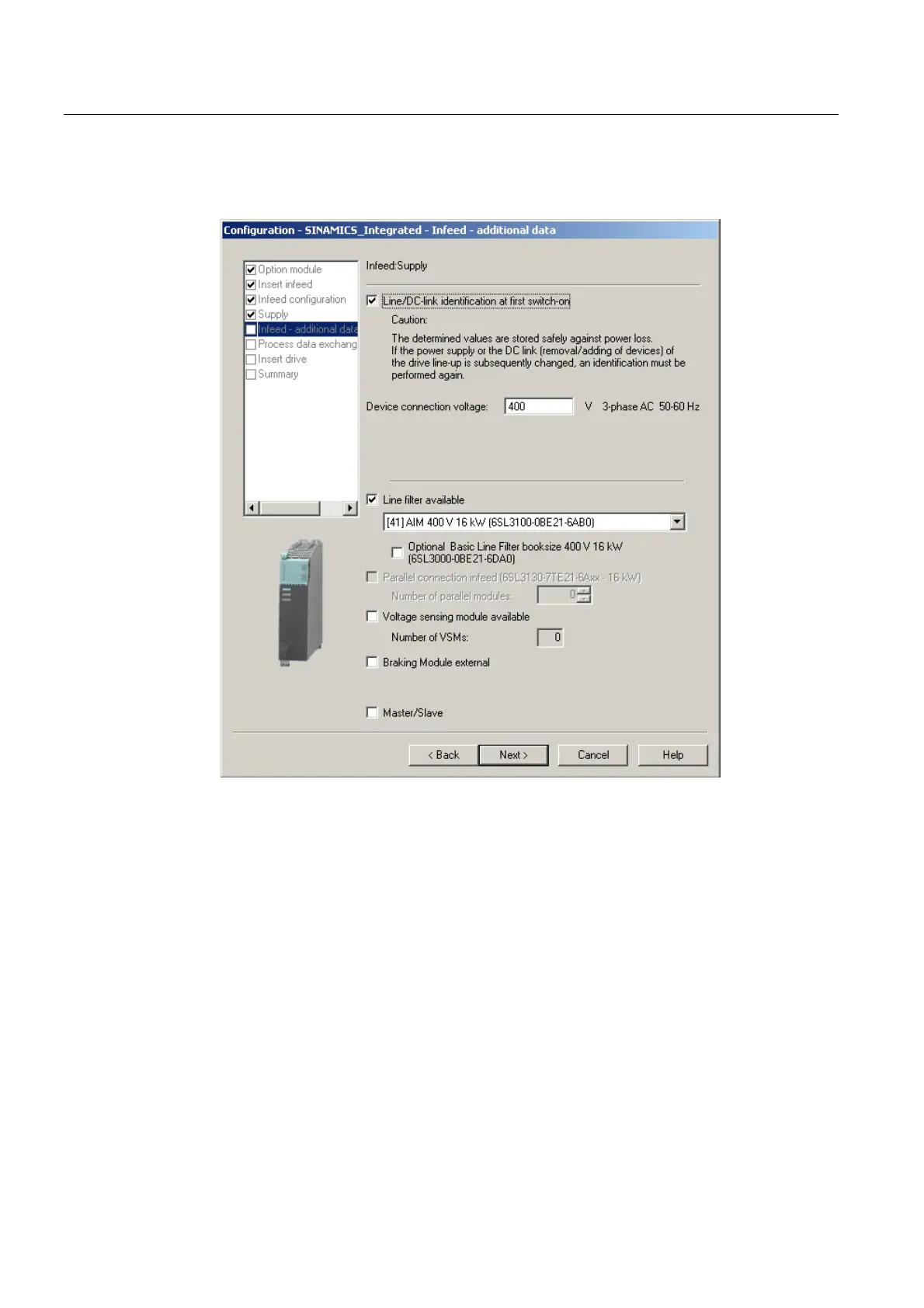

Figure 6-5 Making settings for the infeed
