Commissioning (software)
6.3 Performing an online configuration for the D4x5-2
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 02/2012
189
4. The drive object types can now be selected via a further dialog box.

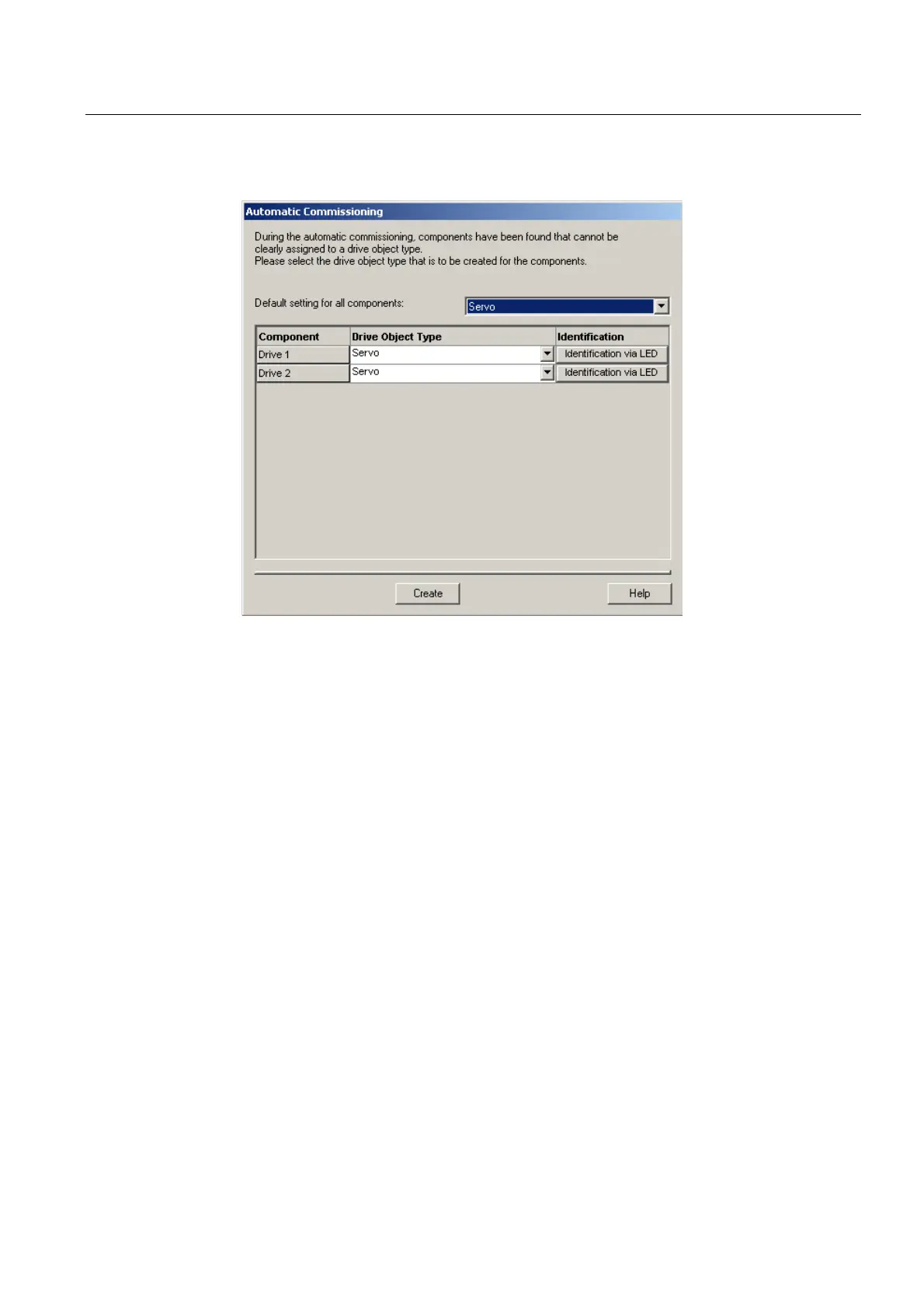

Figure 6-23 Selecting the drive object type
5. Select whether a servo- or vector-type drive object is to be used.
6. Click "Create" to start the automatic configuration. As soon as automatic commissioning
has been run through, an upload operation (Load to PG) is performed automatically.
