Installation 12.98
6SE7087-7NP87-2DD0 Siemens AG
4-2 Operating Instructions SIMOVERT MASTERDRIVES
Mounting
surface
100 mm
100 mm
Cooling air

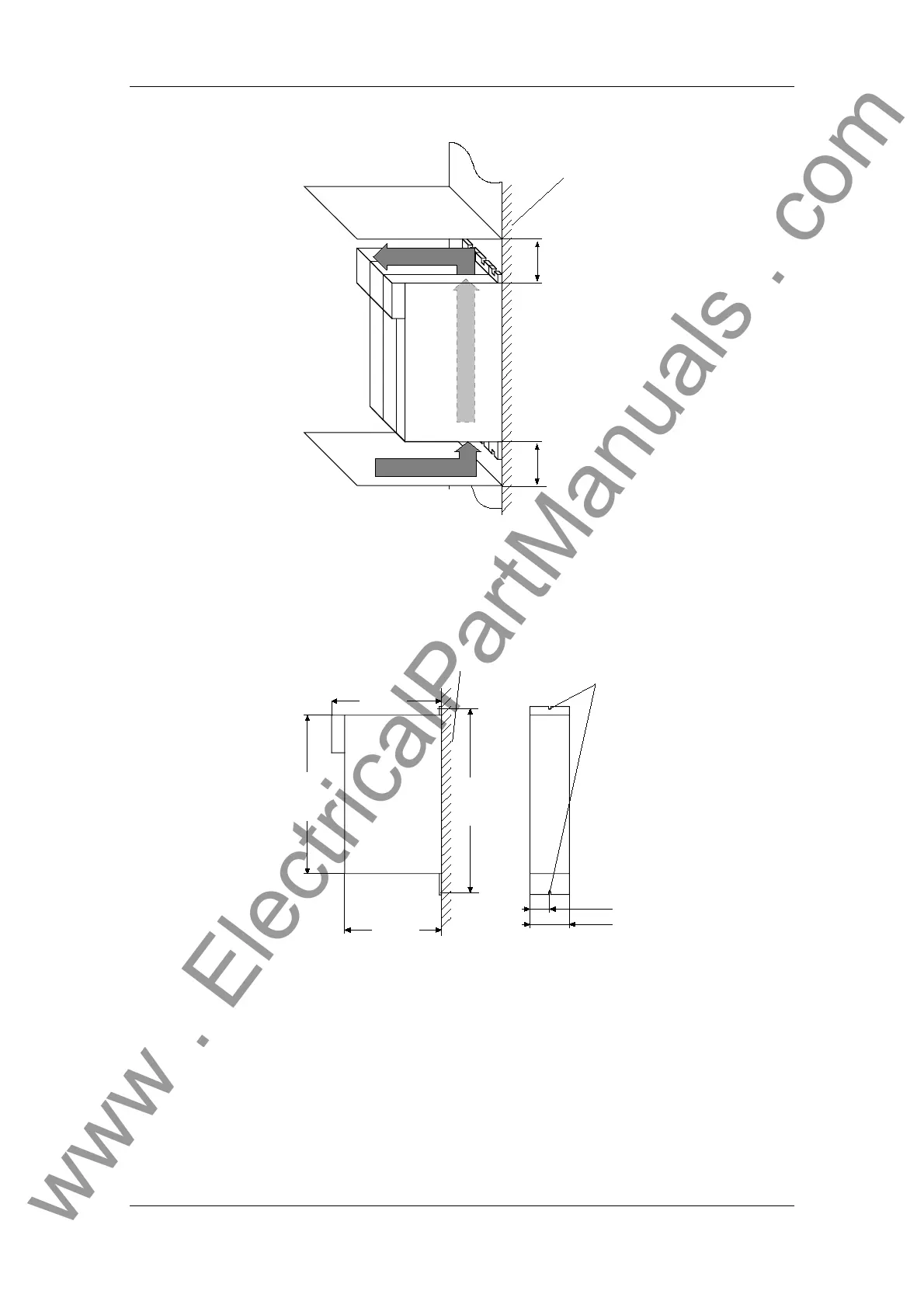

Fig. 4-1 Minimum clearances for cooling
The unit is mounted directly to a mounting surface. Fixing is by means
of two M5 screws.
Side view
Front view
(without front panel)
220 mm
360 mm
Mounting surface
Cutouts for
M5 screws
414 mm
250 mm
45 mm
90 mm
Fig. 4-2 Dimension Drawing
Installation
