Assembling
Mounting kit to increase the degree of protection to IP20
Hardware Installation Manual, 02/2021, A5E34871844B
15
Attach the upper cover using cable ties
To fully reach degree of protection IP20, the upper cover must only be able to be released
using tools. For example, this can be realized by establishing a snap connection using a 5 mm
wide cable tie.

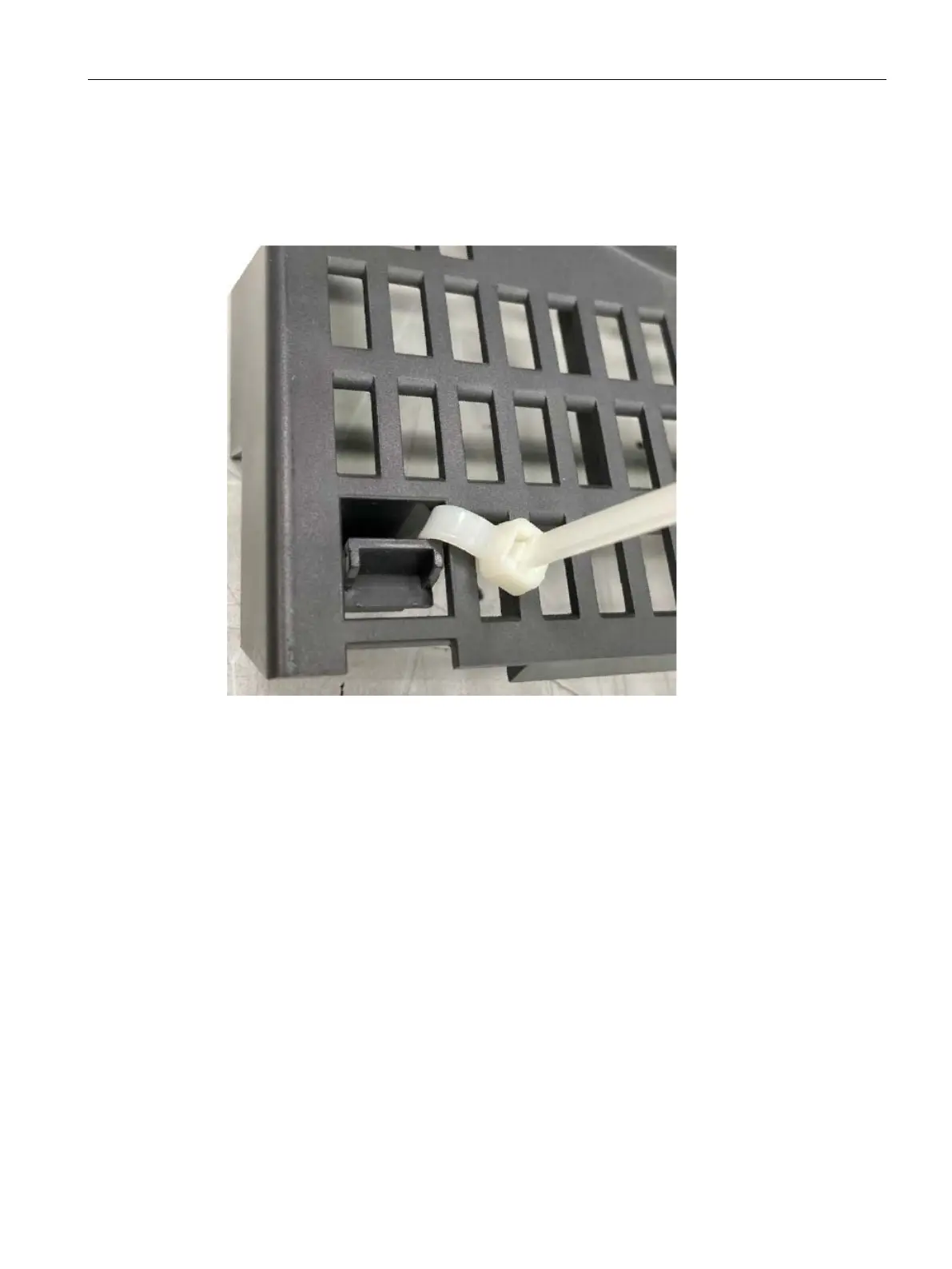

Figure 3-1 For example, this can be realized by establishing a snap connection using a cable tie.
