Siemens SINAMICS PCS - Model Structure

Implementation
4.3 Model structure
SINAMICS PCS simulation model
16 Operating Instructions, 10/2020, A5E50173895A
4.3 Model structure

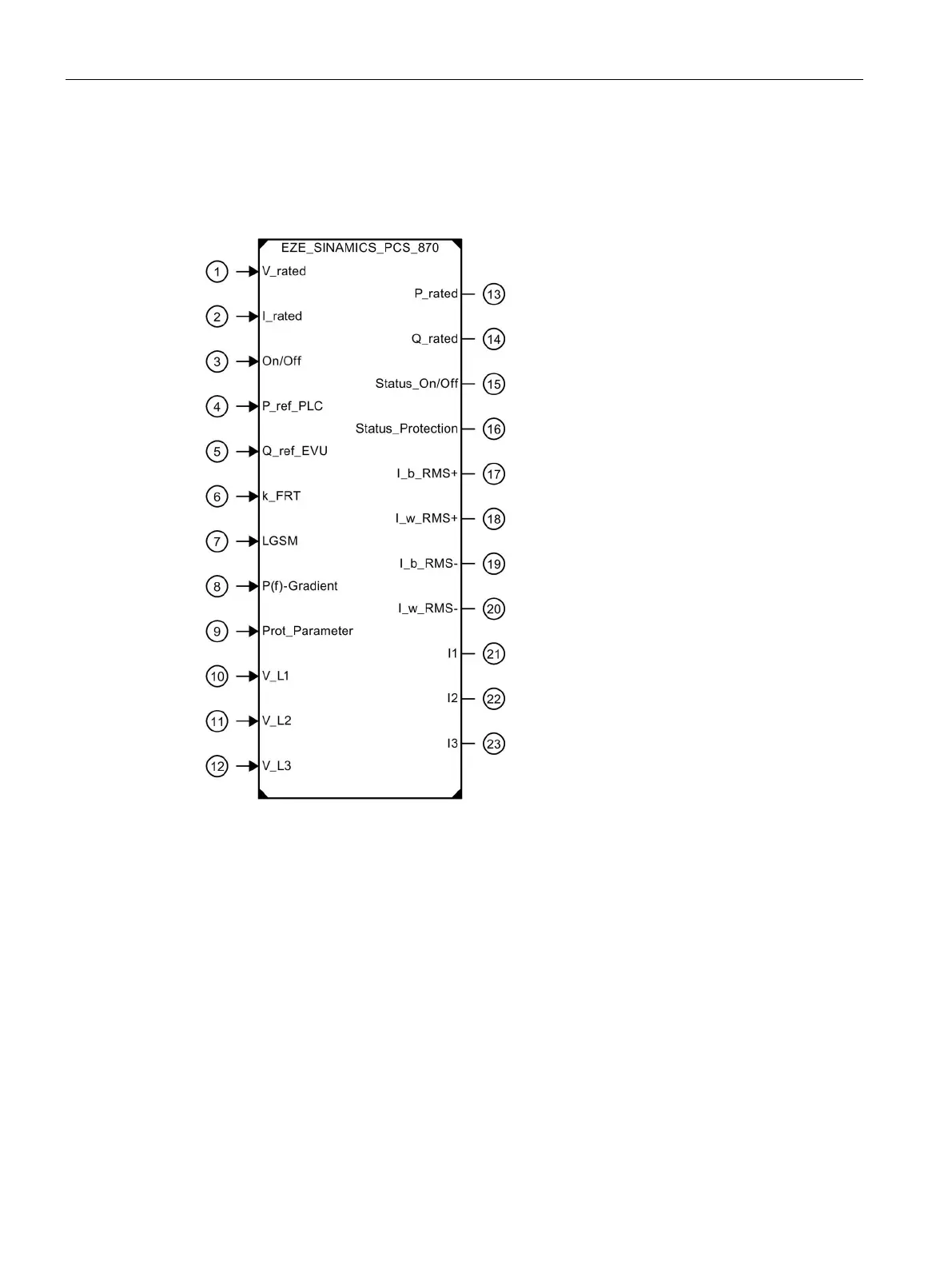

The model block for the power generating unit with its inputs and outputs is shown in the
following diagram.
Figure 4-1 Model block of the power generating unit in Simulink
