Details for ordering
10
Siemens Building Technologies
EN
Fire Safety & Security Products 01.2009
4 Details for ordering
Type Order No. Designation Weight
SISTORE AX4 Lite 250/100 S54569-C50-A13 SISTORE AX4 Lite, 250 GB, 100 ips 4.5 kg
5 Scope of delivery
z Digital video recorder
z Power cord
z User Manual, Multilingual RAS Software and User Manual on CD-ROM
z Multilingual Installation Guide
z Infrared remote control
6 Installation
CAUTION
Always disconnect the power cable and other cables from the main power
supply before installing the device.
The SISTORE AX4 Lite is designed to work with a variety of other equipment. The
basic system will consist of a video camera and system monitor.
Refer to the User Manual CD for details of installing each type of equipment.

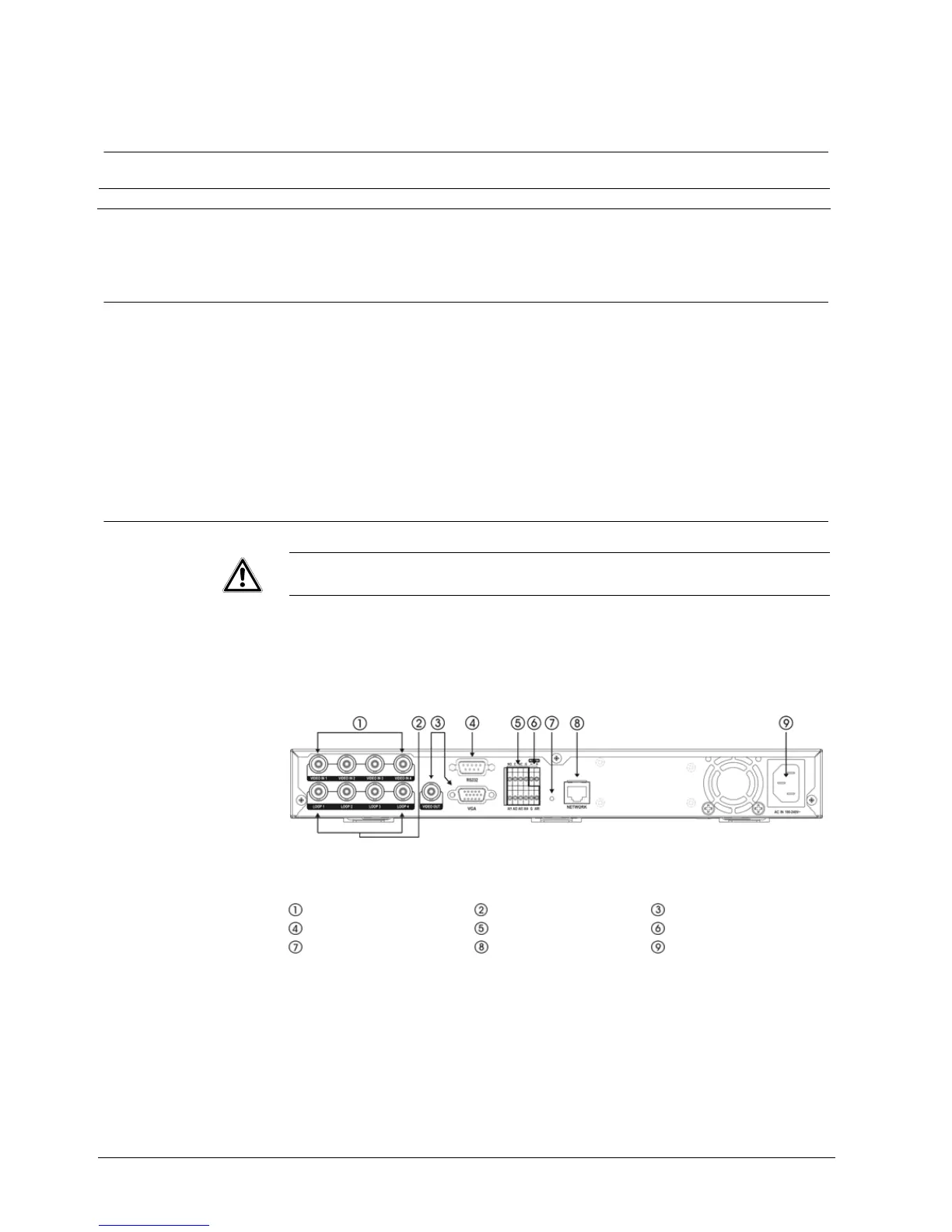

Fig. 1 Rear panel
Video input
Video loop-through
Video out
RS232 port
Alarm input/output
RS485 port
Factory reset switch
Network port
Power cord connector
Step 1:
Video In: Connect cameras (up to 4) to camera BNC inputs. If looping is required,
connect camera out to second source (second BNC).
