en Installation and connection
20

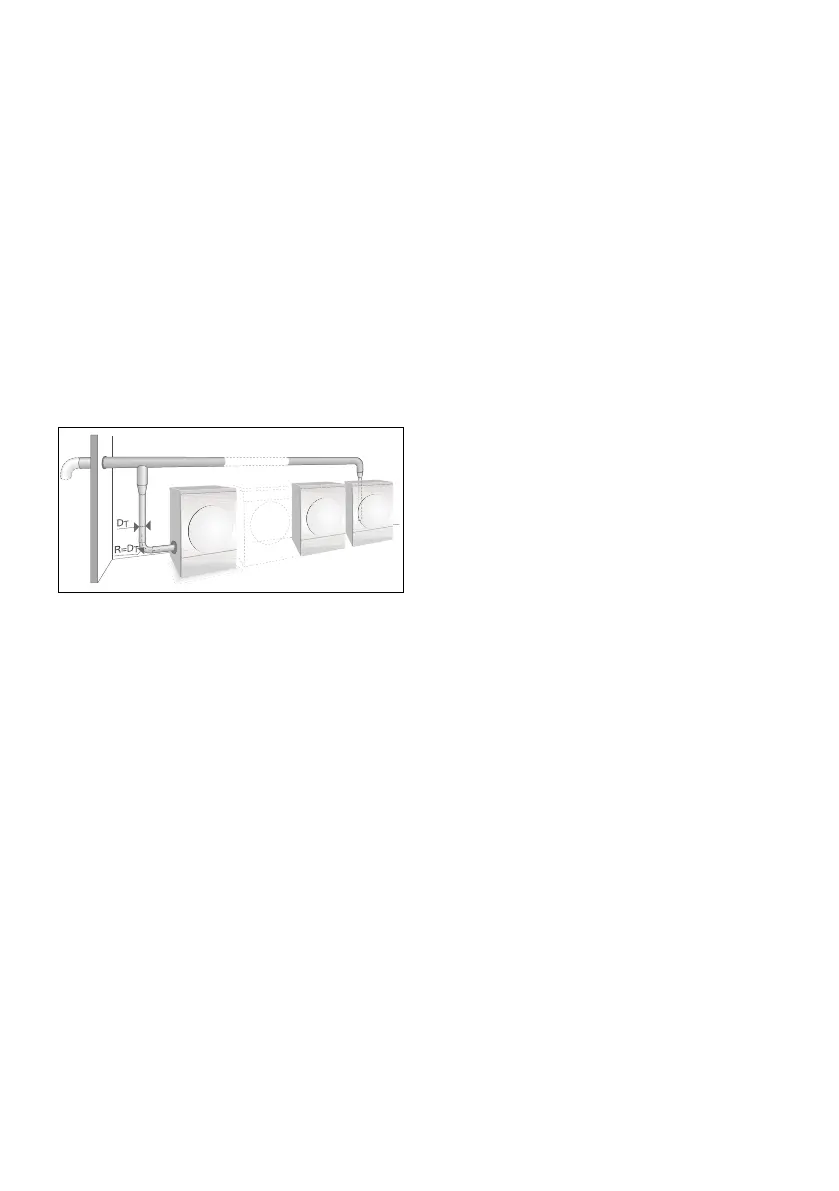

When connecting to the interception
pipe, avoid the following:
■ mutual interference between dryers
■ discharge of moisture in the washing
and drying room
■ higher pressure losses (increase in
energy consumption and time)
■ The exhaust air ducts of the
individual dryers (DT = R >=
100 mm) should already be
extended to the dimension of the
interception pipe upstream of the
drain check valves.
■ Possible backpressure (e.g. caused
by wind ingress) can be minimised
by using a 90° bend, facing down.
Optional accessories
■ Washer-dryer stack connection set:
To save space, the dryer can be
placed on top of a suitable washing
machine of the same width and
depth.
The dryer must be secured to the
washing machine using this
connection set.
Order number without pull-out
worktop: WZ20311.
■ Platform:
For easier loading and unloading,
use a platform to raise your dryer.
Transport laundry with the integrated
clothes basket integrated in the
platform's pull-out drawer.
Order number: WZ20500.
■ Exhaust air duct:
The exhaust air duct is extracted via
a hose.
Order number: WZ20180.
