The auto generator start feature will only work with generators designed to work with this feature. There is
an open/closed relay that will short circuit the positive and negative cable from a generator. The input DC
voltage can vary, but the Max current the relay can carry is 16Amp.
Battery temperature sensor (BTS)
A battery temperature sensor (BTS) option can easily be installed in the system to ensure proper charging of
the batteries based on temperature. Installing a BTS extends battery life by preventing overcharging in warm
temperatures and undercharging in cold temperatures.
To install the Battery Temperature Sensor:

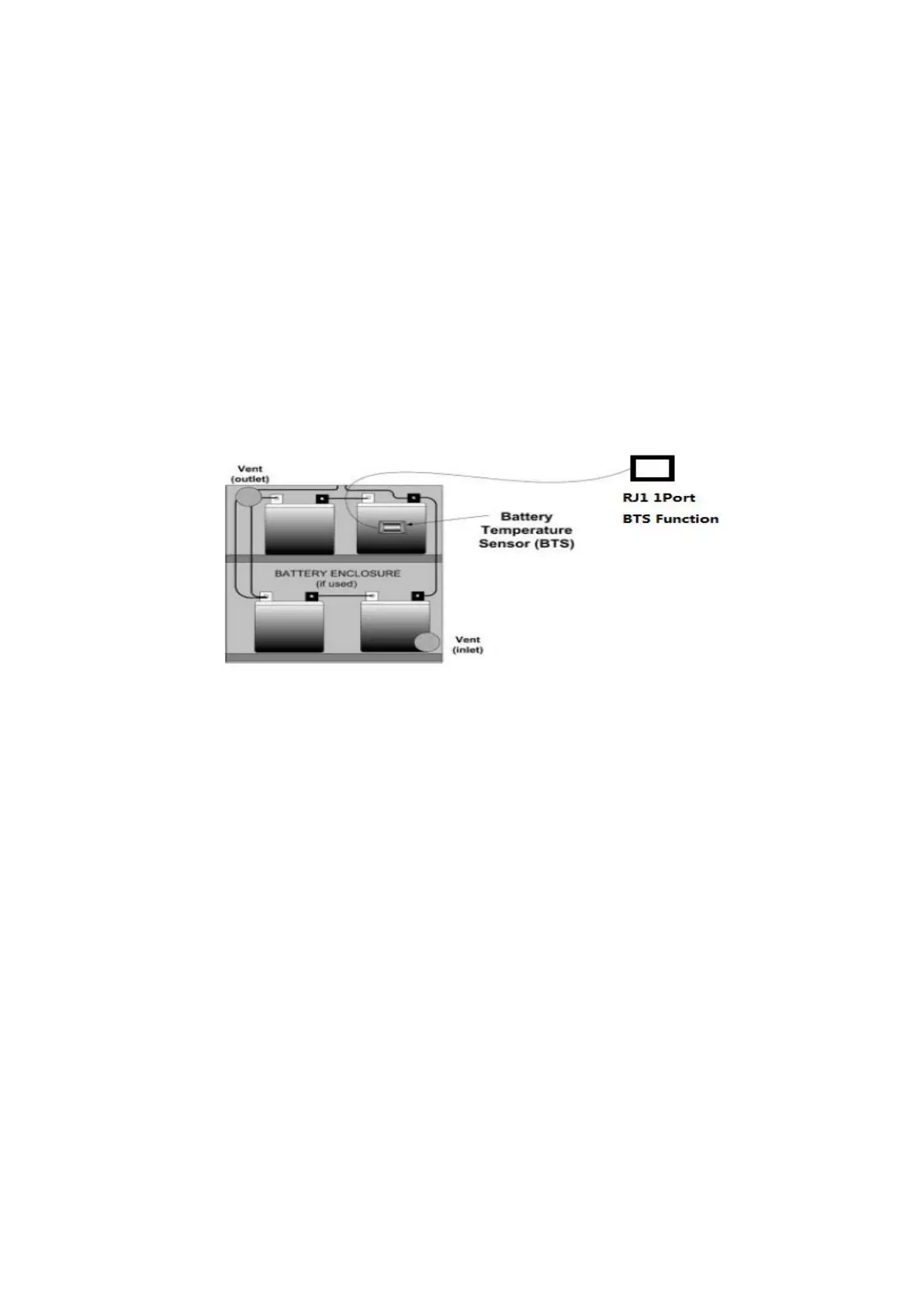

1. Run the battery temperature sensor wire in the DC conduit (if used) and route the RJ11 connector end to
the BATTERY SENSE port located on the front of the inverter.
2. Secure the sensor to one of the batteries located in the center of the battery pack.
Conformal Coating
Entire line of TPH inverters have been processed with a conformal coating on the PCB making it water, rust,
and dust resistant.
3 Installation
3-1 Location
Follow all the local regulations to install the inverter.
Please install the equipment in a location that is Dry, Clean, Cool and that has good ventilation.
Working temperature: ‐10℃‐40℃
Storage temperature: ‐40‐70℃
Relative Humidity: 0%‐95%，non-condensing
Cooling: Forced air
3-2 DC Wiring recommendation
