2.13.3 Frequency Counter
The SDG2000X provides a frequency counter which could measure
frequencies between 100mHz to 200MHz. The dual channels can still output
normally when the counter is enabled. Press Utility → Counter, to enter the
following interface.

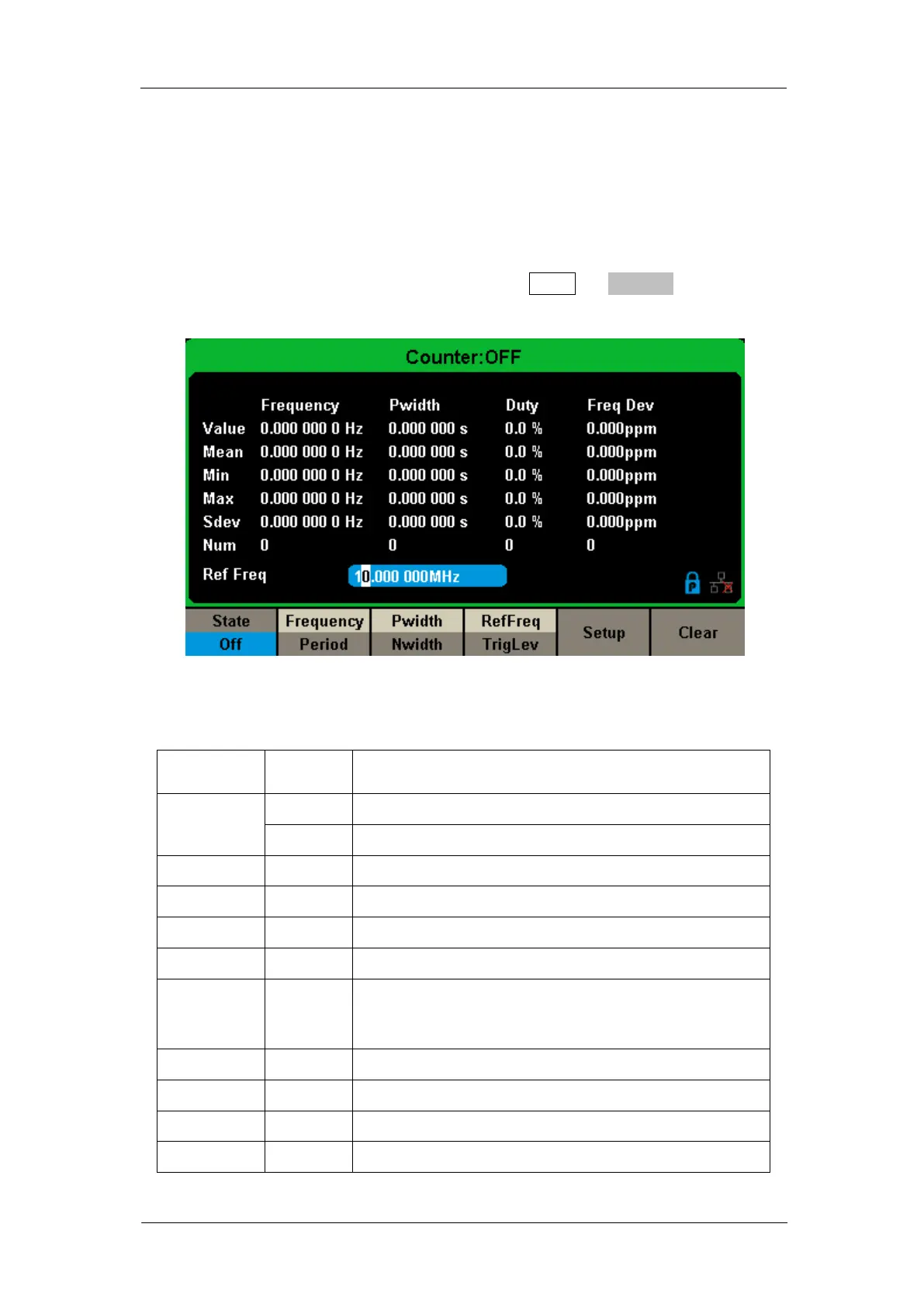

Figure 2-64 Frequency Counter Interface
Table 2-35 Menu Explanations of Frequency Counter
Function
Menu
Settings
Explanation
State
Off
Open the counter.
On
Close the counter.
Frequency
Measured frequency.
Period
Measured period.
PWidth
Measured positive width.
NWidth
Measured negative width.
RefFreq
Set the reference frequency. System will calculate the
deviation between the measured frequency and the
reference frequency automatically.
TrigLev
Set the trigger level voltage.
Duty
Measured duty.
Setup
Set the counter configuration.
Cancel
Exit the frequency counter interface.
